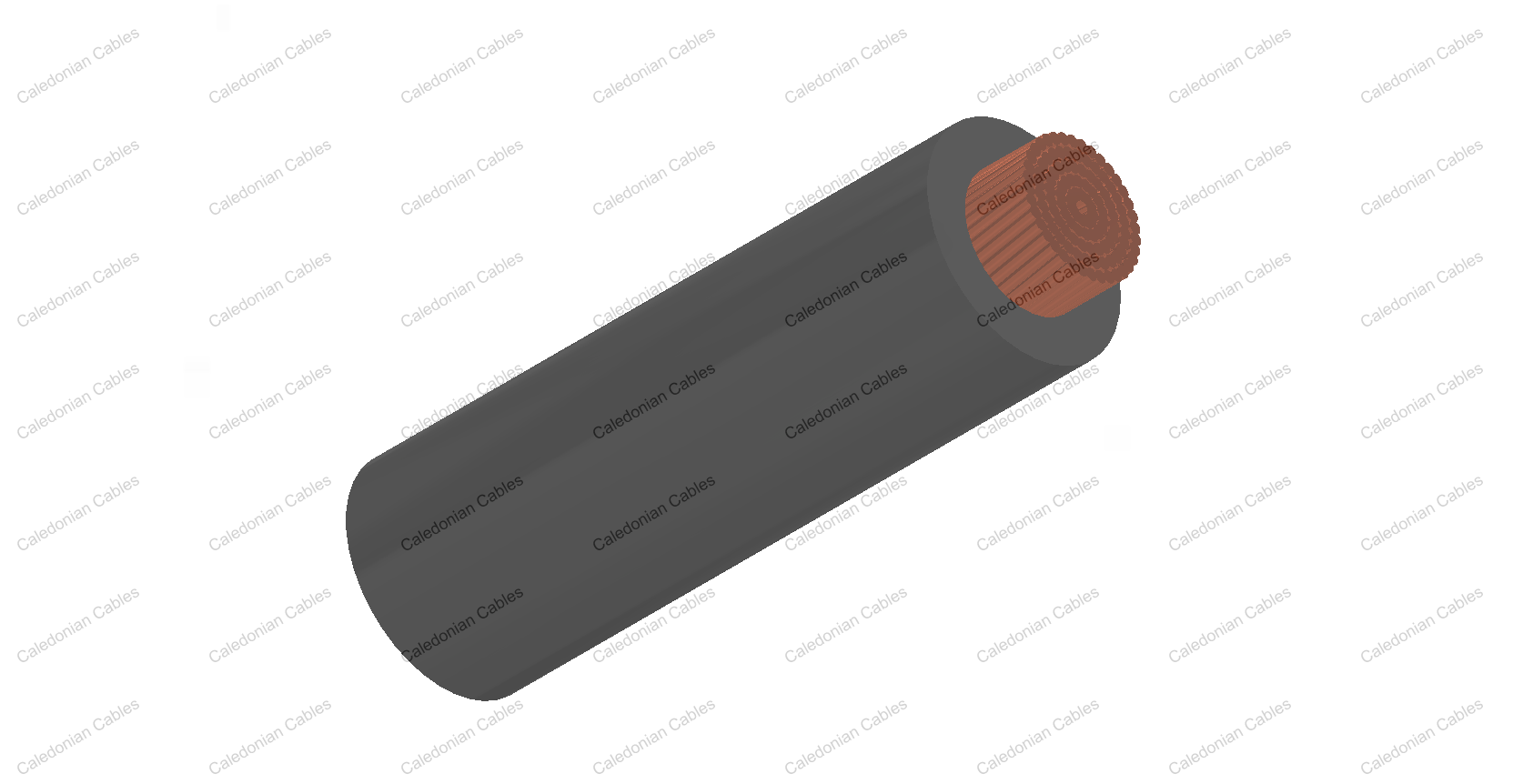

    FIREROL High Temperature Single core cables with Reinforced Insulation 3.6/6 kV

    EN 50382-2 (FRL-HT-6SURI)

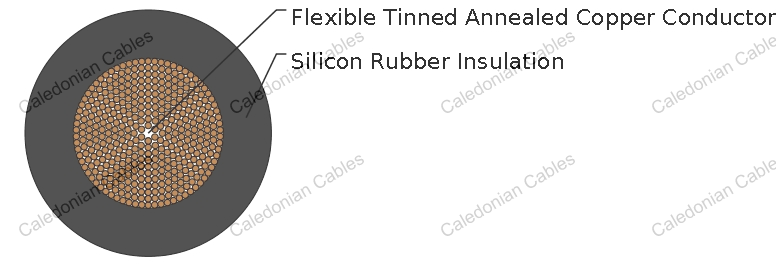

    Construction

    Conductor Extra flexible tinned annealed copper wires (red copper only for 150 °C core temperature) class 6 according to HD 383
    Insulation Silicon rubber according to EN 50382-1 (EI 112)

    Electrical & Mechanical Properties

    Nominal Voltage 3.6/6 kV
    Max. Conductor Temperature 120°C /150°C (fixed installation)
    Min. Permissible Ambient Temperature -25°C/-40°C (fixed installation)
    Bending Radius

    3 x Overall Diameter (D<12mm);

    4 x Overall Diameter (D>12mm)

    Chemical & Environmental Propertie

    EN 60684-2 No fluorine
    EN 50305; EN 60811-2-1 Resistance to mineral oil & fuel oil, acid & alkali
    EN 50305 Resistance to ozone

    Fire Performance for rolling stock application

    EN 50306-2 Hazard levels HL1, HL2, HL3
    DIN 5510-2 Protection level 1/2/3/4
    BS 6853 Interior use 1a, 1b, II; Exterior use 1a, 1b, II
    NF F 16-101 F0
    EN54454-2 R15 Interior/ R16 Exterior HL1, HL2, HL3

    Fire Performance in General

    EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) Vertical flame propogation for a single insulated wire or cable
    EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 Vertical flame spread of vertically mounted bunched wires or cables
    EN 50268-2; IEC 61034-2; NF C 32-073 ;  NF C 20-902; NF F 16 101; VDE 0472 Teil 816 Low Smoke Emission
    EN 50267-2-1; IEC 60754-1; NF C 32-074;  NF C 20-454; VDE 0472 Teil 815 Halogen Free
    EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813 Low Corrosivity (Acidity & Conductivity)
    EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853  Low Toxicity
    NF F 63 808; BS6853; NF F 16 101 Smoke index
    EN45545-2 Requirement for fire behavior of materials & components R15/R16

    FRL-HT-6SURI 3.6/6 kV

    Nominal Cross- Sectional Area Conductor Diameter (a) Min. Mean Thickness of Insulation Overall Diameter Weight Max.Conductor Resistance Min. Insulation Resistance
    Tinned Conductor Plain Conductor
    Min. Max. 20°C 20°C 20°C 150°C
    mm² mm mm mm mm kg/km Ω/km Ω/km MΩ x km MΩ x km
    50 9.2 3.0 15.2 17.8 560 0.393 0.386 340 0.70
    70 11.0 3.0 16.9 19.8 770 0.277 0.272 300 0.60
    95 12.5 3.0 18.3 21.4 970 0.210 0.206 270 0.55
    120 14.2 3.1 20.1 23.5 1200 0.164 0.161 250 0.50
    150 15.8 3.1 21.6 25.3 1480 0.132 0.129 220 0.45
    185 17.5 3.2 23.4 27.4 1800 0.108 0.106 210 0.40

    (a)= For information, indicative only
