    FIREROL High Temperature Single Core Screened & Sheathed Cables 1.8/3 kV or 3.6/6 kV

    EN 50382-2 (FRL-HT-3S-OS, FRL-HT-6S-OS)

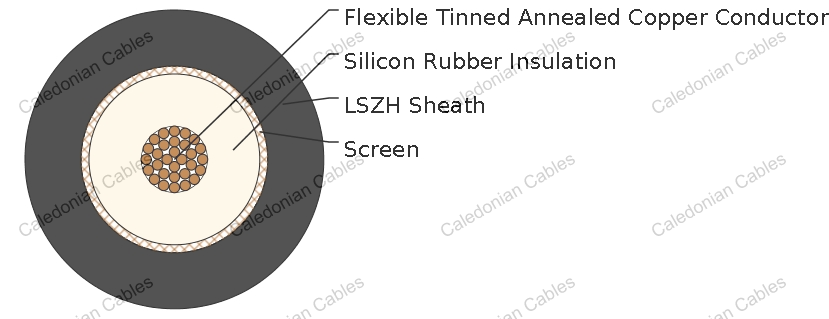

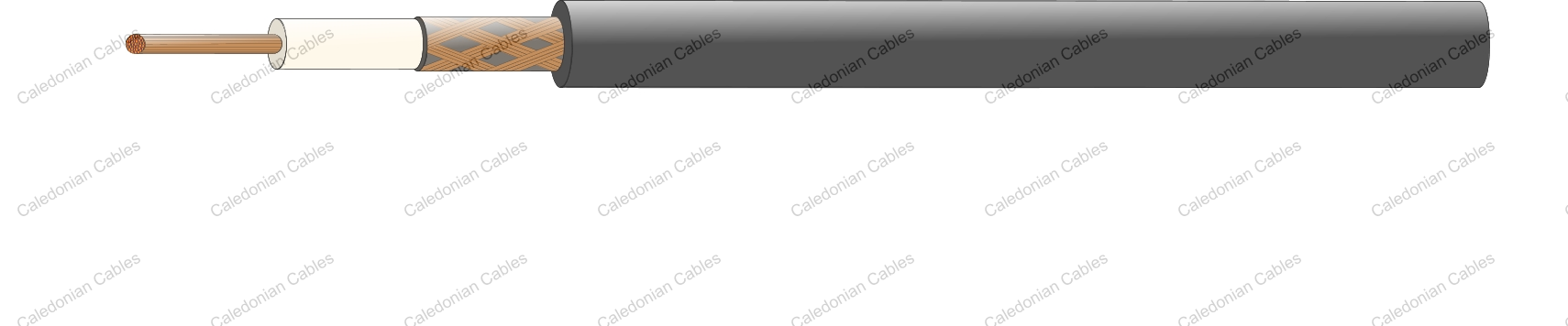

    Construction

    Conductor Flexible tinned annealed copper wires (red copper only for 150 °C core temperature) class 5 according to HD 383
    Insulation Silicon rubber according to EN 50382-1 (EI 112)
    Overal Screen Tinned annealed copper wires
    Outer Sheath LSZH elastomeric compound according to EN 50382-1 (EM 105, EM 106 or EM 107)

    Electrical & Mechanical Properties

    Nominal Voltage 1.8/3 kV or 3.6/6 kV
    Max. Conductor Temperature 120°C /150°C (fixed installation)
    Min. Permissible Ambient Temperature -25°C/-40°C (fixed installation)
    Bending Radius

    3 x Overall Diameter (D<12mm);

    4 x Overall Diameter (D>12mm)

    Chemical & Environmental Propertie

    EN 60684-2 No fluorine
    EN 50305; EN 60811-2-1 Resistance to mineral oil & fuel oil, acid & alkali
    EN 50305 Resistance to ozone

    Fire Performance for rolling stock application

    EN 50306-2 Hazard levels HL1, HL2, HL3
    DIN 5510-2 Protection level 1/2/3/4
    BS 6853 Interior use 1a, 1b, II; Exterior use 1a, 1b, II
    NF F 16-101 F0
    EN54454-2 R15 Interior/ R16 Exterior HL1, HL2, HL3

    Fire Performance in General

    EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) Vertical flame propogation for a single insulated wire or cable
    EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 Vertical flame spread of vertically mounted bunched wires or cables
    EN 50268-2; IEC 61034-2; NF C 32-073 ;  NF C 20-902; NF F 16 101; VDE 0472 Teil 816 Low Smoke Emission
    EN 50267-2-1; IEC 60754-1; NF C 32-074;  NF C 20-454; VDE 0472 Teil 815 Halogen Free
    EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813 Low Corrosivity (Acidity & Conductivity)
    EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853  Low Toxicity
    NF F 63 808; BS6853; NF F 16 101 Smoke index
    EN45545-2 Requirement for fire behavior of materials & components R15/R16

    FRL-HT-3S-OS 1.8/3 kV

    Nominal Cross-Sectional Area Conductor Diameter (a) Min. Mean Thickness of Insulation Min. Screen Wire Diameter Min. Screen Wire Diameter Overall Diameter Weight Max.Conductor Resistance Min. Insulation Resistance
    Tinned Resistance Conductor Plain Conductor
    Min. Max. 20°C 20°C 20°C 150°C
    mm² mm mm mm mm mm mm kg/km Ω/km Ω/km MΩ x km MΩ x km
    1.5 1.5 1.3 0.16 1.4 6.8 7.9 113 13.7 13.3 670 1.30
    2.5 1.95 1.3 0.16 1.4 7.2 8.4 134 8.21 7.98 570 1.10
    4 2.5 1.3 0.21 1.4 7.7 9.0 171 5.09 4.95 480 0.90
    6 3.0 1.3 0.21 1.4 8.2 9.6 205 3.39 3.30 420 0.80
    10 3.9 1.5 0.21 1.4 9.4 11.0 283 1.95 1.91 380 0.70
    16 5.0 1.5 0.26 1.4 10.5 12.2 381 1.24 1.21 310 0.60
    25 6.4 1.8 0.26 1.4 12.3 14.4 539 0.795 0.780 300 0.60
    35 7.7 1.8 0.31 1.4 13.6 15.9 682 0.565 0.554 250 0.50
    50 9.2 1.8 0.31 1.4 15.0 17.5 882 0.393 0.386 220 0.40
    70 11.0 1.8 0.31 1.5 16.8 19.7 1174 0.277 0.272 200 0.40
    95 12.5 2.2 0.31 1.5 19.0 22.2 1483 0.210 0.206 190 0.40
    120 14.2 2.2 0.31 1.6 20.8 24.3 1819 0.164 0.161 180 0.30
    150 15.8 2.2 0.31 1.6 22.3 26.1 2188 0.132 0.129 160 0.30
    185 17.5 2.4 0.31 1.7 24.5 28.6 2606 0.108 0.106 160 0.30
    240 20.1 2.4 0.31 1.8 27.1 31.7 3318 0.0817 0.0801 140 0.20
    300 22.5 2.4 0.31 1.9 29.5 34.6 4015 0.0654 0.0641 120 0.20
    400 25.8 2.6 0.31 2.0 33.2 38.9 5170 0.0495 0.0486 120 0.20

    (a)= For information, indicative only

    FRL-HT-6S-OS 3.6/6 kV

    Nominal Cross-Sectional Area Conductor Diameter (a) Min. Mean Thickness of Insulation Min. Screen Wire Diameter Min. Screen Wire Diameter Overall Diameter Weight Max.Conductor Resistance Min. Insulation Resistance
    Tinned Resistance Conductor Plain Conductor
    Min. Max. 20°C 20°C 20°C 150°C
    mm² mm mm mm mm mm mm kg/km Ω/km Ω/km MΩ x km MΩ x km
    2.5 1.95 2.6 0.16 1.4 9.9 11.6 209 8.21 7.98 870 1.70
    4 2.5 2.6 0.16 1.4 10.4 12.2 240 5.09 4.95 750 1.50
    6 3.0 2.6 0.21 1.4 10.9 12.8 291 3.39 3.30 670 1.30
    10 3.9 2.6 0.21 1.4 11.8 13.8 363 1.95 1.91 570 1.10
    16 5.0 2.6 0.21 1.4 12.8 15.0 453 1.24 1.21 480 0.90
    25 6.4 2.9 0.26 1.4 14.7 17.2 640 0.795 0.780 430 0.80
    35 7.7 2.9 0.26 1.4 15.9 18.6 770 0.565 0.554 380 0.70
    50 9.2 2.9 0.31 1.5 17.5 20.5 1012 0.393 0.386 330 0.60
    70 11.0 2.9 0.31 1.5 19.2 22.4 1307 0.277 0.272 280 0.50
    95 12.5 2.9 0.31 1.6 20.8 24.3 1586 0.210 0.206 250 0.50
    120 14.2 2.9 0.31 1.6 22.4 26.2 1916 0.164 0.161 230 0.40
    150 15.8 2.9 0.31 1.7 24.1 28.2 2309 0.132 0.129 210 0.40
    185 17.5 3.2 0.31 1.8 26.4 30.9 2750 0.108 0.106 210 0.40
    240 20.1 3.4 0.31 1.9 29.4 34.4 3420 0.0817 0.0801 190 0.30
    300 22.5 3.4 0.31 1.9 31.7 37.1 4150 0.0654 0.0641 170 0.30
    400 25.8 3.4 0.31 2.0 35.0 40.9 5200 0.0495 0.0486 150 0.30

    (a)= For information, indicative only
