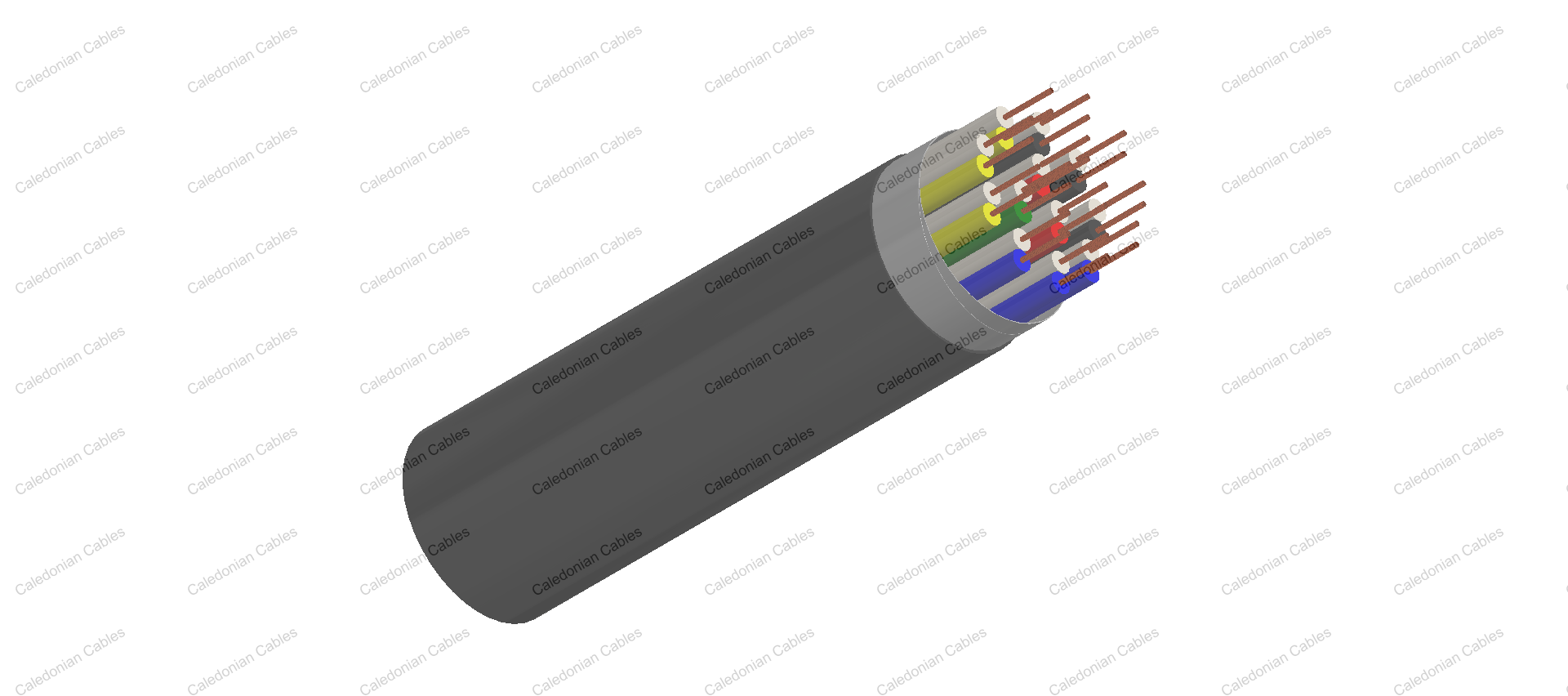

    ZUG/ ZUT/ SUG Indoor Equipment Cables

    • ZUG/ ZUT/ SUG Indoor Equipment Cables
    • ZUG/ ZUT/ SUG Indoor Equipment Cables

    Application

    The cables are used as cabling for the relays and electronic equipments in the Traffic Control Center and Trackside Equipment Shelter. The cables are suitable for indoor interconnection of railway network equipments.

    Standard

    • SNCF CT 455

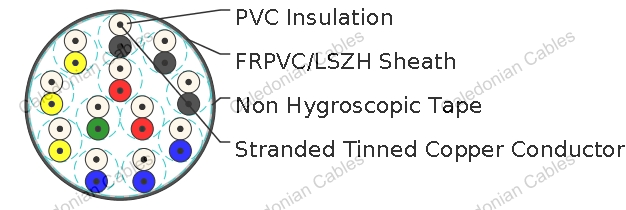

    Cable Construction

    • Electrical Characteristics at 20℃Conductors: Conductors: Class 5 stranded tinned copper, 1 mm or 0.38 mm cross section.
    • Insulation: Coloured PVC.
    • Cabling Element: Pairs (for ZUG/ZUT)/Cores (for SUG).
    • Core Wrapping (optional): Plastic tape(s) with overlapping.
    • Screen (optional): Tinned copper braid for electrostatic protection (only for ZUT type).
    • Sheath: Black FRPVC compound. LSZH option can be offered upon request.
    No of Strands/ Strand Diameter No/mm 12/0.2 32/0.2
    Nominal Cross Section Area mm 0.38 1
    Maximum Conductor Resistance (DC) Ω/km 52.5 20.1
    Operating Voltage V 450/750 450/750

    Mechanical and Thermal Properties

    • Minimum Bending Radius: 4×OD (static); 8×OD (dynamic)
    • Operating Temperature: -15℃ to +70℃

    Dimensions and Weight

    ZUG Cables

    Cable Code Number of Pairs Nominal Sheath Thickness
    mm
    Nominal Overall Diameter
    mm
    Nominal Weight
    kg/km
    12/0.2mm Conductor, 1.4mm Insulated Wire
    RS/ZUG-075-YY-28P0.38S 28 0.7 15.7 310
    32/0.2mm Conductor, 2.09mm Insulated Wire
    RS/ZUG-075-YY-1P1S 1 0.7 7.0 59
    RS/ZUG-075-YY-3P1S 3 0.7 9.9 108
    RS/ZUG-075-YY-6P1S 6 0.7 12.4 184
    RS/ZUG-075-YY-12P1S 12 0.7 15.7 335

    SUG Cables

    Cable Code Number of Conductors Nominal Sheath Thickness
    mm
    Nominal Overall Diameter
    mm
    Nominal Weight
    kg/km
    32/0.2mm Conductor, 2.09mm Insulated Wire
    RS/SUG-075-YY-3C1S 3 0.7 8 73

    ZUT Cables

    Cable Code Number of Pairs Nominal Sheath Thickness
    mm
    Nominal Overall Diameter
    mm
    Nominal Weight
    kg/km
    32/0.2mm Conductor, 2.09mm Insulated Wire
    RS/ZUT-075-YCY-2P1S 2 0.7 9.5 122
    RS/ZUT-075-YCY-6P1S 6 0.7 13.5 276
    RS/ZUT-075-YCY-12P1S 12 0.7 17.5 445
