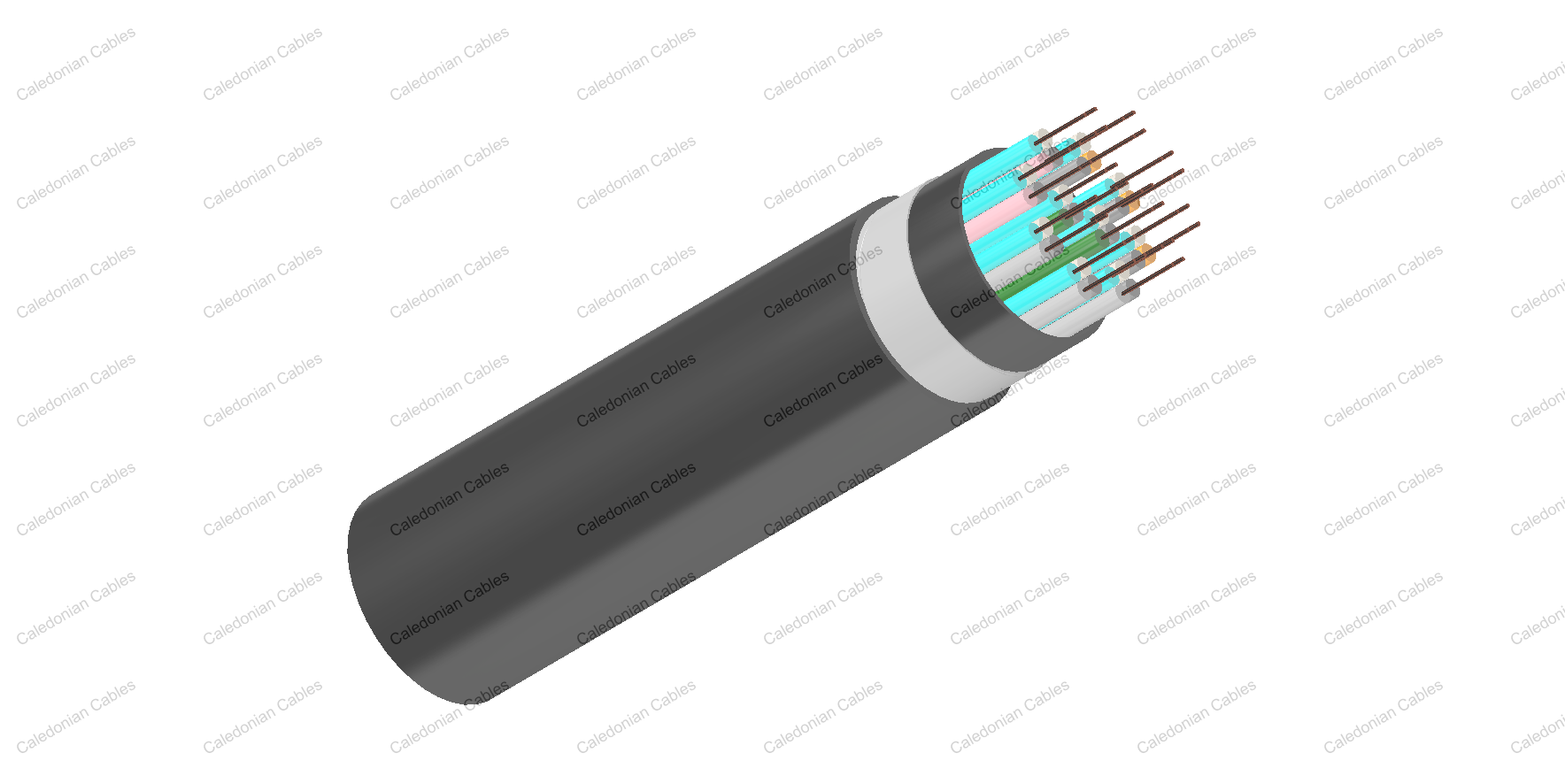

    SW-CLT Switching Centre Cables

    • SW-CLT Switching Centre Cables
    • SW-CLT Switching Centre Cables

    Application

    The cables are used as block cables for railway. The cables are suitable for connection between local switching centre and the trackside and signalling equipments.

    Standard

    • CFF: I-EB-SK 3001.82.1000

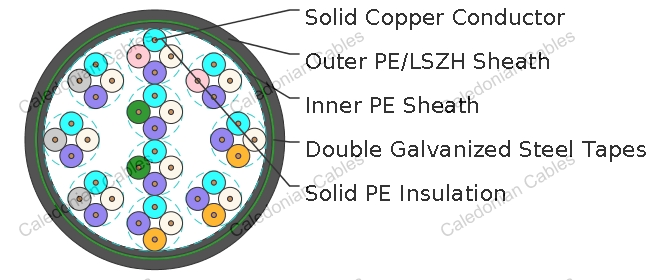

    Cable Construction

    • Electrical Characteristics at 20℃Conductors: Class 1 solid copper, 1.0/1.5/2.2mm nominal diameter
    • Insulation: Solid polyethylene.
    • Cabling Element: Four conductors are twisted together to form a quad.
    • Inner Sheath: PE sheath.
    • Armour: Double galvanized steel tapes of 0.15mm.
    • Outer Sheath: PE/LSZH sheath.
    • Optional:
    • Unarmoured Cable: The cables offered without galvanized steel tapes (SW).
    • Traction Armoured Cable: The cables offered with galvanized steel fl at wire armour with or without protection sheath (SW-F/FT).
    • Halogenfree Sheathed Cable: The cables offered with LSZH sheath according to IEC 60332-3C (SW-CLN/FN).
    Nominal Conductor Diameter mm 1.0 1.5 2.2
    Maximum Conductor Resistance (DC) Ω/km 47.0 20.9 10.0
    Minimum Insulation Resistance @500 V DC (3mins) MΩ.km 10000 10000 10000
    Maximum Mutual Capacitance @800Hz nF/km 42 52 60
    Maximum Capacitance Unbalance
    In quad pF/km 400 400 400
    Between quads pF/km 400 400 400
    Real-ground pF/km 650 650 650
    Operating Voltage AC/DC V 500/80

    Mechanical and Thermal Properties

    • Minimum Bending Radius: 10×OD
    • Temperature Range: -30℃ to +60℃ (during operation); -10℃ +60℃ (during installation)

    Dimensions and Weight

    Cable Code No. of
    Quads
    Nominal Sheath Thickness
    mm
    Nominal Overall
    Diameter
    mm
    Nominal Weight
    kg/km
    Inner Outer
    1.0mm Conductor, 1.8mm Insulated Wire
    RS/SW-CLT-2Y2YB2Y-1Q1 1 1.0 1.5 12.7 161
    RS/SW-CLT-2Y2YB2Y-2Q1 2 1.0 1.5 17.5 335
    RS/SW-CLT-2Y2YB2Y-3Q1 3 1.0 1.7 18.3 390
    RS/SW-CLT-2Y2YB2Y-4Q1 4 1.0 1.7 20.4 455
    RS/SW-CLT-2Y2YB2Y-5Q1 5 1.0 1.7 21.7 543
    RS/SW-CLT-2Y2YB2Y-7Q1 7 1.2 1.8 23.3 640
    RS/SW-CLT-2Y2YB2Y-10Q1 10 1.2 2.0 28.4 896
    RS/SW-CLT-2Y2YB2Y-15Q1 15 1.2 2.2 33.0 1260
    RS/SW-CLT-2Y2YB2Y-20Q1 20 1.2 2.3 37.1 1590
    RS/SW-CLT-2Y2YB2Y-25Q1 25 1.2 2.4 41.7 1960
    RS/SW-CLT-2Y2YB2Y-30Q1 30 1.3 2.5 43.2 2130
    1.5mm Conductor, 2.8mm Insulated Wire
    RS/SW-CLT-2Y2YB2Y-1Q1.5 1 1.0 1.5 15.1 240
    RS/SW-CLT-2Y2YB2Y-2Q1.5 2 1.0 1.5 23.6 491
    RS/SW-CLT-2Y2YB2Y-3Q1.5 3 1.0 1.7 24.4 585
    RS/SW-CLT-2Y2YB2Y-4Q1.5 4 1.0 1.7 27.5 684
    RS/SW-CLT-2Y2YB2Y-5Q1.5 5 1.0 1.7 30.5 793
    RS/SW-CLT-2Y2YB2Y-7Q1.5 7 1.2 1.8 32.9 1030
    RS/SW-CLT-2Y2YB2Y-10Q1.5 10 1.2 2.0 42.5 1460
    RS/SW-CLT-2Y2YB2Y-15Q1.5 15 1.2 2.2 49.2 2060
    RS/SW-CLT-2Y2YB2Y-20Q1.5 20 1.2 2.3 57.0 2600
    RS/SW-CLT-2Y2YB2Y-25Q1.5 25 1.2 2.4 62.8 3300
    RS/SW-CLT-2Y2YB2Y-30Q1.5 30 1.3 2.5 64.4 3660
    2.2mm Conductor, 3.8mm Insulated Wire
    RS/SW-CLT-2Y2YB2Y-1Q2.2 1 1.0 1.5 13.1 346
    RS/SW-CLT-2Y2YB2Y-2Q2.2 2 1.0 1.5 20.4 573
    RS/SW-CLT-2Y2YB2Y-3Q2.2 3 1.0 1.7 21.4 934
    RS/SW-CLT-2Y2YB2Y-4Q2.2 4 1.0 1.7 23.1 1329
    RS/SW-CLT-2Y2YB2Y-5Q2.2 5 1.0 1.7 25.5 1380
    RS/SW-CLT-2Y2YB2Y-7Q2.2 7 1.2 1.8 27.4 1730
    RS/SW-CLT-2Y2YB2Y-10Q2.2 10 1.2 2.0 33.7 2560
    RS/SW-CLT-2Y2YB2Y-15Q2.2 15 1.2 2.2 39.2 3630
    RS/SW-CLT-2Y2YB2Y-20Q2.2 20 1.2 2.3 43.4 4780
    RS/SW-CLT-2Y2YB2Y-25Q2.2 25 1.2 2.4 50.1 5850
    RS/SW-CLT-2Y2YB2Y-30Q2.2 30 1.3 2.5 51.8 6580
