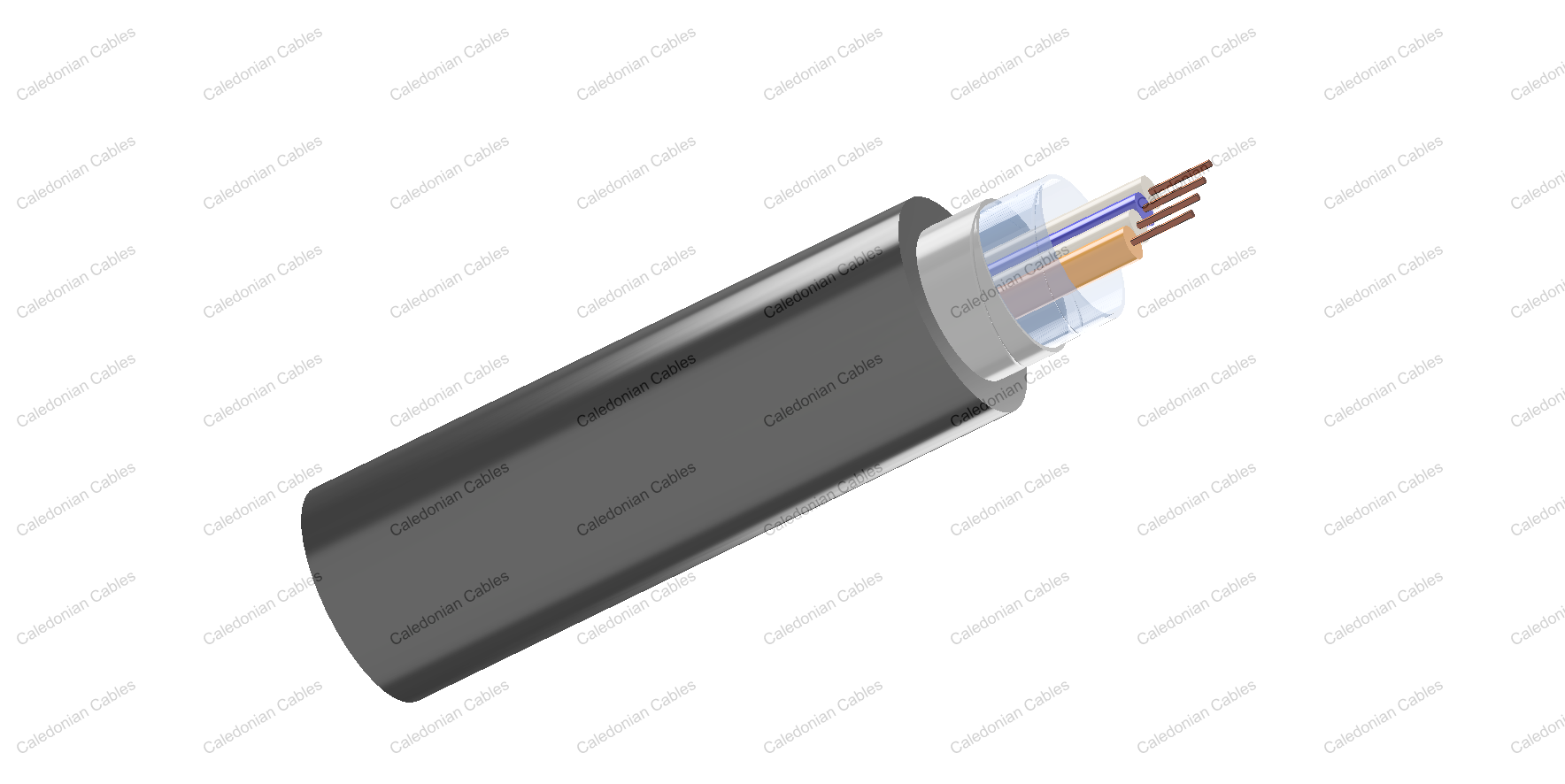

    RT/ZHLS, A-2Y(L)2Y External Telephone Cables to NR/PS/TEL/00015

    • RT/ZHLS, A-2Y(L)2Y External Telephone Cables to NR/PS/TEL/00015
    • RT/ZHLS, A-2Y(L)2Y External Telephone Cables to NR/PS/TEL/00015
    • RT/ZHLS, A-2Y(L)2Y External Telephone Cables to NR/PS/TEL/00015

    Application

    The cables are designed primarily for trackside railway installation in non electrifi ed area. For direct burial application, brass tape armoured or Zetabon type corrugated steel tape armoured can be offered against rodent attack.

    Standard

    • NR/PS/TEL/00015 (formerly RT/E/PS/00015 or GK/RT 0315)
    • TS0886/BR1822
    • BR892

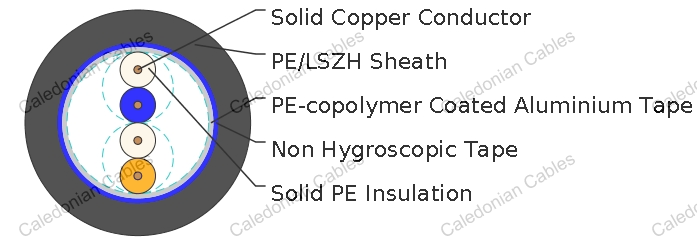

    Cable Construction

    • OptionalConductors: Solid plain copper conductor, 0.63 or 0.9 mm nominal diameter.
    • Insulation: Solid polyethylene to BS 6234.
    • Cabling Element: Two insulated conductors are twisted together to form a pair.
    • Stranding: Pairs are helically stranded in 10 pair units.
    • Core Wrapping: Plastic tape(s) with overlapping.
    • Moisture Barrier: One laminated sheath made of aluminium tape (0.15mm) coated with PE-Copolymer on at least one side is applied with longitudinally overlap.
    • Outer Sheath: Polyethylene to BS 6234. LSZH compound option can be offered upon request.
    • Jelly Filled Cables: The cable core interstices are fi lled with petroleum jelly to avoid longitudinal water penetration within the cable. The water resistant filling compound is applied to the air space between non-hygroscopic tape and shield, shield and sheath within the cable core.
    • Armoured Cables: Corrugated steel tape armour coated on both sides with copolymer can be applied over an intermediate sheath. The steel tape thickness is 0.145mm. Brass tape armour can be offered as an option.

    Electrical Characteristics at 20℃

    Nominal Conductor Diameter mm 0.63 0.9
    Maximum Conductor Resistance Ω/km 60.0 30.0
    Minimum Insulation Resistance @500 V DC (1min) MΩ.km 1500 1500
    Maximum Conductor Capacitance @1000Hz (AC)
    Maximum Average Value
    For 20 pairs or less nF/km 70 79
    More than 20 pairs nF/km 67 75
    Maximum Individual Value 99% of pairs
    Up to 20 pairs nF/km 79.0 85.0
    More than 20 pairs nF/km 75.0 81.0
    Maximum Capacitance Unbalance @1000Hz pair to pair (99% of pairs)
    For 2 pairs (1 quad) pF/500m 800 800
    All other sizes pF/500m 275 275
    Dielectric Strength, conductor to screen (DC voltage 2mins) V 2000 2000
    Maximum Average Attenuation
    @1.0KHz dB/km 1.40 0.95
    @2.4KHz dB/km 2.15 1.46
    @1.024MHz dB/km 18.70 14.6
    Minimum Average Near-end Crosstalk
    @1.0KHz dB/km 70 70
    @2.4KHz dB/km 65 65
    @1.024MHz
    Within Units dB/km 40 40
    Between Units dB/km 47 47
    High Voltage Breakdown Test
    DC for 2mins V 2000 2000
    AC for 2mins V 1333 1333

    Mechanical and Thermal Properties

    • Minimum Bending Radius: 7.5×OD (unarmoured); 10×OD (armoured)
    • Temperature Range: -40℃ to +70℃ (during operation); -10℃ +60℃ (during installation)

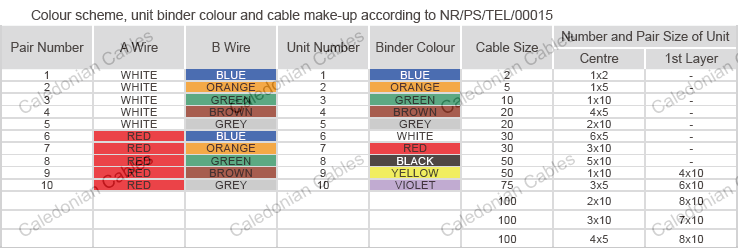

    Core Identification

    Dimensions and Weight

    A-2Y(L)2Y n×2×0.63/0.9

    Cable Code Number of Pairs
    (n)
    Nominal Sheath
    Thickness
    mm
    Maximum Overall
    Diameter
    mm
    Nominal Weight
    kg/km
    0.63mm Conductor, 1.15mm Insulated Wire
    RS/RT/ZHLS-2Y(L)2Y-2P0.63 2 2.7 12.3 103
    RS/RT/ZHLS-2Y(L)2Y-5P0.63 5 2.7 13.8 155
    RS/RT/ZHLS-2Y(L)2Y-10P0.63 10 2.7 15.6 212
    RS/RT/ZHLS-2Y(L)2Y-20P0.63 20 2.7 18.1 309
    RS/RT/ZHLS-2Y(L)2Y-30P0.63 30 2.7 20.4 403
    RS/RT/ZHLS-2Y(L)2Y-50P0.63 50 2.7 24.2 574
    RS/RT/ZHLS-2Y(L)2Y-70P0.63 75 2.7 28.2 779
    RS/RT/ZHLS-2Y(L)2Y-100P0.63 100 2.7 31.0 974
    0.9mm Conductor, 1.5mm Insulated Wire
    RS/RT/ZHLS-2Y(L)2Y-2P0.9 2 2.7 13.3 131
    RS/RT/ZHLS-2Y(L)2Y-5P0.9 5 2.7 15.6 208
    RS/RT/ZHLS-2Y(L)2Y-10P0.9 10 2.7 18.1 305
    RS/RT/ZHLS-2Y(L)2Y-20P0.9 20 2.7 21.9 477
    RS/RT/ZHLS-2Y(L)2Y-30P0.9 30 2.7 25.2 639
    RS/RT/ZHLS-2Y(L)2Y-50P0.9 50 2.7 30.0 951
    RS/RT/ZHLS-2Y(L)2Y-70P0.9 75 2.7 35.8 1325
    RS/RT/ZHLS-2Y(L)2Y-100P0.9 100 2.7 39.1 1688

    A-2Y(F)(L)2YB2Y n×2×0.63/0.9 Jelly Filled & Armoured Cables

    Cable Code Number of Pairs
    (n)
    Nominal Sheath
    Thickness
    mm
    Maximum Overall
    Diameter
    mm
    Nominal Weight
    kg/km
    Inner Outer
    0.63mm Conductor, 1.15mm Insulated Wire
    RS/RT/ZHLS-2Y(F)(L)2YB2Y-2P0.63 2 1.6 1.6 18.0 222
    RS/RT/ZHLS-2Y(F)(L)2YB2Y-5P0.63 5 1.6 1.6 19.5 296
    RS/RT/ZHLS-2Y(F)(L)2YB2Y-10P0.63 10 1.6 1.6 20.3 383
    RS/RT/ZHLS-2Y(F)(L)2YB2Y-20P0.63 20 1.6 1.6 23.8 504
    RS/RT/ZHLS-2Y(F)(L)2YB2Y-30P0.63 30 1.6 1.6 26.1 606
    RS/RT/ZHLS-2Y(F)(L)2YB2Y-50P0.63 50 1.6 1.6 29.9 903
    RS/RT/ZHLS-2Y(F)(L)2YB2Y-70P0.63 75 1.6 1.6 33.9 1202
    RS/RT/ZHLS-2Y(F)(L)2YB2Y-100P0.63 100 1.6 1.6 36.7 1463
    0.9mm Conductor, 1.5mm Insulated Wire
    RS/RT/ZHLS-2Y(F)(L)2YB2Y-2P0.9 2 1.6 1.6 19.0 250
    RS/RT/ZHLS-2Y(F)(L)2YB2Y-5P0.9 5 1.6 1.6 21.3 370
    RS/RT/ZHLS-2Y(F)(L)2YB2Y-10P0.9 10 1.6 1.6 23.8 508
    RS/RT/ZHLS-2Y(F)(L)2YB2Y-20P0.9 20 1.6 1.6 27.6 782
    RS/RT/ZHLS-2Y(F)(L)2YB2Y-30P0.9 30 1.6 1.6 30.9 1000
    RS/RT/ZHLS-2Y(F)(L)2YB2Y-50P0.9 50 1.6 1.6 35.7 1402
    RS/RT/ZHLS-2Y(F)(L)2YB2Y-70P0.9 75 1.6 1.6 41.5 2055
    RS/RT/ZHLS-2Y(F)(L)2YB2Y-100P0.9 100 1.6 1.6 44.8 2550
