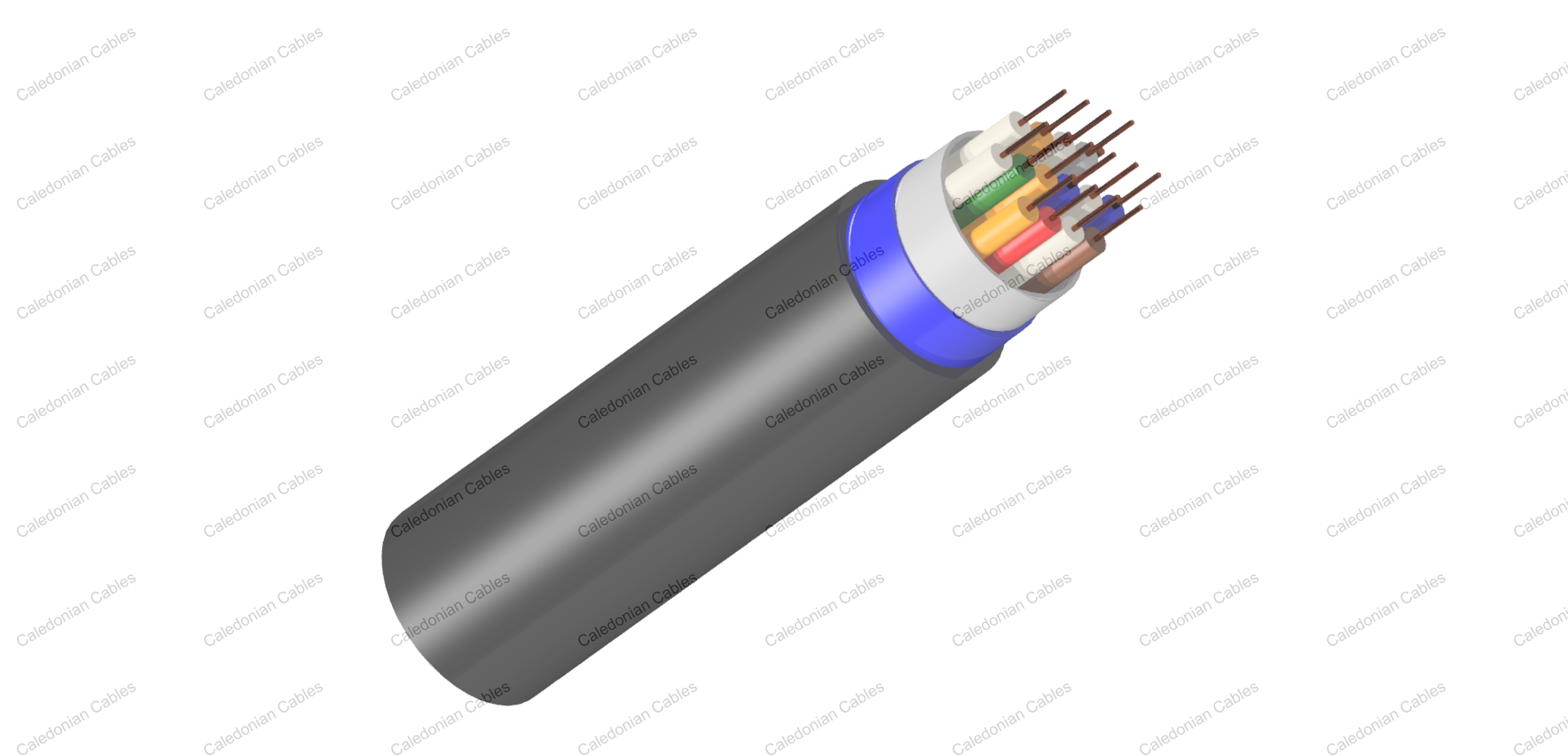

    K24 LSZH Subway Signalling Cables

    • K24 LSZH Subway Signalling Cables
    • K24 LSZH Subway Signalling Cables

    Application

    The cables are designed for remote control and teletransmission in underground railway networks. The cables can be laid in channel, cable tray, or on hook supports, along suburban railway lines electrifi ed at maximum 1500V DC.

    Standard

    • AFNOR NF F 55-624

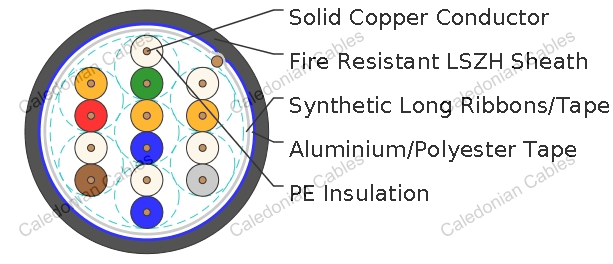

    Cable Construction

    • Electrical Characteristics at 20℃Conductors: Solid copper conductor, 0.5/0.6/0.9 mm nominal diameter.
    • Insulation: Polyethylene insulation.
    • Cabling Element: Each two conductors are twisted together to form a pair.
    • Stranding: For cables less than 15 pairs, pairs are helically stranded in concentric layers to form the cable core. For cables from 21 to 112 pairs, pairs are stranded in concentric layers or bundles to form the cables core.
    • Core Wrapping: One or more synthetic long ribbons or tapes are arranged on the cable core.
    • Screen: Aluminium/Polyester tape.
    • Drain Wire: A tinned copper drain wire, 0.5mm nominal diameter.
    • Sheath: Fire retardant LSZH.
    • Optional:Armoured Cables: For armoured cable, one or more tape(s) is (are) helically applied with overlap on the screen to form a bedding, and double steel tapes armour with a halogen-free fi re retardant outer sheath are applied on the bedding.
    Nominal Conductor Diameter mm 0.5 0.6 0.9
    Minimum Insulation Resistance MΩ.km 5000 5000 5000
    Maximum Operating Voltage V 200 200 400
    Maximum Permissible Current A 0.25 0.35 0.80

    Mechanical and Thermal Properties

    • Minimum Bending Radius: 7.5×OD (unarmoured); 10×OD (armoured)
    • Temperature Range: -40℃ to +60℃ (during operation); -20℃ to +50℃ (during installation)

    Dimensions and Weight

    Unarmoured K24 Cables A-2Y(L)H n×2×0.5/0.6/0.9

    Cable Code Number of Pairs
    (n)
    Nominal Sheath
    Thickness
    mm
    Nominal Overall
    Diameter
    mm
    Nominal Weight
    kg/km
    0.5mm Conductor, 0.9mm Insulated Wire
    RS/K24-2Y(L)H-2P0.5 2 1.0 6.0 55
    RS/K24-2Y(L)H-3P0.5 3 1.0 6.5 65
    RS/K24-2Y(L)H-5P0.5 5 1.0 7.0 80
    RS/K24-2Y(L)H-7P0.5 7 1.0 8.0 95
    RS/K24-2Y(L)H-10P0.5 10 1.0 9.0 120
    RS/K24-2Y(L)H-15P0.5 15 1.2 10.5 150
    RS/K24-2Y(L)H-21P0.5 21 1.2 12.5 185
    0.6mm Conductor, 0.96mm Insulated Wire
    RS/K24-2Y(L)H-2P0.6 2 1.0 6.5 65
    RS/K24-2Y(L)H-3P0.6 3 1.0 7.0 70
    RS/K24-2Y(L)H-5P0.6 5 1.0 8.0 90
    RS/K24-2Y(L)H-7P0.6 7 1.0 8.5 110
    RS/K24-2Y(L)H-10P0.6 10 1.2 10.0 140
    RS/K24-2Y(L)H-15P0.6 15 1.2 11.5 175
    RS/K24-2Y(L)H-21P0.6 21 1.2 13.5 225
    0.9mm Conductor, 1.5mm Insulated Wire
    RS/K24-2Y(L)H-2P0.9 2 1.0 8.5 95
    RS/K24-2Y(L)H-3P0.9 3 1.0 9.0 110
    RS/K24-2Y(L)H-5P0.9 5 1.0 10.5 150
    RS/K24-2Y(L)H-7P0.9 7 1.2 12.0 185
    RS/K24-2Y(L)H-10P0.9 10 1.2 13.5 245
    RS/K24-2Y(L)H-15P0.9 15 1.4 15.0 340
    RS/K24-2Y(L)H-21P0.9 21 1.4 19.0 435

    Armoured K24 Cables A-2Y(L)HBH n×2×0.5/0.6/0.9

    Cable Code Number of Pairs
    (n)
    Nominal Sheath Thickness
    mm
    Nominal Overall
    Diameter
    mm
    Nominal Weight
    kg/km
    Inner Outer
    RS/K24-2Y(L)HBH-2P0.5 2 1.0 1.0 10.0 195
    RS/K24-2Y(L)HBH-3P0.5 3 1.0 1.0 10.5 205
    RS/K24-2Y(L)HBH-5P0.5 5 1.0 1.0 11.0 230
    RS/K24-2Y(L)HBH-7P0.5 7 1.0 1.0 12.0 255
    RS/K24-2Y(L)HBH-10P0.5 10 1.0 1.0 13.0 295
    RS/K24-2Y(L)HBH-15P0.5 15 1.0 1.2 14.5 345
    RS/K24-2Y(L)HBH-21P0.5 21 1.0 1.2 16.5 400
    0.6mm Conductor, 0.96mm Insulated Wire
    RS/K24-2Y(L)HBH-2P0.6 2 1.0 1.0 10.5 200
    RS/K24-2Y(L)HBH-3P0.6 3 1.0 1.0 11.0 210
    RS/K24-2Y(L)HBH-5P0.6 5 1.0 1.0 12.0 245
    RS/K24-2Y(L)HBH-7P0.6 7 1.0 1.0 12.5 285
    RS/K24-2Y(L)HBH-10P0.6 10 1.0 1.2 14.0 330
    RS/K24-2Y(L)HBH-15P0.6 15 1.0 1.2 15.5 385
    RS/K24-2Y(L)HBH-21P0.6 21 1.0 1.2 18.0 450
    0.9mm Conductor, 1.5mm Insulated Wire
    RS/K24-2Y(L)HBH-2P0.9 2 1.0 1.0 12.5 260
    RS/K24-2Y(L)HBH-3P0.9 3 1.0 1.0 13.5 285
    RS/K24-2Y(L)HBH-5P0.9 5 1.0 1.0 14.5 345
    RS/K24-2Y(L)HBH-7P0.9 7 1.0 1.2 16.0 395
    RS/K24-2Y(L)HBH-10P0.9 10 1.0 1.2 18.0 485
    RS/K24-2Y(L)HBH-15P0.9 15 1.0 1.4 19.5 610
    RS/K24-2Y(L)HBH-21P0.9 21 1.0 1.4 24.0 735
