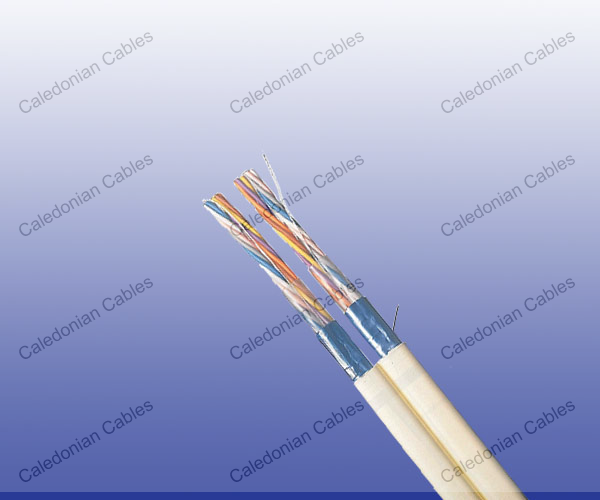

    K20 & L120 LSZH Armoured F/FTP Cat6 Cables

    Application

    The cables are designed for high speed data transmissions, and are suitable for installations in cable trays or on hooks.

    Standard

    • RATP CAT6-K20 (for K20 cable)
    • FRANCE TELECOM S31-10/20 & NF C 93.531-6/7 (for L120 cable)

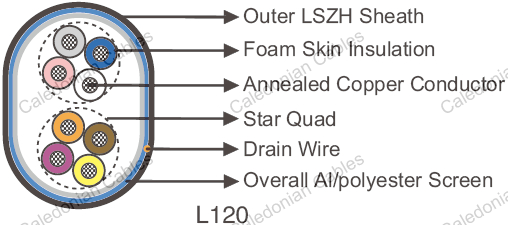

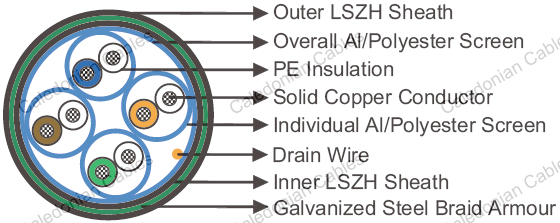

    Cable Construction

    • Electrical Characteristics at 20℃Conductors: Class 1 AWG23 solid copper conductor (for K20 cable); 0.6mm annealed copper conductor (for L120 cable).
    • Insulation: Solid polyethylene (for K20 cable); Foam skin (cellular PE + solid PE) (for L120 cable).
    • Cabling Element: Two conductors are twisted together to form a pair (for K20 cable); Four conductors are twisted together to form a quad (for L120 cable).
    • Core Wrapping (for L120 cable): Non-hygroscopic plastic tape with overlapping.
    • Individual Screen (for K20 cable): Alu/polyester shield on each pair.
    • Overall Screen: Alu/polyester shield.
    • Drain Wire: Tinned copper drain wire, 0.5mm nominal diameter.
    • Inner Sheath (for K20 cable): LSZH.
    • Armour (for K20 cable): Galvanized steel braid armour.
    • Outer Sheath: LSZH.
    • Optional

    • Armoured L120 Cables: Tinned copper braid armoured cables can be offered upon request.
    Nominal Conductor Diameter mm 0.56 (K20) 0.6 (L120)
    AWG   23 23
    Maximum Conductor Resistance Ω/km 146.4 133.2
    Minimum Insulation Resistance @500 V DC MΩ/km 500 5000
    Characteristics Impedance @100MHz Ω 100 120+15
    Maximum Capacitance Unbalance
    Real/earth pF/km 1600 300
    Maximum Average Attenuation
    @1MHz dB/100m 2.0 2.0
    @4MHz dB/100m 3.8 3.8
    @10MHz dB/100m 6.0 6.0
    @16MHz dB/100m 7.6 7.6
    @25MHz dB/100m 9.5 9.5
    @31.25MHz dB/100m 10.7 10.7
    @62.5MHz dB/100m 15.4 15.4
    @100MHz dB/100m 19.8 19.8
    @250MHz dB/100m 32.9 32.9
    Minimum NEXT Pair to Pair
    @1MHz dB 77.3 77.3
    @4MHz dB 68.3 68.3
    @10MHz dB 62.3 62.3
    @16MHz dB 59.2 59.2
    @25MHz dB 56.3 56.3
    @31.25MHz dB 54.9 54.9
    @62.5MHz dB 50.4 50.4
    @100MHz dB 47.3 47.3
    @250MHz dB 41.3 41.3
    Minimum ELFEXT Pair to Pair
    @1MHz dB 68.8 68.8
    @4MHz dB 56.8 56.8
    @10MHz dB 48.8 48.8
    @16MHz dB 44.7 44.7
    @25MHz dB 40.8 40.8
    @31.25MHz dB 38.9 38.9
    @62.5MHz dB 32.8 32.8
    @100MHz dB 28.8 28.8
    @250MHz dB 20.8 20.8

    Mechanical and Thermal Properties

    • Minimum Bending Radius: 12×OD (static); 24×OD (dynamic)
    • Temperature Range: -40℃ to +60℃ (during operation); -10℃ +60℃ (during installation)

    Dimensions and Weight

    K20 cables

    Cable Code No. of
    pairs
    Nominal Sheath Thickness
    mm
    Nominal Overall
    Diameter
    mm
    Nominal Weight
    kg/km
    Inner Outer
    0.56mm conductor, 1.45mm Insulated Wire
    RD/K20-F/FTPCat6-2Y(St)H(SWB)H-PIMF-4P0.56 4 1.0 1.0 11.7 156

    L120 cables

    Cable Code No. of pairs Nominal Sheath
    Thickness
    mm
    Nominal Overall
    Diameter
    mm
    Nominal Weight
    kg/km
    0.6mm conductor, 1.34mm Insulated Wire
    RD/L120-F/FTPCat6-02YHH-4P0.6 4(2Q) 1.8 8.5 x 6* 60
    RD/L120-F/FTPCat6-02YHH-8P0.6 8(2 x 4p) 1.8 18 x 6** 120
    RD/L120-F/FTPCat6-02YHH-12P0.6 12(3 x 4p) 1.8 16 235
    RD/L120-F/FTPCat6-02YHH-32P0.6 32(4 x 4Q) 1.8 19 360
    RD/L120-F/FTPCat6-02YHH-64P0.6 64(8 x 4Q) 1.8 30 675
    RD/L120-F/FTPCat6-02YHH-128P0.6 128(4SU x 4Q) 1.8 40 1250
