    CCPSSP-FR0.3 n×1×1.4

    • CCPSSP-FR0.3 n×1×1.4
    • CCPSSP-FR0.3 n×1×1.4

    Application

    The cables are used as railway cables and can be installed directly into the ground or in ducts.

    Standard

    • RENFE E.T. 03.365.051.6

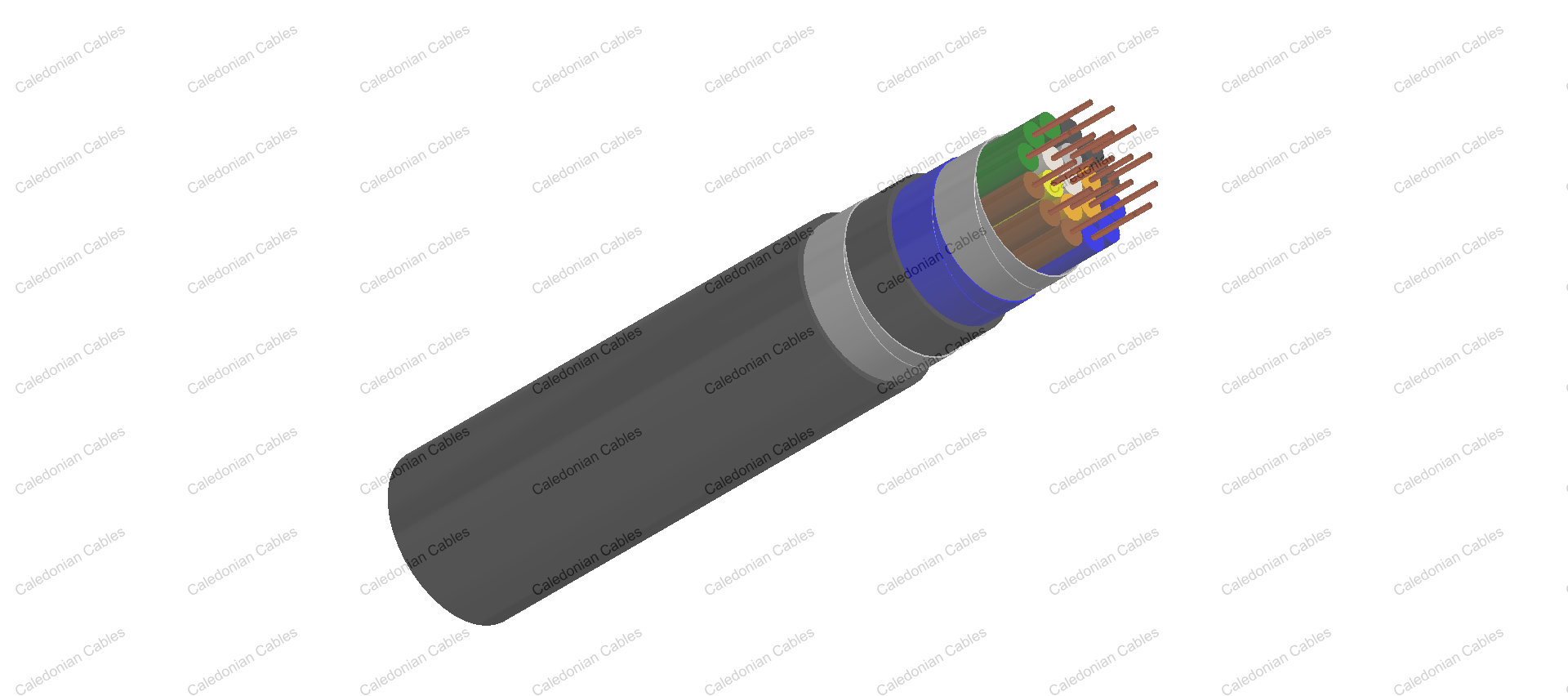

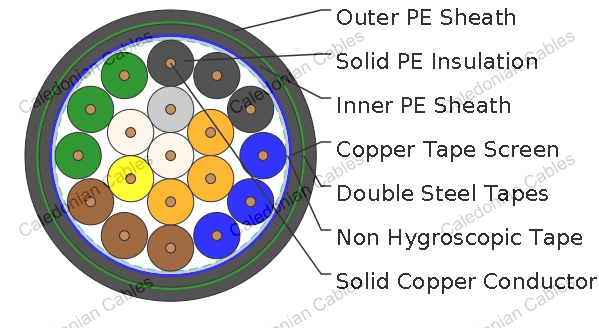

    Cable Construction

    • Electrical Characteristics at 20℃Conductors: Soft annealed solid copper, 1.4 mm nominal diameter.
    • Insulation: PE insulation.
    • Stranding: Cores are helically stranded in concentric layers.
    • Core Wrapping: Two or more layers of plastic tape(s) with overlapping.
    • Screen: Copper tapes with overlap (protection against interference).
    • Inner Sheath: PE sheath.
    • Armour: Two layers of steel tape (0.8mm thick).
    • Outer Sheath: PE sheath.
    Nominal Conductor Diameter mm 1.4
    Maximum Conductor Resistance Ω/km 11.9
    Minimum Insulation Resistance @500 V DC MΩ.km 15000
    Resistance Unbalance % 2
    Test Voltage @50Hz 1min
    Core to Core Veff 2100
    Core to Screen Veff 2500
    Reduction Factor @100V/km 50Hz   0.3

    Mechanical and Thermal Properties

    • Minimum Bending Radius: 10×OD
    • Temperature Range: -40℃ to +60℃ (during operation); -10℃ +60℃ (during installation)

    Dimensions and Weight

    Cable Code Number of
    Cores
    Nominal Sheath Thickness
    mm
    Maximum Overall
    Diameter
    mm
    Nominal
    Weight
    kg/km
    Inner Outer
    1.4mm Conductor, 2.6mm Insulated Wire
    RS/CCPSSP-FR0.3-2Y(K)2YB2Y-2C1.4 2 1.5 1.6 16.5 530
    RS/CCPSSP-FR0.3-2Y(K)2YB2Y-4C1.4 4 1.5 1.6 17.5 608
    RS/CCPSSP-FR0.3-2Y(K)2YB2Y-7C1.4 7 1.5 1.6 19.0 718
    RS/CCPSSP-FR0.3-2Y(K)2YB2Y-9C1.4 9 1.5 1.6 22.7 914
    RS/CCPSSP-FR0.3-2Y(K)2YB2Y-12C1.4 12 1.5 1.6 23.2 977
    RS/CCPSSP-FR0.3-2Y(K)2YB2Y-19C1.4 19 1.6 1.8 25.2 1185
    RS/CCPSSP-FR0.3-2Y(K)2YB2Y-27C1.4 27 1.6 1.8 28.1 1437
    RS/CCPSSP-FR0.3-2Y(K)2YB2Y-37C1.4 37 1.7 1.8 31.4 1754
    RS/CCPSSP-FR0.3-2Y(K)2YB2Y-48C1.4 48 1.7 1.8 34.2 2062
