    CCPSSP-FR0.3 n×2×0.9/1.4

    • CCPSSP-FR0.3 n×2×0.9/1.4
    • CCPSSP-FR0.3 n×2×0.9/1.4

    Application

    The cables are used as railway cables and can be installed directly into the ground or in ducts.

    Standard

    • RENFE E.T. 03.365.051.6

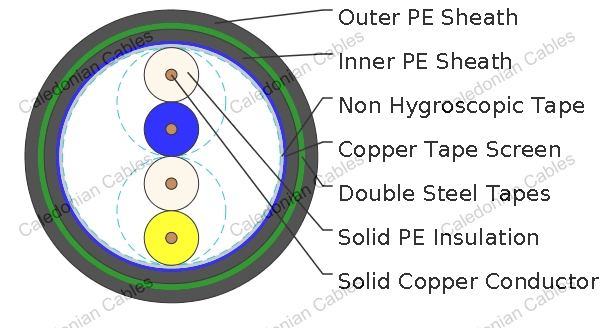

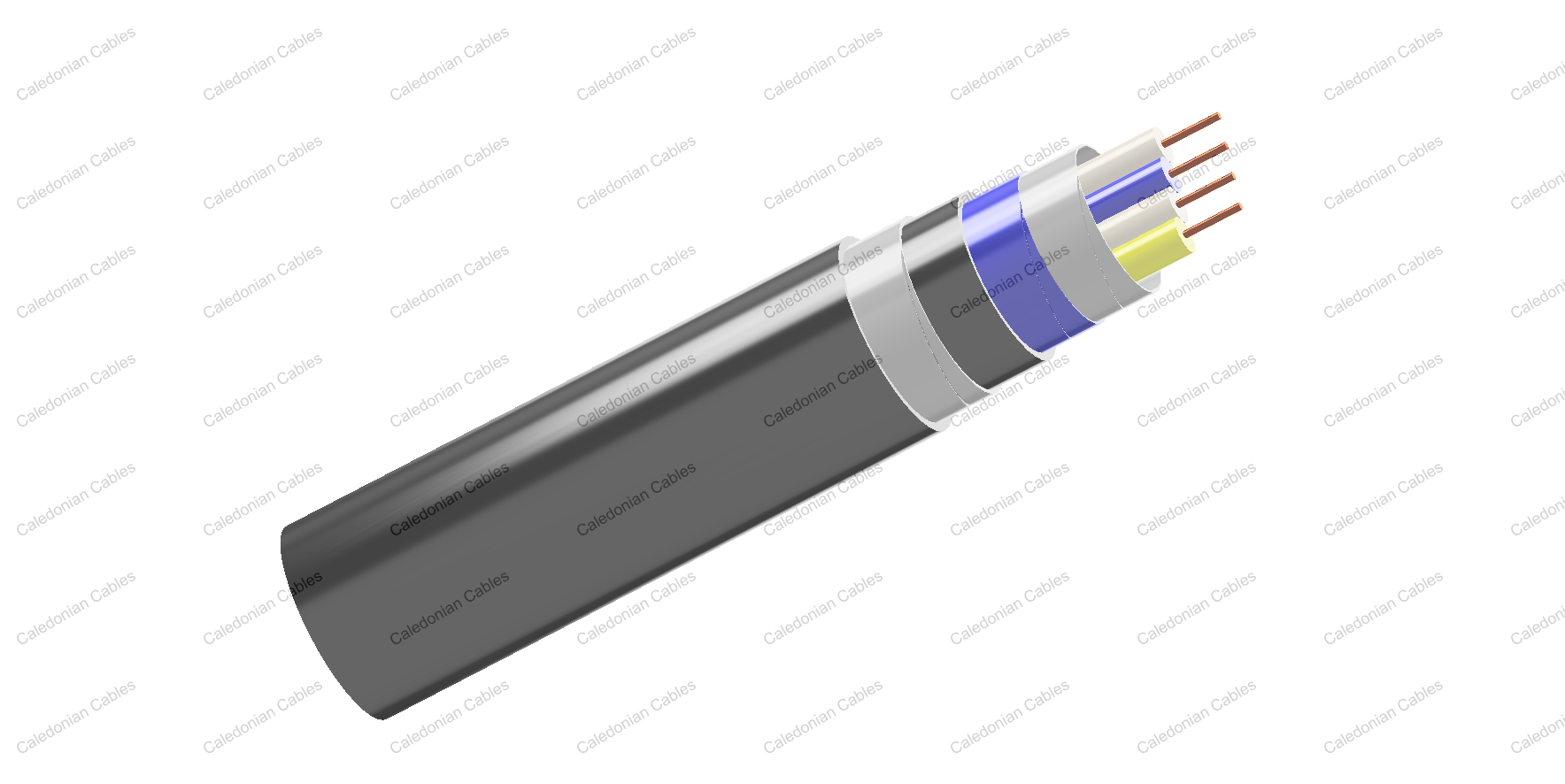

    Cable Construction

    • Electrical Characteristics at 20℃Conductors: Soft annealed solid copper, 1.4 mm nominal diameter.
    • Insulation: PE.
    • Cabling Element: Two insulated conductors are twisted together to form a pair.
    • Stranding: Pairs are helically stranded in concentric layers.
    • Core Wrapping: Two or more layers of plastic tape(s) with overlapping.
    • Screen: Copper tapes with overlap (protection against interference).
    • Inner Sheath: PE sheath.
    • Armour: Two layers steel tape (0.8mm thick).
    • Outer Sheath: PE sheath.
    Nominal Conductor Diameter mm 0.9 1.4
    Maximum Conductor Resistance Ω/km 28.5 11.7
    Minimum Insulation Resistance @500 V DC MΩ.km 15000 15000
    Mutual Capacitance @1KHz nF/km 58 58
    Capacitance Unbalance @1KHz
    Pair to Pair pF/km 260 260
    Pair to Earth pF/km 2625 2625
    Test Voltage @50Hz 1min
    Core to Core Veff 2100 2100
    Core to Screen Veff 2500 2500
    Reduction Factor @100V/km 50Hz   0.3 0.3

    Mechanical and Thermal Properties

    • Minimum Bending Radius: 10×OD
    • Temperature Range: -40℃ to +60℃ (during operation); -10℃ to +60℃ (during installation)

    Dimensions and Weight

    Cable Code Number of
    Pairs
    Nominal Sheath Thickness
    mm
    Maximum Overall
    Diameter
    mm
    Nominal
    Weight
    kg/km
    Inner Outer
    0.9mm Conductor, 1.8mm Insulated Wire
    RS/CCPSSP-FR0.3-2Y(K)2YB2Y-6P0.9 6 1.5 1.6 19.2 720
    RS/CCPSSP-FR0.3-2Y(K)2YB2Y-10P0.9 10 1.5 1.6 24.0 1011
    RS/CCPSSP-FR0.3-2Y(K)2YB2Y-12P0.9 12 1.5 1.6 24.5 1067
    1.4mm Conductor,2.7mm Insulated Wire
    RS/CCPSSP-FR0.3-2Y(K)2YB2Y-2P1.4 2 1.5 1.6 22.5 904
    RS/CCPSSP-FR0.3-2Y(K)2YB2Y-6P1.4 6 1.6 1.8 25.5 1155
    RS/CCPSSP-FR0.3-2Y(K)2YB2Y-7P1.4 7 1.6 1.8 26.9 1258
    RS/CCPSSP-FR0.3-2Y(K)2YB2Y-10P1.4 10 1.7 1.8 30.9 1542
    RS/CCPSSP-FR0.3-2Y(K)2YB2Y-11P1.4 11 1.7 1.8 30.9 1576
    RS/CCPSSP-FR0.3-2Y(K)2YB2Y-14P1.4 14 1.7 1.8 37.1 1827
    RS/CCPSSP-FR0.3-2Y(K)2YB2Y-20P1.4 20 1.8 2.0 37.9 2214
