    Single Core Cables to VDE 0276

    • Single Core Cables to VDE 0276
    • Single Core Cables to VDE 0276

    Application

    The single core cables are designed for distribution of electrical power with nominal voltage Uo/U ranging from 3.6/6KV to 18/30KV and frequency 50Hz. They are suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors, underground and in water as well as for installation on cable trays for industries, switchboards and power stations.

    Standards

    DIN VDE 0276 Part 620-622

    HD 620 S1

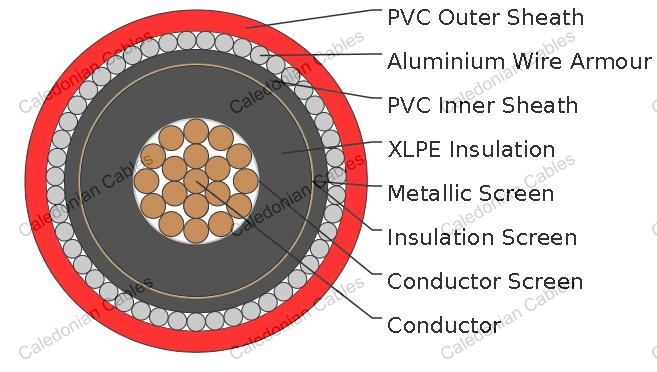

    Construction

    Conductor : Stranded compacted circular copper or aluminium conductors according to IEC 60228 class 2 / VDE 0276 class 2 / VDE 0295 HD 383. All internal interstices of the conductor are filled with water blocking compound to prevent ingress of water through conductor during storage, handing, installation and operation of the cable.

    Conductor Screen : The conductor screen consists of an extruded layer of non metallic, semi-conducting compound firmly bonded to the insulation to exclude all air voids. The screen has a minimum thickness of 0.3mm and the maximum volume resistivity of 500 Ohm-m at 90°C.

    Insulation : Insulation is of extruded XLPE compound type 2XI1 according to DIN VDE 0207 part 22 and HD 620.1 with high degree of cross-linking, free from contaminants, air voids and heat resistant by dry cured process.

    The nominal insulation wall thickness is shown in table 1.

    Table 1. Insulation Thickness

    Nom. Cross Section Area of Conductor Insulation Thickness at Nom. Voltage
    3.6/6KV(Um=7.2KV) 6/10KV(Um=12KV) 8.7/15KV(Um=17.5KV) 12/20KV(Um=24KV) 18/30KV(Um=36KV)
    mm² mm mm mm mm mm
    35 2.5 3.4 4.5 5.5 -
    50 2.5 3.4 4.5 5.5 8.0
    70 2.5 3.4 4.5 5.5 8.0
    95 2.5 3.4 4.5 5.5 8.0
    120 2.5 3.4 4.5 5.5 8.0
    150 2.5 3.4 4.5 5.5 8.0
    185 2.5 3.4 4.5 5.5 8.0
    240 2.6 3.4 4.5 5.5 8.0
    300 2.8 3.4 4.5 5.5 8.0
    400 3.0 3.4 4.5 5.5 8.0

    Insulation Screen : The insulation screen consists of extruded non metallic, semi-conducting compound extruded over the insulation. The extruded semi-conducting layer shall consist of bonded or cold strippable semi-conducting compound capable of removal for jointing or terminating.The minimum thickness is 0.3mm and the maximum volume resistivity of 500 Ohm-m at 90°C. The screen is tightly fitted to the insulation to exclude all air voids and can be easily hand stripped on site.

    Conducting Water Blocking Layer : The insulation screen may be coverd by semiconductive water blocking tape which will swell up under the influence of moisture of water to ensure longitudinal watertightness.

    Metallic Layer : The metallic layer shall consist of either copper tapes or a concentric layer of copper wires or a combination of tapes and wires. The metallic layer provides an earth fault current path, capable of withstanding fault current to earth of 1000A for one second at maximum temperature 160°C. Copper wires are applied over the conducting water blocking layer with a minimum diameter of 0.5mm. As an alternative, copper tape(s) with minimum thickness of 0.1mm can be applied with overlap. Total cross section of copper wire screen and copper tape screen layer are shown in Table 2a and 2b.

    Table 2a. Total Cross Section and Max. DC Resistance of Copper Wire Screen

    Nominal Cross-Section of Cables Total Cross Section Max. DC Resistance of Copper Wire Screen at 20℃
    3.6/6KV (Um=7.2KV) 6/10KV (Um=12KV) 8.7/15KV (Um=17.5KV) 12/20KV (Um=24KV) 18/30KV (Um=36KV)
    mm² mm² Ω
    70 16 16 16 16 16 1.19
    95 16 16 16 16 16 1.19
    120 16 16 16 16 16 1.19
    150 25 25 25 25 25 0.759
    185 25 25 25 25 25 0.759
    240 25 25 25 25 25 0.759
    300 25 25 25 25 25 0.759
    400 35 35 35 35 35 0.271
    500 35 35 35 35 35 0.217
    630 35 35 35 35 35 0.271

    Table 2b. Total Cross Section and Max. DC Resistance of Copper Tape Screen (0.1mm)

    Nominal Cross-Section of Cables Total Cross Section & Max. DC Resistance
    3.6/6KV (Um=7.2KV) 6/10KV (Um=12KV) 8.7/15KV (Um=17.5KV) 12/20KV (Um=24KV) 18/30KV (Um=36KV)
    Total Cross Section Max. DC Resistance at 20℃ Total Cross Section Max. DC Resistance at 20℃ Total Cross Section Max. DC Resistance at 20℃ Total Cross Section Max. DC Resistance at 20℃ Total Cross Section Max. DC Resistance at 20℃
    mm² mm² Ω mm² Ω mm² Ω mm² Ω mm² Ω
    70 7.4 2.314 8.2 2.106 9.1 1.897 9.9 1.740 11.9 1.442
    95 8.2 2.095 8.9 1.923 9.8 1.748 10.7 1.614 12.7 1.354
    120 9.0 1.905 9.8 1.761 10.7 1.613 11.5 1.498 13.5 1.272
    150 9.7 1.781 10.4 1.655 11.3 1.523 12.1 1.420 14.2 1.215
    185 10.6 1.626 11.2 1.540 12.2 1.407 12.9 1.335 14.9 1.153
    240 11.7 1.465 12.4 1.388 13.3 1.294 14.1 1.219 16.2 1.065
    300 12.9 1.334 13.4 1.285 14.3 1.204 15.1 1.139 17.1 1.003
    400 14.3 1.205 14.6 1.178 15.5 1.110 16.3 1.054 18.4 0.937
    500 15.7 1.094 16.2 1.061 17.1 1.005 17.5 0.982 20.0 0.861
    630 17.3 0.992 18.9 0.912 18.7 0.918 19.5 0.880 21.6 0.797

    Separator / Water Blocking Layer : The metallic screen may be covered by non-conducting water blocking tape which will swell up under the influence of moisture of water to ensure longitudinal watertightness.

    Separation Sheath (for armoured cable) : The separation sheath comprises a layer of extruded PVC, PE or LSZH, applied under the armour. Thickness of separation sheath as shown in table 3.

    Table 3. Separation Sheath Thickness

    Core Diameter Approx.Thickess of Inner Sheath
    mm mm
    > <
    35 45 1.4
    45 60 1.6
    60 80 1.8
    80 - 2.0

    Armour (for armoured cable) : The armour consists of round aluminium wire armour applied helically over an extruded separation sheath.

    Table 4. Round Armour Wire Diameter

    Fictitious Diameter under the Armour Armour Wire Diameter
    mm mm
    > <
    - 10 0.8
    10 15 1.25
    15 25 1.6
    25 35 2.0
    35 60 2.5
    60 - 3.15

    Over Sheath : Overall sheath comprises a layer of extruded PE compound DMP2 according to HD620.1 and 2YM3 type to DIN VDE 0276 Part 3, or PVC compound DMV6 according to HD620.1 and YM5 to DIN VDE 0276 Part 6. LSZH can be offered as an option. Normal wall thickness is 2.5mm (for 1/500mmsq 18/30KV, wall thickness is 2.6mm), suitable for exposure to sun-light or other local atmospheric environments and for the operating temperature of the cable.

    Physical Properties

    Operating Temperature : up to 90°C

    Temperature Range : -5°C ( PVC or LSZH sheath ); -20°C ( PE sheath )

    Short Circuit Temperature : 250°C (short circuit duration up to 5 seconds)

    Bending Radius : 15 x OD (Cable without metal sheath) ; 30 x OD (Cable with aluminium sheath)

    Table 5. Nominal /Operating /Testing Voltages

    Nominal Voltage Uo/U Operating Voltage (max) Testing Voltage
    3.6/6KV 8KV 10KV
    6/10KV 12KV 15KV
    8.7/15KV 18KV 22.5KV
    12/20KV 24KV 30KV
    18/30KV 36KV 45KV

    TYPE CODES

    Cores

    N According to VDE Standard (No abbreviation for copper conductor)

    A Aluminium Conductor

    2X XLPE Insulation

    Y PVC Insulation

    Screen

    S - Screen of copper wires and copper tape, helically wound.

    SE - Screen of copper wire plus copper tape over each individual cores, helically wound.

    (F) - Longitudinally waterproof screen.

    Concentric Conductor Screen

    C - Concentric conductor screen of copper wires and copper tape, helically wound.

    CE - Concentric conductor screen of copper wire plus copper tape over each individual cores, helically wound.

    Jacket

    2Y - PE Jacket

    Y - PVC Jacket

    H - LSZH Jacket

    Single Core 1.8/3KV (Um=3.6KV)

    Dimensional Data

    Nom. Cross-Section Area Nom. Insulation Thickness Nom. Sheath Thickness Nom. Overall Diameter Approx. Weight
    N2XSY/N2XSH CU NA2XSY/NA2XSH AL N2XS2Y CU NA2XS2Y AL N2XS(F)2Y CU NA2XS(F)2Y AL
    mm² mm mm mm kg/km kg/km kg/km kg/km kg/km kg/km
    25 2.0 1.4 13 500 180 480 140 500 230
    35 2.0 1.4 14 620 280 600 240 620 330
    50 2.0 1.4 15 700 380 750 290 750 430
    70 2.0 1.5 17 900 480 800 380 1000 560
    95 2.0 1.5 19 1200 590 1050 460 1300 670
    120 2.0 1.6 21 1450 700 1300 550 1500 800
    150 2.0 1.6 22 1700 800 1550 650 1800 900
    185 2.0 1.7 24 2050 850 1900 750 2150 950
    240 2.0 1.8 27 2550 1050 2350 900 2650 1150
    300 2.0 1.8 29 3150 1250 2950 1050 3250 1350
    400 2.0 1.9 32 3950 1550 3800 1450 4100 1650
    500 2.2 2.0 35 5000 2000 4800 1800 5200 2150
    630 2.4 2.2 38 6200 2200 6300 2100 6400 2350
    800 2.6 2.3 44 8000 2900 7900 2800 8200 3050

    Electrical Data

    Nom. Cross- Section Area DC Resistance CU / AL AC Resistance CU / AL Short Circuit Rating of Conductor CU / AL 1 sec Capacitance Charging Current Reactance Inductance Impedance
    Trefoil Flat Spaced
    Trefoil Flat Spaced Trefoil Flat Spaced CU AL CU AL
    mm² µΩ/m µΩm kA pF/m mA/m µΩ/m nH/m µΩ/m µΩ/m
    25 727/1200 929/1538 3.6/2.3 222 0.32 131 185 345 535 936 1544 952 1554
    35 524/868 668/1113 5.0/3.2 251 0.35 122 178 327 524 679 1121 695 1131
    50 387/641 494/822 6.8/4.4 281 0.39 116 172 313 514 511 834 527 844
    70 268/443 343/568 9.8/6.3 341 0.45 110 165 300 495 364 583 386 597
    95 193/320 248/410 13.3/8.5 397 0.50 104 160 287 485 272 427 300 446
    120 153/253 196/325 17.2/11.0 430 0.55 104 159 280 475 225 345 257 367
    150 124/206 159/265 21.2/13.5 464 0.59 100 156 274 465 193 287 229 313
    185 99/164 128/211 26.6/17.0 513 0.65 98 154 267 459 165 237 206 267
    240 75/125 98/161 34.9/22.3 573 0.70 94 150 260 455 140 191 185 226
    300 60/100 80/130 43.8/28.0 652 0.72 91 147 253 445 128 163 174 203
    400 47/78 64/102 57.3/36.6 727 0.75 90 147 248 435 113 141 164 184
    500 37/60 51/81 72.3/46.2 754 0.79 89 145 245 425 105 124 158 171
    630 28/47 42/64 91.2/58.3 786 0.87 86 143 243 415 97 110 151 160

    Single Core 3.6/6KV (Um=7.2 KV)

    Dimensional Data

    Nom. Cross-Section Area Nom. Insulation Thickness Copper Tape Screen Area (0.1mm) Copper Wire Screen Area Nom. Sheath Thickness Nom. Overall Diameter Approx. Weight
    N2XSY/N2XSH CU NA2XSY/NA2XSH AL N2XS2Y CU NA2XS2Y AL N2XS(F)2Y CU NA2XS(F)2Y AL
    mm² mm mm² mm² mm mm kg/km kg/km kg/km kg/km kg/km kg/km
    25 2.5 5.7 16 1.5 18 700 480 600 550 700 560
    35 2.5 6.2 16 1.6 20 820 580 800 560 900 660
    50 2.5 6.7 16 1.6 21 1000 680 900 570 1050 750
    70 2.5 7.4 16 1.7 23 1200 770 1100 650 1300 850
    95 2.5 8.2 16 1.7 24 1500 890 1350 760 1550 990
    120 2.5 9.0 16 1.8 26 1850 1000 1700 850 1900 1150
    150 2.5 9.7 25 1.8 27 2100 1100 1950 1050 2200 1250
    185 2.5 10.6 25 1.9 29 2450 1250 2300 1200 2550 1300
    240 2.6 11.7 25 1.9 32 3050 1550 2850 1400 3150 1650
    300 2.8 12.9 25 2.0 35 3650 1850 3450 1650 3750 1950
    400 3.0 14.3 35 2.1 38 4550 2250 4400 2050 4700 2350
    500 3.2 15.7 35 2.3 42 5700 2700 5500 2500 5900 2850
    630 3.2 17.3 35 2.4 48 7090 3020 6890 2820 7290 3200
    800 3.2 20.3 35 2.5 52 8900 3700 8700 3500 9100 3850

    Electrical Data

    Nom. Cross-Section Area DC Resistance CU / AL AC Resistance CU / AL Short Circuit Rating of Conductor CU / AL 1 sec Capacitance Charging Current Short Circuit Rating of Copper Wire Screen 1 sec Short Circuit Rating of Copper Tape Screen 1 sec Reactance Inductance Impedance
    Trefoil Flat Spaced Trefoil Flat Spaced Trefoil Flat Spaced
    CU AL CU AL
    mm² µΩ/m µΩm kA pF/m mA/m kA kA µΩ/m nH/m µΩ/ m µΩ/m
    25 727/1200 927/1538 3.6/2.3 262 0.32 1.96 0.83 142 196 400 590 936 1544 952 1554
    35 524/868 668/1113 5.0/3.2 291 0.35 1.96 0.90 133 187 390 580 679 1121 695 1131
    50 387/641 494/822 6.8/4.4 321 0.39 1.96 0.98 121 179 380 570 511 834 527 844
    70 268/443 343/568 9.8/6.3 371 0.45 1.96 1.09 115 173 370 550 364 583 386 597
    95 193/320 248/410 13.3/8.5 417 0.50 1.96 1.20 110 168 350 540 272 427 300 446
    120 153/253 196/325 17.2/11.0 459 0.55 3.06 1.32 107 165 340 520 225 345 257 367
    150 124/206 159/265 21.2/13.5 494 0.59 3.06 1.41 103 161 330 510 193 287 229 313
    185 99/164 128/211 26.6/17.0 543 0.65 3.06 1.54 100 158 320 500 165 237 206 267
    240 75/125 98/161 34.9/22.3 583 0.70 3.06 1.71 97 155 310 490 140 191 185 226
    300 60/100 80/130 43.8/28.0 602 0.72 4.29 1.88 95 153 300 490 126 163 174 203
    400 47/78 64/102 57.3/36.6 627 0.75 4.29 2.08 92 150 290 480 113 141 164 184
    500 37/60 51/81 72.3/46.2 654 0.79 4.29 2.30 90 147 290 470 105 124 158 171
    630 28/47 42/64 91.2/58.3 726 0.87 6.13 2.53 87 145 280 460 97 110 151 160
    800 22/37 35/55 114.4/75.0 786 0.91 5.8 2.96 85 143 270 460 92 101 147 153

    * For capacitance & charging current values, multiply values shown by 1.2 for EPR insulated cables.

    Single Core 6/10KV (Um=12 KV)

    Dimensional Data

    Nom. Cross-Section Area Nom. Insulation Thickness Copper Tape Screen Area (0.1mm) Copper Wire Screen Area Nom. Sheath Thickness Nom. Overall Diameter Approx. Weight
    N2XSY/N2XSH CU NA2XSY/NA2XSH AL N2XS2Y CU NA2XS2Y AL N2X(F)2Y CU NA2XS(F)2Y AL
    mm² mm mm² mm² mm mm kg/km kg/km kg/km kg/km kg/km kg/km
    25 3.4 6.4 16 1.6 25 820 580 720 550 900 650
    35 3.4 6.9 16 1.6 25 920 680 900 570 980 750
    50 3.4 7.4 16 1.7 26 1100 780 950 670 1150 850
    70 3.4 8.2 16 1.7 28 1300 870 1200 750 1400 950
    95 3.4 8.9 16 1.8 30 1600 990 1450 860 1650 1100
    120 3.4 9.8 16 1.8 32 1950 1100 1800 950 2050 1250
    150 3.4 10.4 25 1.9 33 2200 1200 2050 1150 2300 1350
    185 3.4 11.2 25 1.9 34 2550 1350 2400 1300 2650 1500
    240 3.4 12.4 25 2.0 36 3150 1650 2950 1500 3250 1750
    300 3.4 13.4 25 2.1 38 3750 1950 3550 1750 3850 2050
    400 3.4 14.6 35 2.2 43 4650 2350 4500 2150 4800 2450
    500 3.4 16.2 35 2.3 45 5800 2800 5700 2600 6000 2950
    630 3.4 18.9 35 2.4 50 7300 3100 7010 2950 7500 3300
    800 3.4 20.4 35 2.5 50 9100 3900 8900 3700 9300 4000

    Electrical Data

    Nom. Cross-Section Area DC Resistance CU / AL AC Resistance CU / AL Short Circuit Rating of Conductor CU / AL 1 sec Capacitance Charging Current Short Circuit Rating of Copper Wire Screen 1 sec Short Circuit Rating of Copper Tape Screen 1 sec Reactance Inductance Impedance
    Trefoil Flat Spaced Trefoil Flat Spaced Trefoil Flat Spaced
    CU AL CU AL
    mm² µΩ/m µΩm kA pF/m mA/m kA kA µΩ/m nH/m µΩ/m µΩ/m
    25 727/1200 927/1538 3.6/2.3 208 0.42 1.96 0.94 144 210 460 660 936 1544 952 1554
    35 524/868 668/1113 5.0/3.2 229 0.46 1.96 1.01 136 200 440 640 679 1121 695 1131
    50 387/641 494/822 6.8/4.4 252 0.50 1.96 1.09 131 195 420 620 511 834 527 844
    70 268/443 343/568 9.8/6.3 288 0.58 1.96 1.19 122 188 390 600 364 583 386 597
    95 193/320 248/410 13.3/8.5 323 0.65 1.96 1.31 122 182 390 580 272 427 300 446
    120 153/253 196/325 17.2/11.0 353 0.71 1.96 1.43 116 172 370 550 225 345 257 367
    150 124/206 159/265 21.2/13.5 380 0.76 3.06 1.52 110 166 350 530 193 287 229 313
    185 99/164 128/211 26.6/17.0 416 0.83 3.06 1.63 107 166 340 530 165 237 206 267
    240 75/125 98/161 34.9/22.3 460 0.92 3.06 1.81 104 163 330 520 140 191 185 226
    300 60/100 80/130 43.8/28.0 506 1.01 3.06 1.95 100 157 320 500 126 163 174 203
    400 47/78 64/102 57.3/36.6 561 1.12 4.29 2.13 94 154 300 490 113 141 164 184
    500 37/60 51/81.0 72.3/46.2 619 1.24 4.29 2.37 91 151 290 480 105 124 158 171
    630 28/47 42/64.0 91.2/58.3 698 1.37 4.29 2.75 91 148 290 470 97 110 151 160
    800 22/37 35/55 114.4/75.0 780 1.39 6.13 2.98 88 144 280 470 92 101 147 153

    Single Core 8.7/15KV (Um=17.5KV)

    Dimensional Data

    Nom. Cross-Section Area Nom. Insulation Thickness Copper Tape Screen Area (0.1mm) Copper Wire Screen Area Nom. Sheath Thickness Nom. Overall Diameter Approx. Weight
    N2XSY/N2XSH CU NA2XSY/NA2XSH AL N2XS2Y CU NA2XS2Y AL N2XS(F)2Y CU NA2XS(F)2Y AL
    mm² mm mm² mm² mm mm kg/km kg/km kg/km kg/km kg/km kg/km
    25 4.5 7.3 16 1.7 26 900 600 880 500 900 700
    35 4.5 7.8 16 1.7 26 1020 700 1000 600 1060 800
    50 4.5 8.3 16 1.7 27 1200 880 1050 770 1250 950
    70 4.5 9.1 16 1.8 29 1400 970 1300 850 1500 1050
    95 4.5 9.8 16 1.8 31 1700 1090 1550 960 1750 1200
    120 4.5 10.7 16 1.9 32 2050 1200 1900 1150 2100 1300
    150 4.5 11.3 25 1.9 33 2300 1400 2150 1250 2400 1500
    185 4.5 12.2 25 2.0 35 2650 1650 2500 1400 2750 1750
    240 4.5 13.3 25 2.1 37 3250 1750 3050 1600 3350 1850
    300 4.5 14.3 25 2.1 39 3850 2050 3650 1850 3950 2150
    400 4.5 15.5 35 2.3 43 4850 2550 4700 2250 5000 2550
    500 4.5 17.1 35 2.3 45 5900 2900 5700 2600 6100 3050
    630 4.5 18.7 35 2.5 51 7500 3200 7200 3100 8000 3400
    800 4.5 21.3 35 2.6 51 9300 4200 9100 4000 9500 4300

    Electrical Data

    Nom. Cross-Section Area DC Resistance CU / AL AC Resistance CU / AL Short Circuit Rating of Conductor CU / AL 1 sec Capacitance Charging Current Short Circuit Rating of Copper Wire Screen 1 sec Short Circuit Rating of Copper Tape Screen 1 sec Reactance Inductance Impedance
    Trefoil Flat Spaced Trefoil Spaced Flat Trefoil Flat Spaced
    CU AL CU AL
    mm² µΩ/m µΩm kA pF/m mA/m kA kA µΩ/m nH/m µΩ/m µΩ/m
    25 727/1200 927/1538 3.6/2.3 171 0.47 1.96 1.07 150 210 480 680 936 1544 952 1554
    35 524/868 668/1113 5.0/3.2 187 0.51 1.96 1.14 141 207 460 660 679 1121 695 1131
    50 387/641 494/822 6.8/4.4 204 0.57 1.96 1.22 138 195 440 640 511 834 527 844
    70 268/443 343/568 9.8/6.3 232 0.63 1.96 1.32 132 188 420 600 364 583 386 597
    95 193/320 248/410 13.3/8.5 258 0.71 1.96 1.44 126 182 400 580 272 427 300 446
    120 153/253 196/325 17.2/11.0 281 0.74 1.96 1.56 119 179 380 570 225 345 257 367
    150 124/206 159/265 21.2/13.5 301 0.79 3.06 1.65 113 176 360 560 193 287 229 313
    185 99/164 128/211 26.6/17.0 329 0.87 3.06 1.79 110 170 350 540 165 237 206 267
    240 75/125 98/161 34.9/22.3 363 0.96 3.06 1.94 107 166 340 530 140 191 185 226
    300 60/100 80/130 43.8/28.0 398 1.03 3.06 2.09 104 160 330 510 126 163 174 203
    400 47/78 64/102 57.3/36.6 439 1.17 4.29 2.26 97 157 310 500 113 141 164 184
    500 37/60 51/81 72.3/46.2 483 1.28 4.29 2.50 94 154 300 490 105 124 158 171
    630 28/47 42/64 91.2/58.3 534 1.42 4.29 2.73 91 151 290 480 97 110 151 160
    800 22/37 35/55 114.4/75.0 590 1.61 6.13 3.11 91 147 290 470 92 101 147 153

    Single Core 12/20KV (Um=24KV)

    Dimensional Data

    Nom. Cross-Section Area Nom. Insulation Thickness Copper Tape Screen Area (0.1mm) Copper Wire Screen Area Nom. Sheath Thickness Nom. Overall Diameter Approx. Weight
    N2XSY/N2XSH CU NA2XSY/NA2XSH AL N2XS2Y CU NA2XS2Y AL N2XS(F)2Y CU NA2XS(F)2Y AL
    mm² mm mm² mm² mm mm kg/km kg/km kg/km kg/km kg/km kg/km
    25 5.5 8.1 16 1.8 29 1000 750 900 630 1100 850
    35 5.5 8.6 16 1.8 30 1100 850 1050 730 1200 950
    50 5.5 9.1 16 1.8 31 1250 970 1150 830 1350 1050
    70 5.5 9.9 16 1.9 33 1500 1100 1350 920 1600 1200
    95 5.5 10.7 16 1.9 34 1800 1200 1650 1050 1900 1300
    120 5.5 11.5 16 2.0 35 2150 1350 1900 1150 2250 1450
    150 5.5 12.1 25 2.0 37 2400 1500 2250 1350 2500 1650
    185 5.5 12.9 25 2.1 38 2800 1700 2600 1550 2900 1800
    240 5.5 14.1 25 2.1 42 3400 1900 3200 1750 3500 2050
    300 5.5 15.1 25 2.2 43 4000 2200 3800 2000 4150 2300
    400 5.5 16.3 35 2.3 44 4950 2600 4750 2400 5100 2800
    500 5.5 17.5 35 2.4 46 6050 3000 5800 2800 6200 3200
    630 5.5 19.5 35 2.5 50 8150 3600 8050 3400 8300 3750
    800 5.5 22.1 35 2.6 53 9600 4400 9450 4200 9800 4300

    Electrical Data

    Nom. Cross-Section Area DC Resistance CU / AL AC Resistance CU / AL Short Circuit Rating of Conductor CU / AL 1 sec Capacitance Charging Current Short Circuit Rating of Copper Wire Screen 1 sec Short Circuit Rating of Copper Tape Screen 1 sec Reactance Inductance Impedance
    Trefoil Flat Spaced Trefoil Flat Spaced Trefoil Flat Spaced
    CU AL CU AL
    mm² µΩ/m µΩm kA pF/m mA/m kA kA µΩ/m nH/m µΩ/m µΩ/m
    25 727/1200 927/1538 3.6/2.3 142 0.62 1.96 1.19 162 214 490 680 936 1544 952 1554
    35 524/868 668/1113 5.0/3.2 162 0.65 1.96 1.26 150 207 470 660 679 1121 695 1131
    50 387/641 494/822 6.8/4.4 177 0.71 1.96 1.34 141 201 450 640 511 834 527 844
    70 268/443 343/568 9.8/6.3 200 0.80 1.96 1.44 135 195 430 620 364 583 386 597
    95 193/320 248/410 13.3/8.5 222 0.89 1.96 1.56 129 188 410 600 272 427 300 446
    120 153/253 196/325 17.2/11.0 241 0.96 1.96 1.68 122 182 390 580 225 345 257 367
    150 124/206 159/265 21.2/13.5 257 1.03 3.06 1.77 116 176 370 560 193 287 229 313
    185 99/164 128/211 26.6/17.0 280 1.12 3.06 1.88 116 173 370 550 165 237 206 267
    240 75/125 98/161 34.9/22.3 307 1.23 3.06 2.06 110 170 350 540 140 191 185 226
    300 60/100 80/130 43.8/28.0 336 1.34 3.06 2.21 107 166 340 530 126 163 174 203
    400 47/78 64/102 57.3/36.6 370 1.48 4.29 2.38 100 160 320 510 113 141 164 184
    500 37/60 51/81 72.3/46.2 406 1.62 4.29 2.56 97 154 310 490 105 124 158 171
    630 28/47 42/64 91.2/58.3 449 1.80 4.29 2.85 94 151 300 480 97 110 151 160
    800 22/37 35/55 114.4/75.0 490 1.85 6.13 3.23 91 151 290 480 92 101 147 153

    Single Core 18/30KV (Um=36KV)

    Dimensional Data

    Nom. Cross- Section Area Nom. Insulation Thickness Copper Tape Screen Area (0.1mm) Copper Wire Screen Area Nom. Sheath Thickness Nom. Overall Diameter Approx. Weight
    N2XSY/N2XSH CU NA2XSY/NA2XSH AL N2XS2Y CU NA2XS2Y AL N2XS(F)2Y CU NA2XS(F)2Y AL
    mm² mm mm² mm² mm mm kg/km kg/km kg/km kg/km kg/km kg/km
    50 8.0 11.2 16 2.0 35 1550 1250 1350 1100 1650 1350
    70 8.0 11.9 16 2.0 37 1750 1350 1600 1200 1900 1450
    95 8.0 12.7 16 2.1 39 2050 1500 1900 1300 2150 1600
    120 8.0 13.5 16 2.1 41 2350 1600 2150 1450 2450 1750
    150 8.0 14.2 25 2.2 42 2700 1850 2550 1650 2750 1950
    185 8.0 14.9 25 2.2 44 3100 2000 2900 1800 3150 2150
    240 8.0 16.2 25 2.3 46 3700 2250 3500 2050 3800 2400
    300 8.0 17.1 25 2.4 49 4350 2550 4150 2300 4400 2700
    400 8.0 18.4 35 2.5 52 5350 3000 5100 2750 5450 3200
    500 8.0 20.0 35 2.6 54 6450 3450 6200 3150 6550 3650
    630 8.0 21.6 35 2.7 59 8300 3780 8100 3600 8600 4100
    800 8.0 24.2 35 2.8 59 9900 4500 9700 4320 10300 4800

    Electrical Data

    Nom. Cross-Section Area DC Resistance CU / AL AC Resistance CU / AL Short Circuit Rating of Conductor CU / AL 1 sec Capacitance Charging Current Short Circuit Rating of Copper Wire Screen 1 sec Short Circuit Rating of Copper Tape Screen 1 sec Reactance Inductance Impedance
    Trefoil Flat Trefoil Flat Trefoil Flat spaced
    CU AL CU AL
    mm² µΩ/m µΩ/m kA pF/m mA/m kA kA µΩ/m nH/m µΩ/m µΩ/m
    50 387/641 494/822 6.8/4.4 138 0.83 1.96 1.63 151 214 480 680 511 834 527 844
    70 268/443 343/568 9.8/6.3 154 0.92 1.96 1.74 144 201 460 640 364 583 386 597
    95 193/320 248/410 13.3/8.5 169 1.01 1.96 1.85 138 195 440 620 272 427 300 446
    120 153/253 196/325 17.2/11.0 183 1.10 1.96 1.97 132 188 420 600 225 345 257 367
    150 124/206 159/265 21.2/13.5 194 1.16 3.06 2.07 126 182 400 580 193 287 229 313
    185 99/164 128/211 26.6/17.0 210 1.26 3.06 2.18 122 182 390 580 165 237 206 267
    240 75/125 98/161 34.9/22.3 229 1.37 3.06 2.36 119 176 380 560 140 191 185 226
    300 60/100 80/130 43.8/28.0 249 1.49 3.06 2.50 113 173 360 550 126 163 174 203
    400 47/78 64/102 57.3/36.6 273 1.64 4.29 2.68 107 163 340 520 113 141 164 184
    500 37/60 51/81 72.3/46.2 298 1.79 4.29 2.92 104 163 330 520 105 124 158 171
    630 28/47 42/64 91.2/58.3 327 1.96 4.29 3.15 99 160 320 510 97 110 151 160
    800 22/37 35/55 114.4/75.0 350 1.98 6.13 3.53 98 154 310 490 92 101 147 153

    Current Rating for Single Core 1.8/3KV(Um=3.6KV ) to 18/30KV(Um=36KV) XLPE Insulation

    Nom. Cross-Section Area Buried direct in Ground Laid in Single Way Duct Laid in Air
    Trefoil Flat spaced Trefoil Flat touching Trefoil Flat Touching Flat spaced
    CU AL CU AL CU AL CU AL CU AL CU AL CU AL
    mm² A A A A A A A
    10 84 59 87 62 78 55 98 56 103 75 106 77 122 88
    16 109 84 113 88 103 80 104 81 125 97 128 99 150 116
    25 140 108 144 112 132 102 133 103 163 127 167 130 196 153
    35 166 129 172 134 157 122 159 123 198 154 203 157 238 185
    50 196 152 203 157 186 144 188 146 238 184 243 189 286 222
    70 239 186 246 192 227 176 229 178 296 230 303 236 356 278
    95 285 221 293 229 271 210 274 213 361 280 369 287 434 338
    120 323 252 332 260 308 240 311 242 417 324 426 332 500 391
    150 361 281 366 288 343 267 347 271 473 368 481 376 559 440
    185 406 317 410 324 387 303 391 307 543 424 550 432 637 504
    240 469 367 470 373 447 351 453 356 641 502 647 511 745 593
    300 526 414 524 419 504 397 510 402 735 577 739 586 846 677
    400 590 470 572 466 564 451 571 457 845 673 837 676 938 769
    500 650 530 672 546 604 504 661 537 935 773 938 776 1118 919
    630 700 600 882 646 654 554 771 617 1045 883 1048 886 1318 1089
    800 750 660 1002 756 694 594 871 717 1145 983 1148 986 1528 1279
    1000 800 720 1112 856 724 644 971 807 1235 1083 1238 1086 1738 1469
    Contact Us

    Add the link of current page.

    Clear

    Submit

    Instant Messaging

    WhatsApp :

    +852 6230 0392

    Skype :

    Caledonian Cables

    live:1cb87739a29fb08c

    Wechat :
    The personal information you enter is only used to reply to your message, It will not be leaked or used for other purposes.
