    CVVSB

    • CVVSB - JIS Standard Cable

    Application and Description

    CVVSB cables ared used in control circuits required electrostatic shielding in underground duct, conduit and open air.

    Reference Standard

    IEC 60502-1

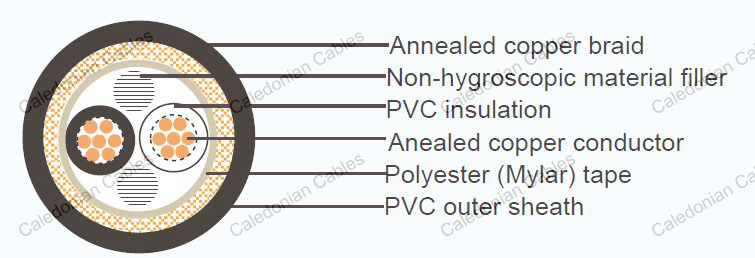

    Cable Construction

    Conductor Stranded annealed copper wires, Sizes: 1.5 mm² up to 10 mm²
    Insulation Polyvinyl chloride (PVC)
    Color 2-4 cores : Black, White, Red and Green
    More than 4 cores : Black core with marking numbers
    Filler Non-hygroscopic material(optional)
    Binding tape Polyester (Mylar) tape (optional) Shield: Copper wire braid
    Outer sheath Polyvinyl chloride (PVC), Black color (A special flame retardant can be supplied)

    Technical Characteristics

    Maximum conductor temperature : 90°C

    Circuit voltage not exceeding : 600 volts

    Test voltage : 3500 volts

    Cable Parameter

    No. of Cores Conductor Thickness of insulation Thickness of outer Sheath Overall diameter Maximum conductor resistance (at 20°C) Cable weight
    Nominal cross-sectional area No.& dia. of wires Diameter
    mm² mm mm mm mm mm Ohm/km kg/km
    2 1.5 7 / 0.53 1.59 0.8 1.8 11.4 12.1 176
    2.5 7 / 0.67 2.01 0.8 1.8 12.3 7.41 211
    4 7 / 0.85 2.55 1.0 1.8 14.2 4.61 285
    6 7 / 1.04 3.12 1.0 1.8 15.4 3.08 348
    10 7 / 1.35 4.05 1.0 1.8 16.9 1.83 411
    3 1.5 7 / 0.53 1.59 0.8 1.8 11.9 12.1 207
    2.5 7 / 0.67 2.01 0.8 1.8 12.9 7.41 252
    4 7 / 0.85 2.55 1.0 1.8 15.0 4.61 349
    6 7 / 1.04 3.12 1.0 1.8 16.2 3.08 433
    10 7 / 1.35 4.05 1.0 1.8 17.9 1.83 535
    4 1.5 7 / 0.53 1.59 0.8 1.8 12.8 12.1 245
    2.5 7 / 0.67 2.01 0.8 1.8 13.9 7.41 303
    4 7 / 0.85 2.55 1.0 1.8 16.2 4.61 423
    6 7 / 1.04 3.12 1.0 1.8 17.6 3.08 531
    10 7 / 1.35 4.05 1.0 1.8 19.5 1.83 673
    5 1.5 7 / 0.53 1.59 0.8 1.8 13.8 12.1 285
    2.5 7 / 0.67 2.01 0.8 1.8 15.0 7.41 355
    4 7 / 0.85 2.55 1.0 1.8 17.3 4.61 498
    6 7 / 1.04 3.12 1.0 1.8 19.2 3.08 634
    10 7 / 1.35 4.05 1.0 1.8 21.4 1.83 818
    6 1.5 7 / 0.53 1.59 0.8 1.8 14.8 12.1 326
    2.5 7 / 0.67 2.01 0.8 1.8 16.1 7.41 410
    4 7 / 0.85 2.55 1.0 1.8 19.0 4.61 584
    6 7 / 1.04 3.12 1.0 1.8 20.8 3.08 742
    10 7 / 1.35 4.05 1.0 1.8 23.2 1.83 966
    7 1.5 7 / 0.53 1.59 0.8 1.8 14.8 12.1 347
    2.5 7 / 0.67 2.01 0.8 1.8 16.1 7.41 440
    4 7 / 0.85 2.55 1.0 1.8 19.0 4.61 631
    6 7 / 1.04 3.12 1.0 1.8 20.8 3.08 808
    10 7 / 1.35 4.05 1.0 1.8 23.2 1.83 1070
    8 1.5 7 / 0.53 1.59 0.8 1.8 15.8 12.1 390
    2.5 7 / 0.67 2.01 0.8 1.8 17.3 7.41 496
    4 7 / 0.85 2.55 1.0 1.8 20.5 4.61 716
    6 7 / 1.04 3.12 1.0 1.8 21.7 3.08 917
    10 7 / 1.35 4.05 1.0 1.8 24.5 1.83 1222
    10 1.5 7 / 0.53 1.59 0.8 1.8 18.2 12.1 486
    2.5 7 / 0.67 2.01 0.8 1.8 19.9 7.41 620
    4 7 / 0.85 2.55 1.0 1.8 23.8 4.61 900
    6 7 / 1.04 3.12 1.0 1.8 22.4 3.08 1157
    10 7 / 1.35 4.05 1.0 1.8 29.6 1.83 1550
    12 1.5 7 / 0.53 1.59 0.8 1.8 18.7 12.1 540
    2.5 7 / 0.67 2.01 0.8 1.8 20.5 7.41 695
    4 7 / 0.85 2.55 1.0 1.8 24.6 4.61 1016
    6 7 / 1.04 3.12 1.0 1.8 27.0 3.08 1314
    10 7 / 1.35 4.05 1.0 1.8 30.5 1.83 1787
    15 1.5 7 / 0.53 1.59 0.8 1.8 20.0 12.1 635
    2.5 7 / 0.67 2.01 0.8 1.8 22.1 7.41 825
    4 7 / 0.85 2.55 1.0 1.8 26.4 4.61 1214
    6 7 / 1.04 3.12 1.0 1.8 29.1 3.08 1580
    20 1.5 7 / 0.53 1.59 0.8 1.8 22.1 12.1 794
    2.5 7 / 0.67 2.01 0.8 1.8 24.5 7.41 1039
    4 7 / 0.85 2.55 1.0 1.8 29.5 4.61 1545
    6 7 / 1.04 3.12 1.0 1.8 32.5 3.08 2024
    30 1.5 7 / 0.53 1.59 0.8 1.8 26.3 12.1 1120
    2.5 7 / 0.67 2.01 0.8 1.8 28.2 7.41 1480
    4 7 / 0.85 2.55 1.0 1.9 35.6 4.61 2242
