    CVVS

    • CVVS
    • CVVS

    Application and Description

    CVVS cables are used in control circuits required electrostatic shielding in underground duct, conduit and open air.

    Reference Standard

    IEC 60502-1

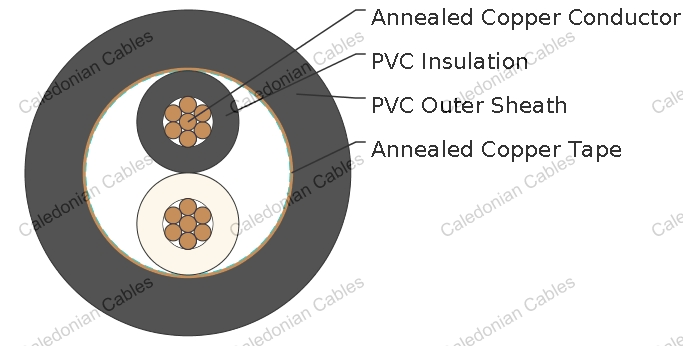

    Cable Construction

    Conductor Stranded annealed copper wires, Sizes: 1.5 mm² up to 10 mm²
    Insulation Polyvinyl chloride (PVC)
    Color 2-4 cores : Black, White, Red and Green
    More than 4 cores : Black core with marking numbers
    Filler Non-hygroscopic material(optional)
    Binding tape Polyester (Mylar) tape (optional)
    Shield Annealed copper tape, 0.1mm
    Outer sheath Polyvinyl chloride (PVC), Black color (A special flame retardant can be supplied)

    Technical Characteristics

    Maximum conductor temperature : 70°C

    Circuit voltage not exceeding : 600 volts

    Test voltage : 3500 volts

    Cable Parameter

    No. of Cores Conductor Thickness of insulation Thickness of outer Sheath Overall diameter Maximum conductor resistance (at 20°C) Cable weight
    Nominal cross-sectional area No.& dia. of wires Diameter
    mm² mm mm mm mm mm Ohm/km kg/km
    2 1.5 7 / 0.53 1.59 0.8 1.8 11.4 12.1 178
    2.5 7 / 0.67 2.01 0.8 1.8 12.3 7.41 213
    4 7 / 0.85 2.55 1.0 1.8 14.2 4.61 287
    6 7 / 1.04 3.12 1.0 1.8 15.4 3.08 350
    10 7 / 1.35 4.05 1.0 1.8 16.9 1.83 413
    3 1.5 7 / 0.53 1.59 0.8 1.8 11.9 12.1 209
    2.5 7 / 0.67 2.01 0.8 1.8 12.9 7.41 254
    4 7 / 0.85 2.55 1.0 1.8 15.0 4.61 351
    6 7 / 1.04 3.12 1.0 1.8 16.2 3.08 435
    10 7 / 1.35 4.05 1.0 1.8 17.9 1.83 537
    4 1.5 7 / 0.53 1.59 0.8 1.8 12.8 12.1 247
    2.5 7 / 0.67 2.01 0.8 1.8 13.9 7.41 305
    4 7 / 0.85 2.55 1.0 1.8 16.2 4.61 425
    6 7 / 1.04 3.12 1.0 1.8 17.6 3.08 533
    10 7 / 1.35 4.05 1.0 1.8 19.5 1.83 675
    5 1.5 7 / 0.53 1.59 0.8 1.8 13.8 12.1 287
    2.5 7 / 0.67 2.01 0.8 1.8 15.0 7.41 357
    4 7 / 0.85 2.55 1.0 1.8 17.3 4.61 500
    6 7 / 1.04 3.12 1.0 1.8 19.2 3.08 636
    10 7 / 1.35 4.05 1.0 1.8 21.4 1.83 820
    6 1.5 7 / 0.53 1.59 0.8 1.8 14.8 12.1 328
    2.5 7 / 0.67 2.01 0.8 1.8 16.1 7.41 412
    4 7 / 0.85 2.55 1.0 1.8 19.0 4.61 586
    6 7 / 1.04 3.12 1.0 1.8 20.8 3.08 744
    10 7 / 1.35 4.05 1.0 1.8 23.2 1.83 968
    7 1.5 7 / 0.53 1.59 0.8 1.8 14.8 12.1 349
    2.5 7 / 0.67 2.01 0.8 1.8 16.1 7.41 442
    4 7 / 0.85 2.55 1.0 1.8 19.0 4.61 633
    6 7 / 1.04 3.12 1.0 1.8 20.8 3.08 810
    10 7 / 1.35 4.05 1.0 1.8 23.2 1.83 1,072
    8 1.5 7 / 0.53 1.59 0.8 1.8 15.8 12.1 392
    2.5 7 / 0.67 2.01 0.8 1.8 17.3 7.41 498
    4 7 / 0.85 2.55 1.0 1.8 20.5 4.61 718
    6 7 / 1.04 3.12 1.0 1.8 21.7 3.08 919
    10 7 / 1.35 4.05 1.0 1.8 24.5 1.83 1,224
    10 1.5 7 / 0.53 1.59 0.8 1.8 18.2 12.1 488
    2.5 7 / 0.67 2.01 0.8 1.8 19.9 7.41 622
    4 7 / 0.85 2.55 1.0 1.8 23.8 4.61 902
    6 7 / 1.04 3.12 1.0 1.8 22.4 3.08 1,159
    10 7 / 1.35 4.05 1.0 1.8 29.6 1.83 1,552
    12 1.5 7 / 0.53 1.59 0.8 1.8 18.7 12.1 542
    2.5 7 / 0.67 2.01 0.8 1.8 20.5 7.41 697
    4 7 / 0.85 2.55 1.0 1.8 24.6 4.61 1,018
    6 7 / 1.04 3.12 1.0 1.8 27.0 3.08 1,316
    10 7 / 1.35 4.05 1.0 1.8 30.5 1.83 1,789
    15 1.5 7 / 0.53 1.59 0.8 1.8 20.0 12.1 637
    2.5 7 / 0.67 2.01 0.8 1.8 22.1 7.41 827
    4 7 / 0.85 2.55 1.0 1.8 26.4 4.61 1,216
    6 7 / 1.04 3.12 1.0 1.8 29.1 3.08 1,582
    20 1.5 7 / 0.53 1.59 0.8 1.8 22.1 12.1 796
    2.5 7 / 0.67 2.01 0.8 1.8 24.5 7.41 1,041
    4 7 / 0.85 2.55 1.0 1.8 29.5 4.61 1,547
    6 7 / 1.04 3.12 1.0 1.8 32.5 3.08 2,026
    30 1.5 7 / 0.53 1.59 0.8 1.8 26.3 12.1 1,122
    2.5 7 / 0.67 2.01 0.8 1.8 28.2 7.41 1,482
    4 7 / 0.85 2.55 1.0 1.9 35.6 4.61 2,244
