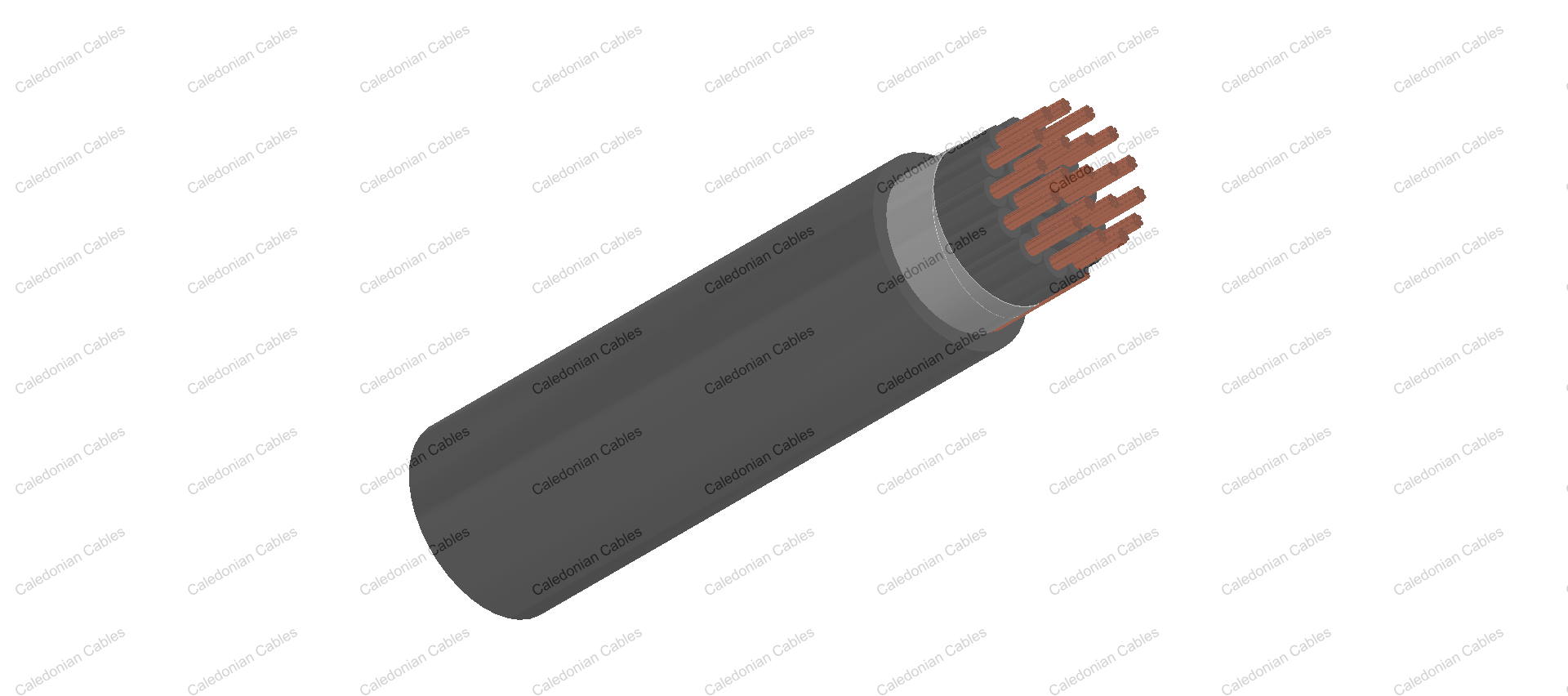

    CVVAMS

    • CVVAMS
    • CVVAMS

    Application and Description

    CVVAMS cables are used for electric signal transmission of control or monitoring circuits for 0.6/1kV

    Reference Standard

    IEC 60502-1

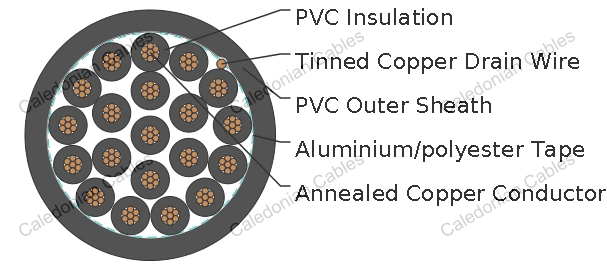

    Cable Construction

    Conductor Stranded annealed copper wires, Sizes : 1.5 mm² up to 10 mm²
    Insulation Polyvinyl chloride (PVC)
    Color Black with marking numbers
    Filler Non-hygroscopic material(optional)
    Binding tape Polyester (Mylar) tape (optional)
    Overall Screen 1 Aluminium/polyester tape is applied over each pair metallic side down in contact with tinned copper drain wire
    Sheath Polyvinyl chloride (PVC), Black color (other colors can be provided upn request)

    Technical Characteristics

    Maximum conductor temperature 70°C

    Circuit voltage not exceeding 600 volts

    Test voltage : 3500 volts

    Cable Parameter

    NO. OF CORES CONDUCTOR THICKNESS OF INSULATION THICKNESS OF OUTER SHEATH OVERALL DIAMETER MAXIMUM CONDUCTOR RESISTANCE (AT 20°C) CABLE WEIGHT
    NOMINAL CROSS- SECTIONAL AREA NO.& DIA. OF  WIRES DIAMETER
    MM² MM MM MM MM MM OHM/KM KG/KM
    2 1.5 7/0.53 1.59 0.8 1.8 12 12.1 160
    2.5 7/0.67 2.01 0.8 1.8 13 7.41 190
    4 7/0.85 2.55 1 1.8 14.5 4.61 260
    6 7/1.04 3.12 1 1.8 16 3.08 320
    10 7/1.35 4.05 1 1.8 17.5 1.83 430
    3 1.5 7/0.53 1.59 0.8 1.8 12.5 12.1 190
    2.5 7/0.67 2.01 0.8 1.8 13.5 7.41 240
    4 7/0.85 2.55 1 1.8 15.5 4.61 330
    6 7/1.04 3.12 1 1.8 17 3.08 410
    10 7/1.35 4.05 1 1.8 18.5 1.83 570
    4 1.5 7/0.53 1.59 0.8 1.8 13.5 12.1 230
    2.5 7/0.67 2.01 0.8 1.8 14.5 7.41 290
    4 7/0.85 2.55 1 1.8 16.5 4.61 410
    6 7/1.04 3.12 1 1.8 18 3.08 520
    10 7/1.35 4.05 1 1.8 20.5 1.83 720
    5 1.5 7/0.53 1.59 0.8 1.8 14.5 12.1 270
    2.5 7/0.67 2.01 0.8 1.8 15.5 7.41 340
    4 7/0.85 2.55 1 1.8 18 4.61 490
    6 7/1.04 3.12 1 1.8 19.5 3.08 630
    10 7/1.35 4.05 1 1.8 22.5 1.83 870
    6 1.5 7/0.53 1.59 0.8 1.8 15.5 12.1 310
    2.5 7/0.67 2.01 0.8 1.8 16.5 7.41 400
    4 7/0.85 2.55 1 1.8 19.5 4.61 580
    6 7/1.04 3.12 1 1.8 21.5 3.08 740
    10 7/1.35 4.05 1 1.8 24.5 1.83 1040
    7 1.5 7/0.53 1.59 0.8 1.8 15.5 12.1 340
    2.5 7/0.67 2.01 0.8 1.8 16.5 7.41 430
    4 7/0.85 2.55 1 1.8 19.5 4.61 630
    6 7/1.04 3.12 1 1.8 21.5 3.08 810
    10 7/1.35 4.05 1 1.8 24.5 1.83 1150
    8 1.5 7/0.53 1.59 0.8 1.8 16.5 12.1 390
    2.5 7/0.67 2.01 0.8 1.8 17.5 7.41 490
    4 7/0.85 2.55 1 1.8 21.5 4.61 730
    6 7/1.04 3.12 1 1.8 23.5 3.08 940
    10 7/1.35 4.05 1 1.8 26.5 1.83 1330
    10 1.5 7/0.53 1.59 0.8 1.8 18.5 12.1 470
    2.5 7/0.67 2.01 0.8 1.8 20.5 7.41 600
    4 7/0.85 2.55 1 1.8 24.5 4.61 890
    6 7/1.04 3.12 1 1.8 26.5 3.08 1150
    10 7/1.35 4.05 1 1.8 30.5 1.83 1640
    12 1.5 7/0.53 1.59 0.8 1.8 18.5 12.1 530
    2.5 7/0.67 2.01 0.8 1.8 20.5 7.41 690
    4 7/0.85 2.55 1 1.8 25.5 4.61 1030
    6 7/1.04 3.12 1 1.8 27.5 3.08 1330
    10 7/1.35 4.05 1 1.8 31.5 1.83 1910
    15 1.5 7/0.53 1.59 0.8 1.8 20.5 12.1 640
    2.5 7/0.67 2.01 0.8 1.8 22.5 7.41 830
    4 7/0.85 2.55 1 1.8 27.5 4.61 1250
    6 7/1.04 3.12 1 1.8 29.5 3.08 1630
    20 1.5 7/0.53 1.59 0.8 1.8 22 12.1 820
    2.5 7/0.67 2.01 0.8 1.8 25.0 7.41 1070
    4 7/0.85 2.55 1 1.8 30.0 4.61 1630
    6 7/1.04 3.12 1 1.8 33 3.08 2130
    30 1.5 7/0.53 1.59 0.8 1.8 26 12.1 1160
    2.5 7/0.67 2.01 0.8 1.8 29 7.41 1540
    4 7/0.85 2.55 1 1.9 36 4.61 2370
