    Application and Description

    CE cables are used for general purpose power distribution in wet or dry locations, installed in air, in conduit or duct, or directly buried.

    Reference Standard

    IEC 60502-1

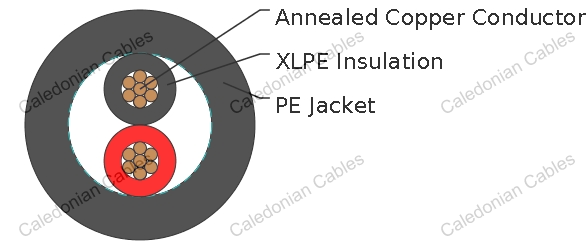

    Cable Construction

    Conductor Circle or circle compacted stranded annealed copper wires
    Insulation Cross-linked polyethylene(XLPE)
    Color 2-4 cores : Black, White, Red and Green
    More than 4 cores : Black core with marking numbers
    Filler Non-hygroscopic material(optional)
    Binding tape Polyester (Mylar) tape (optional)
    Sheath Polyethylene(PE), Black color.(A special flame retardant sheath can be supplied)

    Technical Characteristics

    Maximum conductor temperature 90°C

    Circuit voltage not exceeding 600 volts

    Test voltage 3500 volts

    Cable Parameter

    NOMINAL SECTIONAL AREA NO. OF WIRE DIAMETER OF CONDUCTOR (APPROX.) THICKNESS OF INSULATION THICKNESS OF SHEATH OVERALL DIAMETER (APPROX.) MAXIMUM DC. RESISTANCE OF CDR. AT 20°C CABLE WEIGHT (APPROX.)
    MM² MM MM MM MM OHM/KM KG/KM
    1 core
    1.5 7/0.53 1.59 0.7 1.4 6.3 12.1 40
    2.5 7/0.67 2.01 0.7 1.4 6.7 7.41 55
    4 7/0.85 2.55 0.7 1.4 7.2 4.61 70
    6 7/1.04 3.12 0.7 1.4 7.8 3.08 90
    10 7/1.35 4.05 0.7 1.4 9.4 1.83 150
    16 compacted 4.7 0.7 1.4 10.0 1.15 180
    25 compacted 5.9 0.9 1.4 12.0 0.727 280
    35 compacted 6.9 0.9 1.4 13.0 0.524 370
    50 compacted 8.1 1.0 1.4 14.5 0.387 480
    70 compacted 9.8 1.1 1.4 16.0 0.268 680
    95 compacted 11.4 1.1 1.5 18.5 0.193 920
    120 compacted 12.9 1.2 1.5 20 0.153 1,150
    150 compacted 14.4 1.4 1.6 22 0.124 1,420
    185 compacted 15.9 1.6 1.6 24 0.0991 1,770
    240 compacted 18.3 1.7 1.7 27 0.0754 2,310
    300 compacted 20.5 1.8 1.8 30 0.0601 2,880
    400 * 23.2 2.0 1.9 34 0.0470 3,680
    500 * 26.4 2.2 2.0 37 0.0366 4,710
    630 * 30.2 2.4 2.2 42 0.0283 6,060
    2 cores
    1.5 7/0.53 1.59 0.7 1.8 11.0 12.1 90
    2.5 7/0.67 2.01 0.7 1.8 12.0 7.41 120
    4 7/0.85 2.55 0.7 1.8 13.0 4.61 160
    6 7/1.04 3.12 0.7 1.8 14.0 3.08 210
    10 7/1.35 4.05 0.7 1.8 17.0 1.83 290
    16 compacted 4.7 0.7 1.8 18.5 1.15 400
    25 compacted 5.9 0.9 1.8 22.0 0.727 600
    35 compacted 6.9 0.9 1.8 24.0 0.524 820
    50 compacted 8.1 1.0 1.8 27 0.387 1,080
    70 compacted 9.8 1.1 1.8 31 0.268 1,520
    95 compacted 11.4 1.1 1.9 35 0.193 2,070
    120 compacted 12.9 1.2 2.0 38 0.153 2,550
    150 compacted 14.4 1.4 2.2 43 0.124 3,160
    185 compacted 15.9 1.6 2.3 47 0.0991 3,940
    240 compacted 18.3 1.7 2.5 53 0.0754 5,130
    300 compacted 20.5 1.8 2.6 58 0.0601 6,380
    3 cores
    1.5 7/0.53 1.59 0.7 1.8 11.5 12.1 120
    2.5 7/0.67 2.01 0.7 1.8 12.5 7.41 150
    4 7/0.85 2.55 0.7 1.8 13.5 4.61 210
    6 7/1.04 3.12 0.7 1.8 14.5 3.08 280
    10 7/1.35 4.05 0.7 1.8 18.0 1.83 410
    16 compacted 4.7 0.7 1.8 19.5 1.15 560
    25 compacted 5.9 0.9 1.8 23 0.727 840
    35 compacted 6.9 0.9 1.8 25 0.524 1,140
    50 compacted 8.1 1.0 1.8 29 0.387 1,480
    70 compacted 9.8 1.1 1.9 33 0.268 2,100
    95 compacted 11.4 1.1 2.0 37 0.193 2,850
    120 compacted 12.9 1.2 2.1 41 0.153 3,640
    150 compacted 14.4 1.4 2.3 46 0.124 4,500
    185 compacted 15.9 1.6 2.4 50 0.0991 5,630
    240 compacted 18.3 1.7 2.6 57 0.0754 7,330
    300 compacted 20.5 1.8 2.7 62 0.0601 9,110
    4 cores
    1.5 7/0.53 1.59 0.7 1.8 12.5 12.1 140
    2.5 7/0.67 2.01 0.7 1.8 13.5 7.41 190
    4 7/0.85 2.55 0.7 1.8 14.5 4.61 260
    6 7/1.04 3.12 0.7 1.8 16.0 3.08 340
    10 7/1.35 4.05 0.7 1.8 20 1.83 530
    16 compacted 4.7 0.7 1.8 22 1.15 730
    25 compacted 5.9 0.9 1.8 26 0.727 1,110
    35 compacted 6.9 0.9 1.8 28 0.524 1,480
    50 compacted 8.1 1.0 1.9 32 0.387 1,970
    70 compacted 9.8 1.1 2.0 36 0.268 2,820
    95 compacted 11.4 1.1 2.1 42 0.193 3,830
    120 compacted 12.9 1.2 2.3 46 0.153 4,810
    150 compacted 14.4 1.4 2.4 51 0.124 5,940
    185 compacted 15.9 1.6 2.6 56 0.0991 7,430
    240 compacted 18.3 1.7 2.8 63 0.0754 9,670
    300 compacted 20.5 1.8 3.0 70 0.0601 12,040
