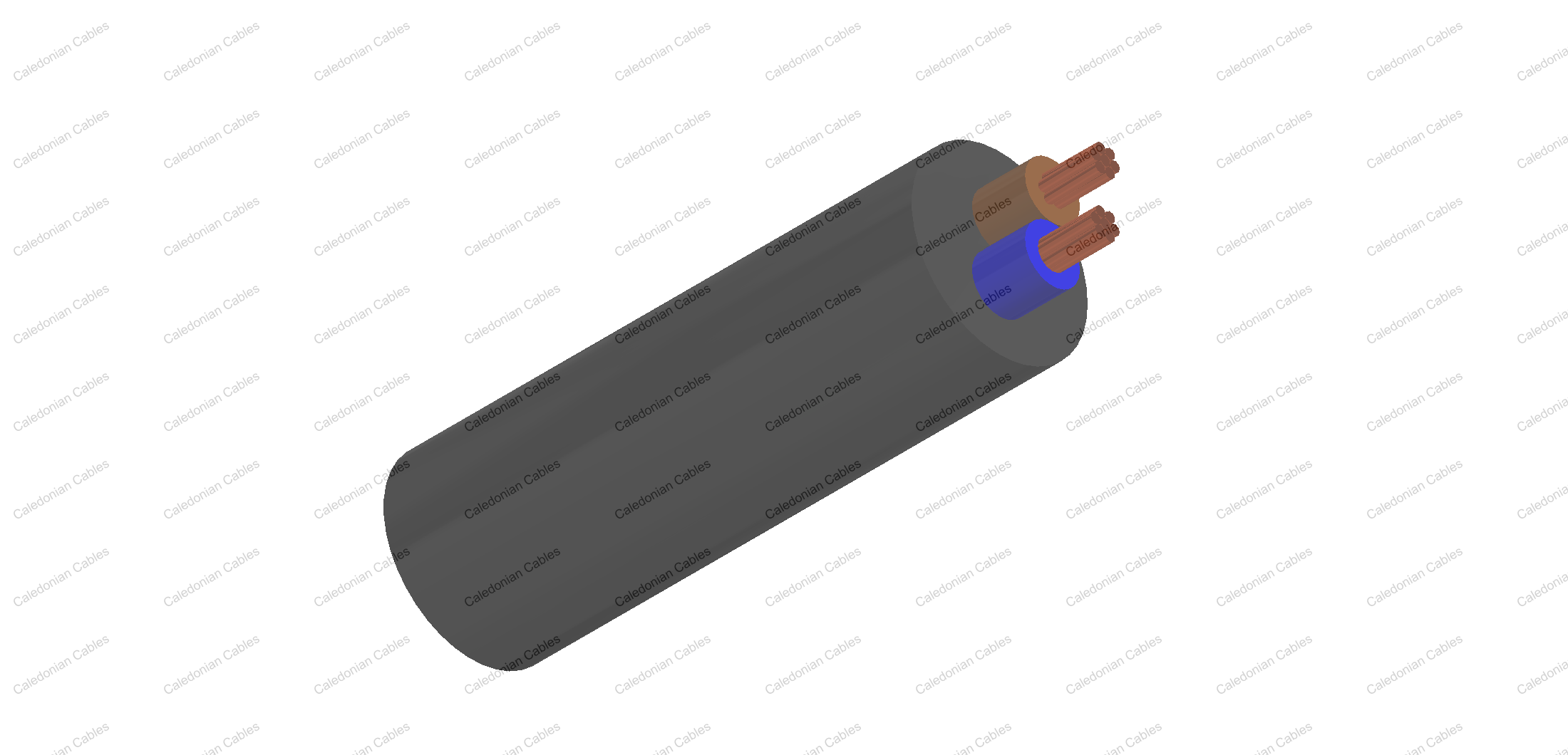

    Two-core 600/1000V XLPE Insulation, LSZH Sheath Cables to BS 8573

    Application

    These XLPE insulated and LSZH sheathed cables are generally used for fixed installation. Suitable for building wiring, especially in areas where smoke and fume emissions may cause a potential threat to life but not for burial in the ground, either directly or in ducts.

    Standard

    Basic design to BS 8573:2012

    Fire Performance

    Flame Retardance (Single Vertical Wire Test) BS EN 60332-1-2:2004
    Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) BS EN 60332-3-24:2009 (cat. C)
    Halogen Free BS EN 50267-2-1
    Minimum Smoke Emission BS EN 61034-2
    Spark Test BS EN 62230

    Voltage Rating

    600/1000V

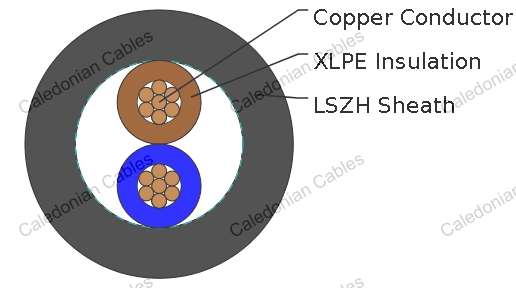

    Construction

    Conductor : Annealed copper conductor, strand according to BS EN 60228 class 2.

    Insulation : XLPE type GP8 according to BS 7655-1.3. HEPR type GP6 according to BS 7655-1.2, or crosslinked polyolefin material type EI 5 according to BS EN 50363-5 can be offered as option.

    Inner Covering option : The laid up cores may be coverd by an optional extrued inner covering or separating tape. It shall be possible to separate the cores easily.

    Outer Sheath : Thermoplastic LSZH type LTS 4 according to BS 7655-6.1.

    Outer Sheath option : UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option.

    Color Code

    Insulation Colour : Brown and blue

    Sheath Colour : Black, other colours can be offered upon request.

    Physical And Thermal Properties

    Maximum temperature range during operation (XLPE) : 90°C

    Maximum short circuit temperature (5 Seconds) : 250°C

    Minimum bending radius:

    Circular copper conductors(up to 25mm²) : 4 x Overall Diameter

    Circular copper conductors(above 25mm²) : 6 x Overall Diameter

    Shaped copper conductors : 8 x Overall Diameter

    Construction Parameters

    Conductor Nominal Insulation Thickness Nominal Inner Covering Thickness Nominal Sheath Thickness
    No. of Cores x Cross Section Class of Conductor
    No. x mm²   mm mm mm
    2x1.5 2 0.7 0.4 1.8
    2x2.5 2 0.7 0.4 1.8
    2x4.0 2 0.7 0.4 1.8
    2x6.0 2 0.7 0.4 1.8
    2x10 2 0.7 0.6 1.8
    2x16 2 0.7 0.6 1.8
    2x25 2 0.9 0.8 1.8
    2x35 2 0.9 0.8 1.8
    2x50 2 1.0 1.0 1.8
    2x70 2 1.1 1.0 1.8
    2x95 2 1.1 1.2 1.9
    2x120 2 1.2 1.2 2.0
    2x25 2 0.9 0.6 1.8
    2x35 2 0.9 0.6 1.8
    2x50 2 1.0 0.8 1.8
    2x70 2 1.1 0.8 1.8
    2x95 2 1.1 1.0 1.9
    2x120 2 1.2 1.0 2.0
