    Thermosetting insulated, single-core, sheathed cables

    APPLICATION AND DESCRIPTION

    These single core cables are designed for fixed wiring purposes in domestic and industrial power/lighting applications. Can be used in trunking or conduit, or may be surface mounted when used for earthing. and generally in areas (such as public and government buildings) where smoke and toxic fumes may cause a threat to life and equipment. The cables produce no corrosive gasses when burnt which is particularly important where electronic equipment is installed.

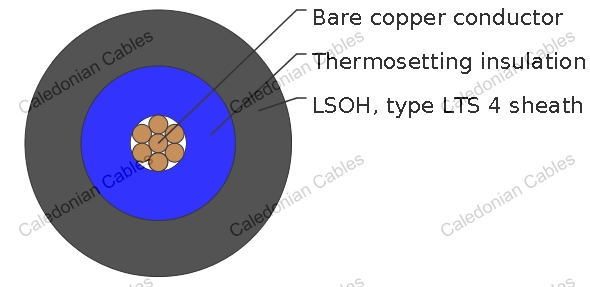

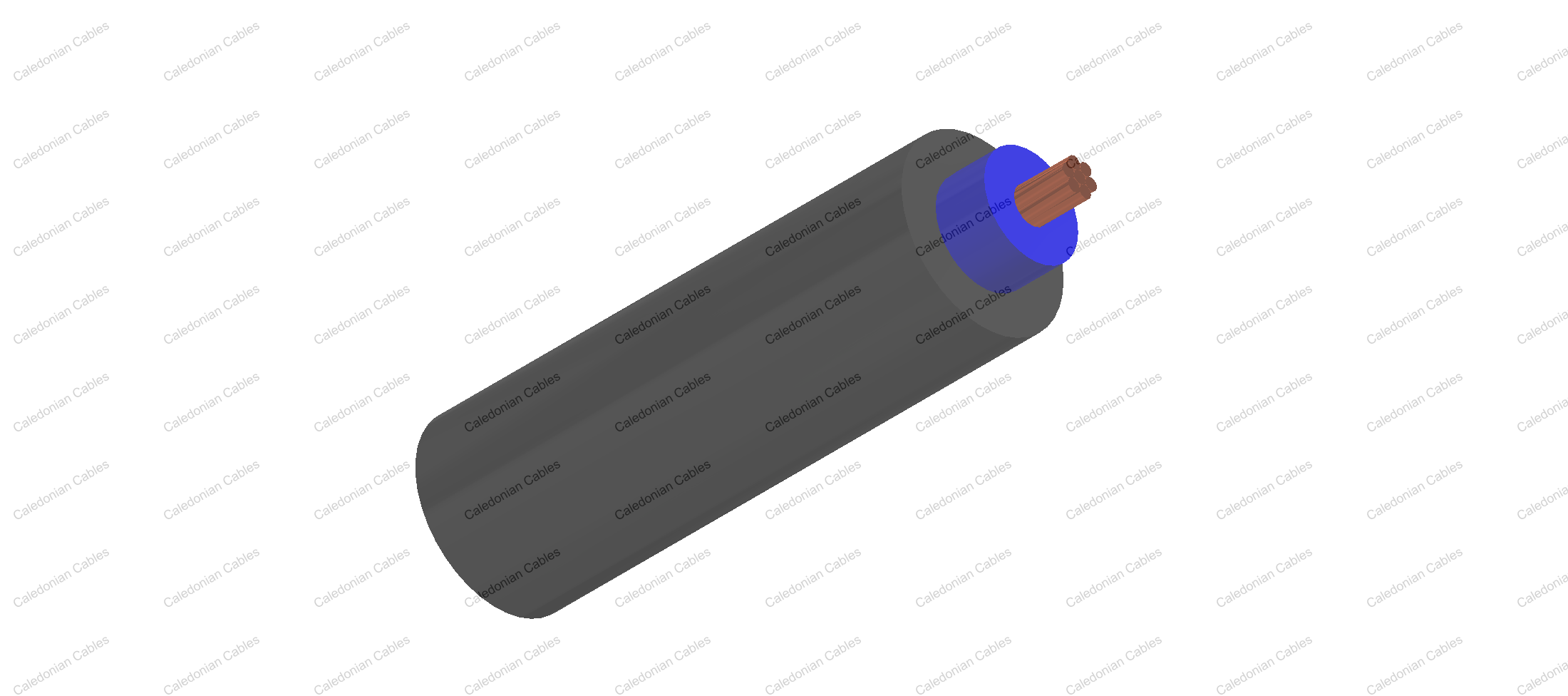

    CABLE CONSTRUCTION

    Fine bare copper strands

    Strands to IEC 60228 Cl-1 or 2

    Thermosetting core insulation type EI5 or GP 8

    Core identification : brown or blue

    LSOH sheath, type LTS 4

    TECHNICAL CHARACTERISTICS

    Working voltage : 450/750v

    Test voltage : 2500 volts

    Flexing bending radius : 15 x Ø

    Static bending radius : 10 x Ø

    Flexing temperature : -25º C to +90º C

    Short circuit temperature : +250º C

    Flame retardant : IEC 60332.1

    Insulation resistance : 10 MΩ x km

    Smoke density acc. to EN 50268 / IEC 61034

    Corrosiveness of combustion gases acc. to EN 50267-2-2, IEC 60754-2

    Flame test : flame-retardant acc. to EN 50265-2-1, IEC 60332.1

    CABLE PARAMETER

    AWG No. Of Cores × Nominal Cross Sectional Area Nominal Thickness Of Insulation Nominal Thickness Of Sheath Nominal Overall Diameter Nominal Weight Minimum Insulation Resistance At 90 °C
    # × mm² mm mm mm kg/km mΩ·km
    17 1 × 1.0 0.7 0.8 3.9-4.8 26 0.011
    17(7/26) 1 × 1.0 0.7 0.8 4-4.9 31 0.011
    16 1 × 1.5 0.7 0.8 4.2-5 34 0.011
    16(7/24) 1 × 1.5 0.7 0.8 4.3-5.2 39 0.010
    14 1 × 2.5 0.7 0.8 4.6-5.5 46 0.0092
    14(7/22) 1 × 2.5 0.7 0.8 4.7-5.6 51 0.0084
    12 1 × 4 0.7 0.8 5.0-6.0 65 0.0077
    12(7/20) 1 × 4 0.7 0.9 5.3-6.4 72 0.0070
    10 1 × 6 0.7 0.9 5.7-6.8 90 0.0065
    10(7/18) 1 × 6 0.7 0.9 5.9-7.1 99 0.0059
    8(7/16) 1 × 10 0.7 0.9 6.7-8.1 141 0.0047
    6(7/14) 1 × 16 0.7 0.9 7.6-9.2 205 0.0039
    4(7/12) 1 × 25 0.9 1.0 9.4-11.4 318 0.0039
    2(7/10) 1 × 35 0.9 1.1 10.6-12.8 482 0.0034
