    Multi-core 600/1000V cables with stranded copper conductors

    • Caledonian BS6724 Cable

    APPLICATION

    These cables are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside buildings or for direct burial in the ground. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment.

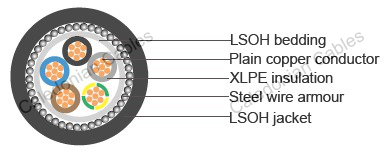

    CONSTRUCTION

    Conductor Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228.
    Insulation XLPE (Cross-Linked Polyethylene) Type GP 8 or ethylene propylene rubber (GP 6)
    Colour Code 1 Core : Brown
    2 Cores : Brown or Blue
    3 Cores : Brown, Black, Grey
    4 Cores : Blue, Brown, Black, Grey
    5 Cores : Green/Yellow, Blue, Brown, Black, Grey
    Above 5 Cores : White Cores with black numbers
    Bedding LSOH (Low Smoke Zero Halogen)
    Armour Single Core : AWA (Aluminum Wire Armour)
    Multi Core : SWA (Steel Wire Armour)
    Outer Sheath LSOH (Low Smoke Zero Halogen)

    TECHNICAL INFORMATION

    Voltage rating 600/1000V
    Temperature rating 0°C to +90°C
    Bending radius 1.5mm² to 16mm² : 6 x overall diameter
    25mm² and above : 8 x overall diameter
    Flame retardant IEC60332 part 1, BS4066 part 1
    Halogen free IEC 60754, EN 50267
    Smoke density IEC 61034, EN50268

    CABLE PARAMETER

    Nominal Cross-sectional Area Strand Type Nominal Insulation Thickness Nominal Bedding Thickness Nominal Steel Wire Armor dia. Nominal Sheath Thickness Approx. Overall Diameter Aprrox. Weight
    mm² No./mm mm mm mm mm mm kg/km
    7x1.5 7/0.53 0.6 0.8 0.9 1.4 15.2 500
    12x1.5 7/0.53 0.6 0.8 1.25 1.5 19.4 820
    19x1.5 7/0.53 0.6 0.8 1.25 1.6 22.2 1080
    27x1.5 7/0.53 0.6 1 1.6 1.7 26.7 1550
    37x1.5 7/0.53 0.6 1 1.6 1.7 29 1850
    48x1.5 7/0.53 0.6 1 1.6 1.8 32.7 2250
    7x2.5 7/0.67 0.7 0.8 0.9 1.4 17.1 730
    12x2.5 7/0.67 0.7 0.8 1.25 1.6 22.4 1020
    19x2.5 7/0.67 0.7 1 1.6 1.7 26.6 1530
    27x2.5 7/0.67 0.7 1 1.6 1.8 30.7 1960
    37x2.5 7/0.67 0.7 1 1.6 1.8 33.8 2450
    48x2.5 7/0.67 0.7 1.2 2 2 39.3 3260
    7x4 7/0.85 0.7 0.8 1.25 1.5 19.7 840
    12x4 7/0.85 0.7 1 1.6 1.6 25.7 1390
    19x4 7/0.85 0.7 1 1.6 1.7 29.3 1850
    27x4 7/0.85 0.7 1 1.6 1.9 34.4 2350
    37x4 7/0.85 0.7 1.2 2 2 39.2 2800
    48x4 7/0.85 0.7 1.2 2 2.1 44.1 3250

    The number of cores can be ordered upon request.
