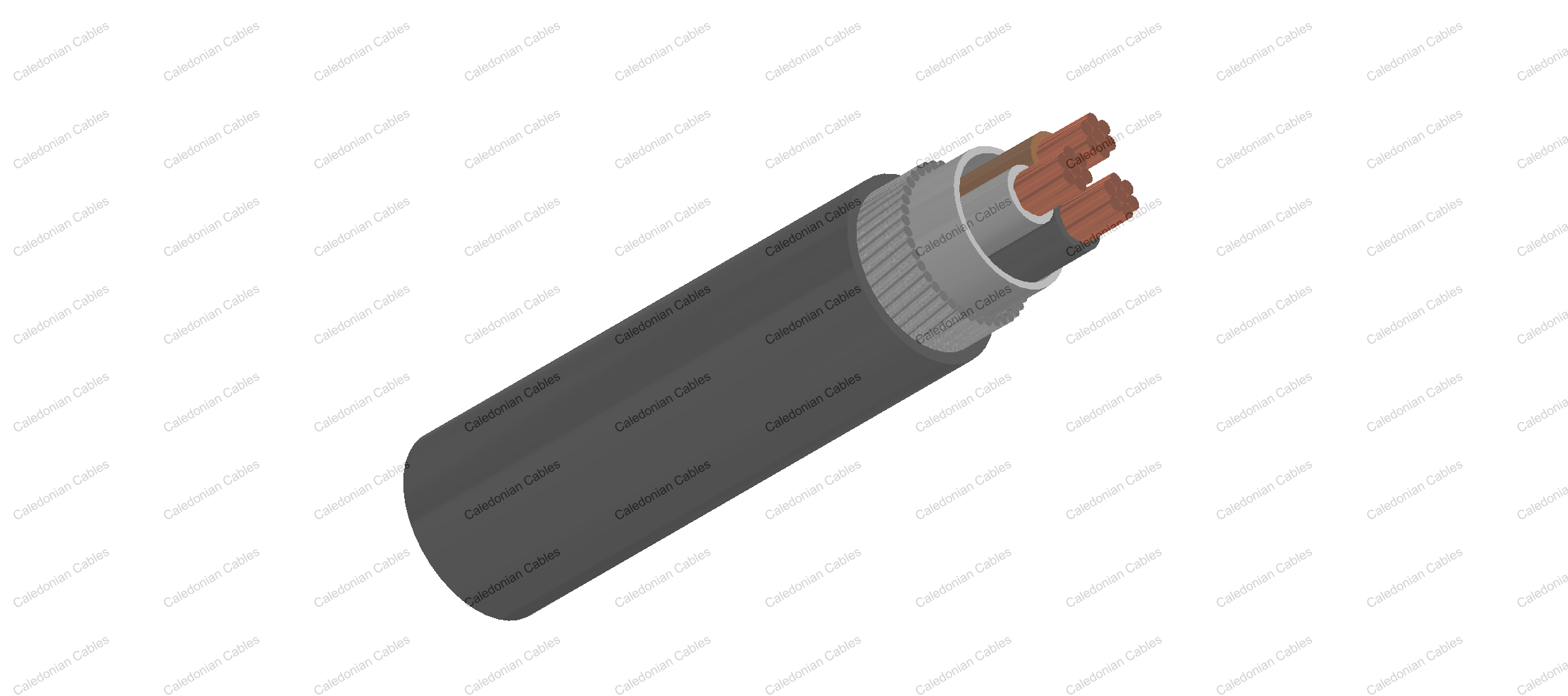

    Three-core 600/1000V cables with stranded copper conductors

    APPLICATION

    These power and control cables are used for electricity supply in low voltage installation system. They are well adapted to underground use in industrial applications where chemical and mechanical protections are needed (refinery areas, chemical plant...).

    CONSTRUCTION

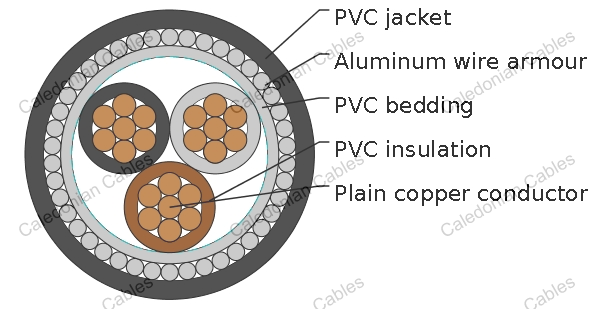

    Conductor Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228.
    Insulation PVC(Polyvinyl Chloride) type TI1
    Colour Code 1 Core : Brown
    2 Cores : Brown or Blue
    3 Cores : Brown, Black, Grey
    4 Cores : Blue, Brown, Black, Grey
    5 Cores : Green-yellow, Blue, Brown, Black, Grey
    Above 5 Cores : White Cores with black numbers
    Filler(optional) PVC or Polypropylene yarn
    Binder Tape(optional) Polyester (Mylar) tape
    Inner Sheath/Bedding PVC (Polyvinyl Chloride)
    Armour Single Core : AWA (Aluminum Wire Armour)
    Multi Core : SWA (Steel Wire or Tape Armour)
    Outer Sheath PVC(Polyvinyl Chloride), type TM1

    TECHNICAL INFORMATION

    Voltage rating 600/1000V
    Temperature rating -20°C to +60°C
    Bending radius Single core : 10 x overall diameter
    Multicores : 8 x overall diameter
    Flame retardant IEC60332 part 1, BS4066 part 1

    CABLE PARAMETER

    Nominal cross-sectional area Number/wire Nominal insulation thickness Nominal bedding thickness Nominal wire armor dia. Nominal sheath thickness Approx. overall diameter Approx.cable weight
    extruded bedding taped bedding
    mm² No./mm mm mm mm mm mm mm kg/km
    3x1.5 7/0.53 0.6 0.8 0.9 1.4 12.8 - 307
    3x2.5 7/0.67 0.7 0.8 0.9 1.4 14.1 - 387
    3x4.0 7/0.85 0.8 0.8 0.9 1.4 15.8 - 493
    3x6.0 7/1.04 0.8 0.8 1.25 1.5 18.0 - 701
    3x10 7/1.35 1.0 0.8 1.25 1.6 21.2 - 967
    3x16 7/1.70 1.0 0.8 1.25 1.6 23.1 23.1 1219
    3x25 7/2.14 1.2 1.0 1.6 1.7 28.2 27.8 1612
    3x25* 7/2.14 1.2 1.0 1.6 1.7 25.0 24.6 1612
    3x35 19/1.53 1.2 1.0 1.6 1.8 30.8 30.4 1992
    3x35* 19/1.53 1.2 1.0 1.6 1.8 27.1 26.7 1992
    3x50* 19/1.78 1.4 1.0 1.6 1.9 30.5 30.1 2534
    3x70* 19/2.14 1.4 1.2 2.0 2.0 35.0 34.2 3518
    3x95* 19/2.52 1.6 1.2 2.0 2.1 39.3 38.5 4510
    3x120* 37/2.03 1.6 1.2 2.0 2.2 42.2 41.4 5375
    3x150* 37/2.25 1.8 1.4 2.5 2.4 47.5 46.3 6810
    3x185* 37/2.52 2.0 1.4 2.5 2.5 51.9 50.7 8190
    3x240* 61/2.25 2.2 1.6 2.5 2.6 57.8 56.2 10280
    3x300* 61/2.52 2.4 1.6 2.5 2.8 63.2 61.6 12430
    3x400* 61/2.85 2.6 1.6 2.5 3.0 69.6 68.0 15400

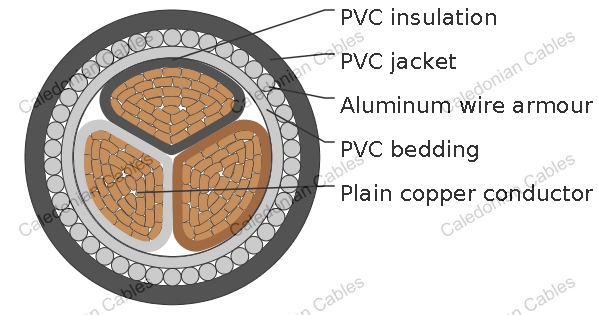

    *Shaped stranded conductor (class 2)
