    S107 (Formerly S13) BU(i) 250 V

    Applications

    These cables are fire resistant, flame retardant, low smoke and halogen free, used for instrumentation, communication, control and alarm systems.

    Standards

    IEC 60092-376

    IEC 60092-360

    IEC 60331-21

    IEC 60332-1

    IEC 60332-3-22

    IEC 60754-1,2

    IEC 61034-1,2

    NEK 606:2016

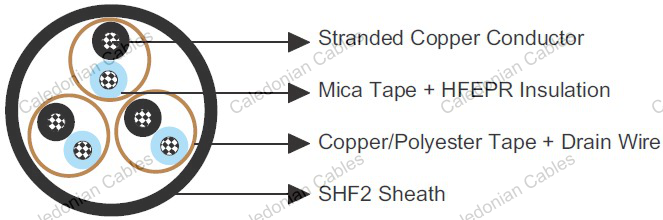

    Construction

    Conductors : Circular tinned annealed stranded copper wire to IEC 60228 class 2 or class 5.

    Insulation : Mica tape + Halogen free EPR compound or Mica tape + XLPE.

    Twinning : Colour coded cores twisted together.

    Individual Shielding : Each pairs/triples are screened by copper backed polyester tape in contact with a stranded tinned copper drain wire and wrapped with polyester tape. Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors.

    Outer Sheath : Halogen free thermosetting compound, SHF2, coloured grey (blue for intrinsically safe).

    Electrical Characteristics

    Nominal Cross Section Area mm² 0.75 1.0 1.5 2.5
    Nominal Conductor Diameter mm 1.1 1.3 1.6 2.0
    Maximum Resistant@20℃ Ω/km 26.3 19.3 12.9 8.02
    Mutual Capacitance nF/km 85 95 100 110
    Nominal Inductance@1KHz MH/km 0.731 0.691 0.673 0.629
    Maximum L/R@1KHz μH/Ω 20 25 35 55
    Operating Voltage V 250 250 250 250

    Mechanical and Thermal Properties

    Bending Radius : 8×OD (during installation); 6×OD (fixed installed)

    Temperature Range : -20℃ ~ +90℃

    Dimensions and Weight

    Construction No. of elements × No. of cores in element × Cross section Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
    mm² mm mm mm kg/km
    1×2×0.75 0.6 1.0 8.2 105
    2×2×0.75 0.6 1.2 10.5 205
    4×2×0.75 0.6 1.2 13.2 290
    7×2×0.75 0.6 1.4 16.0 445
    8×2×0.75 0.6 1.4 17.3 495
    12×2×0.75 0.6 1.6 21.1 705
    16×2×0.75 0.6 1.7 23.5 915
    19×2×0.75 0.6 1.8 24.8 1035
    24×2×0.75 0.6 1.9 28.6 1320
    32×2×0.75 0.6 2.0 31.7 1670
    1×3×0.75 0.6 1.0 8.6 120
    2×3×0.75 0.6 1.2 12.0 205
    3×3×0.75 0.6 1.2 13.8 300
    4×3×0.75 0.6 1.3 15.1 365
    7×3×0.75 0.6 1.5 18.3 560
    8×3×0.75 0.6 1.5 19.5 650
    12×3×0.75 0.6 1.7 24.4 915
    16×3×0.75 0.6 1.8 27.3 1185
    19×3×0.75 0.6 1.9 29.0 1360
    24×3×0.75 0.6 2.1 33.7 1750
    1×2×1.0 0.6 1.0 8.6 125
    2×2×1.0 0.6 1.2 11.1 240
    4×2×1.0 0.6 1.3 14.0 345
    7×2×1.0 0.6 1.5 16.9 525
    8×2×1.0 0.6 1.5 18.5 600
    12×2×1.0 0.6 1.6 22.3 840
    16×2×1.0 0.6 1.6 24.9 1095
    19×2×1.0 0.6 1.8 26.5 1255
    24×2×1.0 0.6 1.9 30.5 1605
    32×2×1.0 0.6 2.0 33.8 2030
    1×3×1.0 0.6 1.0 9.1 140
    3×3×1.0 0.6 1.3 14.7 360
    4×3×1.0 0.6 1.3 16.1 440
    7×3×1.0 0.6 1.6 19.7 695
    12×3×1.0 0.6 1.7 26.0 1115
    16×3×1.0 0.6 1.8 29.2 1455
    19×3×1.0 0.6 1.9 31.0 1675
    24×3×1.0 0.6 2.1 36.1 2145
    1×2×1.5 0.7 1.0 9.6 155
    2×2×1.5 0.7 1.3 12.6 310
    4×2×1.5 0.7 1.4 16.1 450
    7×2×1.5 0.7 1.6 19.4 690
    8×2×1.5 0.7 1.6 21.3 780
    12×2×1.5 0.7 1.7 25.7 1100
    16×2×1.5 0.7 1.9 28.9 1450
    19×2×1.5 0.7 2.0 30.5 1645
    24×2×1.5 0.7 2.2 35.3 2115
    32×2×1.5 0.7 2.3 39.1 2680
    1×3×1.5 0.7 1.1 10.1 175
    2×3×1.5 0.7 1.3 14.5 320
    3×3×1.5 0.7 1.3 16.8 470
    4×3×1.5 0.7 1.4 18.4 580
    7×3×1.5 0.7 1.7 22.6 910
    8×3×1.5 0.7 1.7 23.5 1030
    12×3×1.5 0.7 1.9 30.0 1475
    16×3×1.5 0.7 2.0 33.6 1925
    19×3×1.5 0.7 2.1 35.7 2210
    24×3×1.5 0.7 2.4 41.7 2855
    1×2×2.5 0.7 1.1 10.5 190
    1×3×2.5 0.7 1.3 11.0 220
