    S104 (Formerly S4 or S4/S8) BFOU(c) 250V

    Applications

    These cables are fire resistant, flame retardant, low smoke, halogen free and mud resistant, used for instrumentation, communication, control and alarm systems.

    Standards :

    IEC 60092-376

    IEC 60092-360

    IEC 60331-21

    IEC 60332-1

    IEC 60332-3-22

    IEC 60754-1,2

    IEC 61034-1,2

    NEK 606:2016

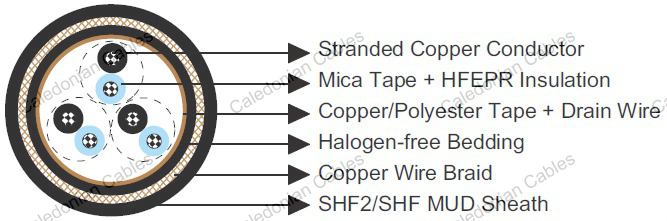

    Construction

    Conductors : Circular tinned annealed stranded copper wire to IEC 60228 class 2 or class 5.

    Insulation : Mica tape + Halogen free EPR compound or Mica tape + XLPE.

    Twinning : Colour coded cores twisted together.

    Collective Shielding : Pairs/triples are layed up and collectively screened by copper backed polyester tape in contact with a stranded tinned copper drain wire. Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors.

    Bedding : Halogen free compound.

    Armour : Tinned copper wire braid.

    Outer Sheath : Halogen free thermosetting compound, SHF2 (formerly TYPE S4). Halogen free MUD resistant thermosetting compound, SHF MUD (for formerly TYPE S4/S8), coloured grey (blue for intrinsically safe).

    Electrical Characteristics

    Nominal Cross Section Area mm² 0.75 1.0 1.5 2.5
    Nominal Conductor Diameter mm 1.1 1.3 1.6 2.0
    Maximum Resistant@20℃ Ω/km 26.3 19.3 12.9 8.02
    Mutual Capacitance nF/km 75 80 85 95
    Nominal Inductance@1KHz MH/km 0.727 0.686 0.667 0.623
    Maximum L/R@1KHz μH/Ω 20 25 35 55
    Operating Voltage V 250 250 250 250

    Mechanical and Thermal Properties

    Bending Radius : 8×OD (during installation); 6×OD (fixed installed)

    Temperature Range : -20℃ ~ +90℃

    Dimensions and Weight

    Construction No. of elements × No. of cores in element × Cross section Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
    Inner Outer
    mm² mm mm mm mm kg/km
    1×2×0.75 0.6 1.1 1.2 12.1 230
    2×2×0.75 0.6 1.1 1.3 16.4 340
    3×2×0.75 0.6 1.1 1.4 17.2 495
    4×2×0.75 0.6 1.1 1.4 18.2 555
    5×2×0.75 0.6 1.1 1.5 19.8 640
    6×2×0.75 0.6 1.1 1.5 21.2 725
    7×2×0.75 0.6 1.1 1.5 21.2 740
    8×2×0.75 0.6 1.1 1.6 23.1 805
    9×2×0.75 0.6 1.1 1.6 24.3 880
    10×2×0.75 0.6 1.1 1.7 25.6 900
    12×2×0.75 0.6 1.1 1.7 26.2 950
    14×2×0.75 0.6 1.1 1.7 27.3 1035
    15×2×0.75 0.6 1.1 1.8 29.2 1130
    16×2×0.75 0.6 1.1 1.8 29.7 1175
    18×2×0.75 0.6 1.1 1.9 31.3 1275
    19×2×0.75 0.6 1.1 1.9 31.6 1315
    20×2×0.75 0.6 1.2 2.0 33.3 1475
    21×2×0.75 0.6 1.2 2.0 34.1 1530
    23×2×0.75 0.6 1.2 2.0 34.6 1635
    24×2×0.75 0.6 1.2 2.1 36.8 1730
    27×2×0.75 0.6 1.2 2.1 37.5 1850
    30×2×0.75 0.6 1.2 2.2 38.9 1965
    33×2×0.75 0.6 1.2 2.2 40.3 2155
    37×2×0.75 0.6 1.2 2.3 41.7 2325
    1×3×0.75 0.6 1.1 1.2 12.6 255
    2×3×0.75 0.6 1.1 1.4 17.7 545
    3×3×0.75 0.6 1.1 1.4 18.3 585
    4×3×0.75 0.6 1.1 1.5 19.7 670
    5×3×0.75 0.6 1.1 1.5 21.2 770
    6×3×0.75 0.6 1.1 1.6 23.5 900
    7×3×0.75 0.6 1.1 1.6 23.5 935
    8×3×0.75 0.6 1.1 1.7 25.2 1015
    9×3×0.75 0.6 1.1 1.7 26.7 1135
    10×3×0.75 0.6 1.1 1.8 28.7 1140
    12×3×0.75 0.6 1.1 1.8 29.6 1230
    14×3×0.75 0.6 1.1 1.9 31.0 1375
    15×3×0.75 0.6 1.1 1.9 31.9 1455
    16×3×0.75 0.6 1.2 2.0 33.3 1545
    18×3×0.75 0.6 1.2 2.0 34.8 1690
    19×3×0.75 0.6 1.2 2.0 35.1 1750
    20×3×0.75 0.6 1.2 2.1 36.6 1985
    21×3×0.75 0.6 1.2 2.1 37.3 2055
    23×3×0.75 0.6 1.2 2.2 38.8 2215
    24×3×0.75 0.6 1.2 2.2 39.5 2245
    27×3×0.75 0.6 1.2 2.3 41.5 2435
    30×3×0.75 0.6 1.2 2.3 43.3 2645
    32×3×0.75 0.6 1.4 2.4 44.9 2840
    1×2×1.0 0.6 1.1 1.2 12.5 245
    2×2×1.0 0.6 1.1 1.4 17.2 375
    3×2×1.0 0.6 1.1 1.4 17.9 550
    4×2×1.0 0.6 1.1 1.4 19.0 615
    5×2×1.0 0.6 1.1 1.5 20.6 710
    6×2×1.0 0.6 1.1 1.6 22.4 820
    7×2×1.0 0.6 1.1 1.6 22.4 845
    8×2×1.0 0.6 1.1 1.6 24.1 905
    9×2×1.0 0.6 1.1 1.7 25.7 995
    10×2×1.0 0.6 1.1 1.7 26.8 1035
    12×2×1.0 0.6 1.1 1.7 27.4 1095
    14×2×1.0 0.6 1.1 1.8 28.9 1195
    15×2×1.0 0.6 1.1 1.9 30.9 1305
    16×2×1.0 0.6 1.1 1.9 31.4 1355
    18×2×1.0 0.6 1.2 2.0 33.4 1500
    19×2×1.0 0.6 1.2 2.0 33.7 1550
    20×2×1.0 0.6 1.2 2.0 35.0 1685
    21×2×1.0 0.6 1.2 2.1 36.5 1850
    23×2×1.0 0.6 1.2 2.1 37.0 1975
    24×2×1.0 0.6 1.2 2.2 38.9 1990
    27×2×1.0 0.6 1.2 2.2 39.6 2135
    30×2×1.0 0.6 1.2 2.2 40.9 2300
    33×2×1.0 0.6 1.2 2.3 42.5 2495
    37×2×1.0 0.6 1.4 2.4 44.3 2735
    1×3×1.0 0.6 1.1 1.2 13.0 280
    2×3×1.0 0.6 1.1 1.4 18.0 550
    3×3×1.0 0.6 1.1 1.4 18.7 600
    4×3×1.0 0.6 1.1 1.5 20.0 690
    5×3×1.0 0.6 1.1 1.6 22.4 880
    6×3×1.0 0.6 1.1 1.6 24.6 1020
    7×3×1.0 0.6 1.1 1.6 24.6 1060
    8×3×1.0 0.6 1.1 1.7 26.4 1150
    9×3×1.0 0.6 1.1 1.8 28.2 1305
    10×3×1.0 0.6 1.1 1.8 30.2 1290
    12×3×1.0 0.6 1.1 1.9 31.3 1435
    14×3×1.0 0.6 1.2 1.9 32.9 1605
    15×3×1.0 0.6 1.2 2.0 34.0 1720
    16×3×1.0 0.6 1.2 2.0 35.0 1765
    18×3×1.0 0.6 1.2 2.1 37.2 2050
    19×3×1.0 0.6 1.2 2.1 37.5 2120
    20×3×1.0 0.6 1.2 2.2 38.7 2300
    21×3×1.0 0.6 1.2 2.2 39.4 2380
    23×3×1.0 0.6 1.2 2.2 40.8 2515
    24×3×1.0 0.6 1.2 2.3 41.7 2575
    27×3×1.0 0.6 1.2 2.3 43.7 2815
    30×3×1.0 0.6 1.4 2.4 46.1 3125
    32×3×1.0 0.6 1.4 2.5 47.5 3310
    1×2×1.5 0.7 1.1 1.3 14.3 335
    2×2×1.5 0.7 1.1 1.5 20.5 740
    3×2×1.5 0.7 1.1 1.5 21.2 805
    4×2×1.5 0.7 1.1 1.6 22.9 945
    5×2×1.5 0.7 1.1 1.6 24.8 1095
    6×2×1.5 0.7 1.1 1.8 27.8 1300
    7×2×1.5 0.7 1.1 1.8 27.8 1355
    8×2×1.5 0.7 1.1 1.8 29.6 1455
    9×2×1.5 0.7 1.1 1.9 31.7 1660
    10×2×1.5 0.7 1.1 2.0 34.4 1680
    12×2×1.5 0.7 1.1 2.0 35.5 1855
    14×2×1.5 0.7 1.2 2.1 37.6 2150
    15×2×1.5 0.7 1.2 2.2 38.9 2300
    16×2×1.5 0.7 1.2 2.2 40.0 2415
    18×2×1.5 0.7 1.2 2.3 42.0 2630
    19×2×1.5 0.7 1.2 2.3 42.4 2725
    20×2×1.5 0.7 1.2 2.3 43.5 2940
    21×2×1.5 0.7 1.2 2.4 44.9 3110
    23×2×1.5 0.7 1.2 2.5 46.7 3400
    24×2×1.5 0.7 1.2 2.5 47.5 3360
    27×2×1.5 0.7 1.4 2.6 50.0 3710
    30×2×1.5 0.7 1.4 2.7 52.3 4060
    32×2×1.5 0.7 1.4 2.7 53.8 4285
    33×2×1.5 0.7 1.4 2.5 48.5 3245
    37×2×1.5 0.7 1.4 2.6 50.2 3515
    1×3×1.5 0.7 1.1 1.3 14.3 335
    2×3×1.5 0.7 1.1 1.5 20.5 740
    3×3×1.5 0.7 1.1 1.5 21.2 805
    4×3×1.5 0.7 1.1 1.6 22.9 945
    5×3×1.5 0.7 1.1 1.6 24.8 1095
    6×3×1.5 0.7 1.1 1.8 27.8 1300
    7×3×1.5 0.7 1.1 1.8 27.8 1355
    8×3×1.5 0.7 1.1 1.8 29.6 1455
    9×3×1.5 0.7 1.1 1.9 31.7 1660
    10×3×1.5 0.7 1.2 2.0 34.4 1680
    12×3×1.5 0.7 1.2 2.0 35.5 1855
    14×3×1.5 0.7 1.2 2.1 37.6 2150
    15×3×1.5 0.7 1.2 2.2 38.9 2300
    16×3×1.5 0.7 1.2 2.2 40.0 2405
    18×3×1.5 0.7 1.2 2.3 42.0 2630
    19×3×1.5 0.7 1.2 2.3 42.4 2710
    20×3×1.5 0.7 1.2 2.3 43.5 2940
    21×3×1.5 0.7 1.4 2.4 44.9 3110
    23×3×1.5 0.7 1.4 2.5 46.7 3400
    24×3×1.5 0.7 1.4 2.5 47.5 3430
    27×3×1.5 0.7 1.4 2.6 50.0 3710
    30×3×1.5 0.7 1.4 2.7 52.3 4060
    32×3×1.5 0.7 1.4 2.7 53.8 4285
    1×2×2.5 0.7 1.1 1.3 14.5 335
    2×2×2.5 0.7 1.1 1.5 20.4 740
    3×2×2.5 0.7 1.1 1.5 21.3 800
    4×2×2.5 0.7 1.1 1.6 22.8 930
    5×2×2.5 0.7 1.1 1.6 24.7 1075
    6×2×2.5 0.7 1.1 1.7 26.9 1245
    7×2×2.5 0.7 1.1 1.7 26.9 1290
    8×2×2.5 0.7 1.1 1.8 29.3 1405
    9×2×2.5 0.7 1.1 1.9 31.3 1585
    10×2×2.5 0.7 1.2 2.0 33.2 1605
    12×2×2.5 0.7 1.2 2.0 34.0 1745
    14×2×2.5 0.7 1.2 2.0 35.6 1920
    15×2×2.5 0.7 1.2 2.2 38.8 2205
    16×2×2.5 0.7 1.2 2.2 39.4 2230
    18×2×2.5 0.7 1.2 2.3 41.5 2500
    19×2×2.5 0.7 1.2 2.3 41.9 2590
    20×2×2.5 0.7 1.2 2.3 43.5 2815
    21×2×2.5 0.7 1.4 2.4 45.2 2990
    23×2×2.5 0.7 1.4 2.4 45.8 3215
    24×2×2.5 0.7 1.4 2.5 48.2 3270
    27×2×2.5 0.7 1.4 2.6 49.4 3515
    30×2×2.5 0.7 1.4 2.6 51.0 3810
    33×2×2.5 0.7 1.4 2.7 53.1 4145
    37×2×2.5 0.7 1.4 2.8 54.9 4500
    1×3×2.5 0.7 1.1 1.3 15.1 385
    2×3×2.5 0.7 1.1 1.5 22.0 880
    3×3×2.5 0.7 1.1 1.6 23.0 990
    4×3×2.5 0.7 1.1 1.6 24.6 1150
    5×3×2.5 0.7 1.1 1.7 26.9 1350
    6×3×2.5 0.7 1.1 1.8 30.0 1595
    7×3×2.5 0.7 1.1 1.8 30.0 1670
    8×3×2.5 0.7 1.1 1.9 32.2 1820
    9×3×2.5 0.7 1.2 2.0 34.8 2105
    10×3×2.5 0.7 1.2 2.1 37.9 2190
    12×3×2.5 0.7 1.2 2.2 39.2 2455
    14×3×2.5 0.7 1.2 2.2 40.9 2715
    15×3×2.5 0.7 1.2 2.3 42.3 2905
    16×3×2.5 0.7 1.2 2.3 43.5 3060
    18×3×2.5 0.7 1.4 2.4 46.1 3380
    19×3×2.5 0.7 1.4 2.5 46.7 3530
    20×3×2.5 0.7 1.4 2.5 47.9 3800
    21×3×2.5 0.7 1.4 2.5 48.9 3950
    23×3×2.5 0.7 1.4 2.6 50.9 4290
    24×3×2.5 0.7 1.4 2.6 51.8 4325
    27×3×2.5 0.7 1.4 2.7 54.5 4745
    30×3×2.5 0.7 1.6 2.9 57.7 5300
    32×3×2.5 0.7 1.6 2.9 59.3 5595
