    S102 (Formerly S2 or S2/S6) RFOU(c) 250V

    Applications

    These cables are flame retardant, low smoke, halogen free and mud resistant, used for instrumentation, communication, control and alarm systems.

    Standards

    IEC 60092-376

    IEC 60092-360

    IEC 60332-1

    IEC 60332-3-22

    IEC 60754-1,2

    IEC 61034-1,2

    NEK 606:2016

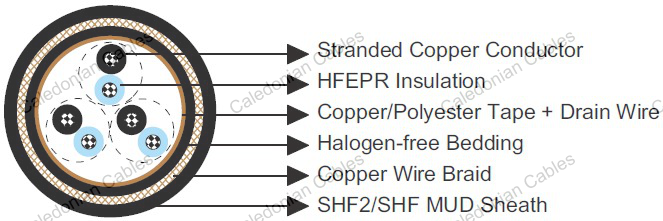

    Construction

    Conductors : Circular tinned annealed stranded copper wire to IEC 60228 class 2 or class 5.

    Insulation : Halogen free EPR compound or XLPE.

    Twinning : Colour coded cores twisted together.

    Collective Shielding : Pairs/triples are layed up and collectively screened by copper backed polyester tape in contact with a stranded tinned copper drain wire. Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors.

    Bedding : Halogen free compound.

    Armour : Tinned copper wire braid.

    Outer Sheath: Halogen free thermosetting compound, SHF2 (formerly TYPE S2). Halogen free MUD resistant thermosetting compound, SHF MUD (formerly TYPE S2/S6), coloured grey (blue for intrinsically safe).

    Electrical Characteristics

    Nominal Cross Section Area mm² 0.75 1.0 1.5 2.5
    Nominal Conductor Diameter mm 1.1 1.3 1.6 2.0
    Maximum Resistant@20℃ Ω/km 26.3 19.3 12.9 8.02
    Mutual Capacitance nF/km 80 90 100 110
    Nominal Inductance@1KHz MH/km 0.682 0.645 0.632 0.593
    Maximum L/R@1KHz μH/Ω 20 25 35 50
    Operating Voltage V 250 250 250 250

    Mechanical and Thermal Properties

    Bending Radius : 8×OD (during installation); 6×OD (fixed installed)

    Temperature Range : -20℃ ~ +90℃

    Dimensions and Weight

    Construction No. of elements × No. of cores in element × Cross section Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
    Inner Outer
    mm² mm mm mm mm kg/km
    1×2×0.75 0.6 1.1 1.1 11.1 200
    2×2×0.75 0.6 1.1 1.3 15.0 295
    3×2×0.75 0.6 1.1 1.3 15.6 355
    4×2×0.75 0.6 1.1 1.3 16.4 390
    5×2×0.75 0.6 1.1 1.4 17.8 540
    6×2×0.75 0.6 1.1 1.4 19.1 610
    7×2×0.75 0.6 1.1 1.4 19.1 625
    8×2×0.75 0.6 1.1 1.5 20.7 680
    9×2×0.75 0.6 1.1 1.5 21.8 745
    10×2×0.75 0.6 1.1 1.6 22.9 760
    12×2×0.75 0.6 1.1 1.6 23.4 810
    14×2×0.75 0.6 1.1 1.6 24.5 875
    15×2×0.75 0.6 1.1 1.7 26.1 960
    16×2×0.75 0.6 1.1 1.7 26.5 1010
    18×2×0.75 0.6 1.1 1.8 27.9 1080
    19×2×0.75 0.6 1.1 1.8 28.2 1115
    20×2×0.75 0.6 1.1 1.8 29.2 1210
    21×2×0.75 0.6 1.1 1.8 30.0 1255
    23×2×0.75 0.6 1.1 1.9 30.6 1355
    24×2×0.75 0.6 1.1 1.9 31.9 1370
    27×2×0.75 0.6 1.2 1.9 32.9 1480
    30×2×0.75 0.6 1.2 2.0 34.1 1605
    33×2×0.75 0.6 1.2 2.0 35.3 1725
    37×2×0.75 0.6 1.2 2.1 36.9 1950
    1×3×0.75 0.6 1.1 1.2 11.7 230
    2×3×0.75 0.6 1.1 1.3 14.5 360
    3×3×0.75 0.6 1.1 1.3 16.2 415
    4×3×0.75 0.6 1.1 1.4 17.6 540
    5×3×0.75 0.6 1.1 1.4 19.1 645
    6×3×0.75 0.6 1.1 1.5 21.1 755
    7×3×0.75 0.6 1.1 1.5 21.1 780
    8×3×0.75 0.6 1.1 1.6 22.6 845
    9×3×0.75 0.6 1.1 1.6 23.9 945
    10×3×0.75 0.6 1.1 1.7 25.7 960
    12×3×0.75 0.6 1.1 1.7 26.4 1080
    14×3×0.75 0.6 1.1 1.7 27.5 1150
    15×3×0.75 0.6 1.1 1.8 28.5 1230
    16×3×0.75 0.6 1.1 1.8 29.2 1310
    18×3×0.75 0.6 1.1 1.9 30.7 1405
    19×3×0.75 0.6 1.1 1.9 31.0 1475
    20×3×0.75 0.6 1.1 1.9 31.8 1560
    21×3×0.75 0.6 1.2 1.9 32.7 1640
    23×3×0.75 0.6 1.2 2.0 34.1 1795
    24×3×0.75 0.6 1.2 2.0 34.6 1830
    27×3×0.75 0.6 1.2 2.1 36.8 2040
    30×3×0.75 0.6 1.2 2.1 38.3. 2210
    32×3×0.75 0.6 1.2 2.2 39.5 2345
    1×2×1.0 0.6 1.1 1.2 11.7 225
    2×2×1.0 0.6 1.1 1.3 13.4 335
    3×2×1.0 0.6 1.1 1.3 16.3 470
    4×2×1.0 0.6 1.1 1.4 17.4 535
    5×2×1.0 0.6 1.1 1.4 18.7 610
    6×2×1.0 0.6 1.1 1.5 20.2 700
    7×2×1.0 0.6 1.1 1.5 20.2 720
    8×2×1.0 0.6 1.1 1.5 21.8 775
    9×2×1.0 0.6 1.1 1.6 23.2 850
    10×2×1.0 0.6 1.1 1.6 24.1 880
    12×2×1.0 0.6 1.1 1.6 24.7 980
    14×2×1.0 0.6 1.1 1.7 26.0 1030
    15×2×1.0 0.6 1.1 1.8 27.8 1125
    16×2×1.0 0.6 1.1 1.8 28.2 1175
    18×2×1.0 0.6 1.1 1.8 29.5 1255
    19×2×1.0 0.6 1.1 1.8 29.8 1295
    20×2×1.0 0.6 1.1 1.9 31.1 1420
    21×2×1.0 0.6 1.1 1.9 31.9 1475
    23×2×1.0 0.6 1.2 1.9 32.7 1610
    24×2×1.0 0.6 1.2 2.0 34.3 1620
    27×2×1.0 0.6 1.2 2.0 35.0 1745
    30×2×1.0 0.6 1.2 2.1 36.7 1980
    33×2×1.0 0.6 1.2 2.1 38.0 2130
    37×2×1.0 0.6 1.2 2.2 39.3 2305
    1×3×1.0 0.6 1.1 1.2 12.0 250
    2×3×1.0 0.6 1.1 1.4 17.0 520
    3×3×1.0 0.6 1.1 1.4 17.4 540
    4×3×1.0 0.6 1.1 1.4 18.7 625
    5×3×1.0 0.6 1.1 1.5 20.2 745
    6×3×1.0 0.6 1.1 1.6 22.4 875
    7×3×1.0 0.6 1.1 1.6 22.4 905
    8×3×1.0 0.6 1.1 1.6 23.8 980
    9×3×1.0 0.6 1.1 1.7 25.4 1080
    10×3×1.0 0.6 1.1 1.7 27.1 1150
    12×3×1.0 0.6 1.1 1.8 28.1 1265
    14×3×1.0 0.6 1.1 1.8 29.2 1355
    15×3×1.0 0.6 1.1 1.8 30.1 1440
    16×3×1.0 0.6 1.1 1.9 31.1 1570
    18×3×1.0 0.6 1.2 1.9 32.8 1675
    19×3×1.0 0.6 1.2 2.0 33.3 1750
    20×3×1.0 0.6 1.2 2.0 34.1 1880
    21×3×1.0 0.6 1.2 2.0 34.8 1950
    23×3×1.0 0.6 1.2 2.1 36.6 2215
    24×3×1.0 0.6 1.2 2.1 37.3 2200
    27×3×1.0 0.6 1.2 2.2 39.2 2425
    30×3×1.0 0.6 1.2 2.2 40.8 2630
    32×3×1.0 0.6 1.2 2.3 42.1 2790
    1×2×1.5 0.7 1.1 1.2 12.7 260
    2×2×1.5 0.7 1.1 1.4 15.4 420
    3×2×1.5 0.7 1.1 1.4 17.6 585
    4×2×1.5 0.7 1.1 1.4 18.8 635
    5×2×1.5 0.7 1.1 1.5 21.1 770
    6×2×1.5 0.7 1.1 1.6 22.8 890
    7×2×1.5 0.7 1.1 1.6 22.8 925
    8×2×1.5 0.7 1.1 1.6 23.7 975
    9×2×1.5 0.7 1.1 1.7 26.3 1060
    10×2×1.5 0.7 1.1 1.7 27.4 1130
    12×2×1.5 0.7 1.1 1.8 28.3 1270
    14×2×1.5 0.7 1.1 1.8 29.5 1325
    15×2×1.5 0.7 1.1 1.9 31.6 1445
    16×2×1.5 0.7 1.1 1.9 32.1 1575
    18×2×1.5 0.7 1.2 2.0 34.2 1670
    19×2×1.5 0.7 1.2 2.0 34.5 1765
    20×2×1.5 0.7 1.2 2.1 36.0 1895
    21×2×1.5 0.7 1.2 2.1 37.3 2050
    23×2×1.5 0.7 1.2 2.1 37.9 2185
    24×2×1.5 0.7 1.2 2.2 39.8 2200
    27×2×1.5 0.7 1.2 2.2 40.6 2390
    30×2×1.5 0.7 1.2 2.3 42.1 2600
    33×2×1.5 0.7 1.2 2.3 43.6 2805
    37×2×1.5 0.7 1.4 2.4 45.4 3080
    1×3×1.5 0.7 1.1 1.2 13.2 295
    2×3×1.5 0.7 1.1 1.4 17.0 490
    3×3×1.5 0.7 1.1 1.5 19.5 685
    4×3×1.5 0.7 1.1 1.5 20.9 785
    5×3×1.5 0.7 1.1 1.6 21.0 820
    6×3×1.5 0.7 1.1 1.7 22.8 960
    7×3×1.5 0.7 1.1 1.7 25.1 1135
    8×3×1.5 0.7 1.1 1.7 27.0 1270
    9×3×1.5 0.7 1.1 1.8 28.9 1445
    10×3×1.5 0.7 1.1 1.9 31.1 1450
    12×3×1.5 0.7 1.1 1.9 31.5 1710
    14×3×1.5 0.7 1.2 2.0 33.8 1815
    15×3×1.5 0.7 1.2 2.0 34.8 1930
    16×3×1.5 0.7 1.2 2.1 36.0 2110
    18×3×1.5 0.7 1.2 2.1 38.1 2305
    19×3×1.5 0.7 1.2 2.2 38.6 2375
    20×3×1.5 0.7 1.2 2.2 39.6 2580
    21×3×1.5 0.7 1.2 2.2 40.4 2680
    23×3×1.5 0.7 1.2 2.3 42.0 2925
    24×3×1.5 0.7 1.2 2.3 42.7 3140
    27×3×1.5 0.7 1.4 2.4 45.3 3250
    30×3×1.5 0.7 1.4 2.5 47.4 3555
    32×3×1.5 0.7 1.4 2.5 48.6 3745
    1×2×2.5 0.7 1.1 1.2 13.5 300
    2×2×2.5 0.7 1.1 1.4 18.9 650
    3×2×2.5 0.7 1.1 1.5 19.9 720
    4×2×2.5 0.7 1.1 1.5 21.1 820
    5×2×2.5 0.7 1.1 1.6 23.0 965
    6×2×2.5 0.7 1.1 1.6 24.8 1105
    7×2×2.5 0.7 1.1 1.6 24.8 1150
    8×2×2.5 0.7 1.1 1.7 27.0 1255
    9×2×2.5 0.7 1.1 1.8 28.8 1385
    10×2×2.5 0.7 1.1 1.8 30.0 1430
    12×2×2.5 0.7 1.3 1.9 31.0 1545
    14×2×2.5 0.7 1.2 1.9 32.7 1730
    15×2×2.5 0.7 1.2 2.0 35.0 1885
    16×2×2.5 0.7 1.2 2.0 35.6 1970
    18×2×2.5 0.7 1.2 2.1 37.9 2235
    19×2×2.5 0.7 1.2 2.1 38.3 2315
    20×2×2.5 0.7 1.2 2.2 39.9 2530
    21×2×2.5 0.7 1.2 2.2 41.0 2630
    23×2×2.5 0.7 1.2 2.3 41.8 2750
    24×2×2.5 0.7 1.2 2.3 43.7 2850
    27×2×2.5 0.7 1.4 2.4 45.1 3150
    30×2×2.5 0.7 1.4 2.5 46.8 3435
    33×2×2.5 0.7 1.4 2.5 48.5 3715
    37×2×2.5 0.7 1.4 2.6 50.2 4040
    1×3×2.5 0.7 1.1 1.3 14.3 360
    2×3×2.5 0.7 1.1 1.5 20.5 785
    3×3×2.5 0.7 1.1 1.5 21.2 875
    4×3×2.5 0.7 1.1 1.6 22.9 1035
    5×3×2.5 0.7 1.1 1.6 24.8 1205
    6×3×2.5 0.7 1.1 1.8 27.8 1430
    7×3×2.5 0.7 1.1 1.8 27.8 1505
    8×3×2.5 0.7 1.1 1.8 29.6 1625
    9×3×2.5 0.7 1.1 1.9 31.7 1855
    10×3×2.5 0.7 1.2 2.0 34.4 1890
    12×3×2.5 0.7 1.2 2.0 35.5 2110
    14×3×2.5 0.7 1.2 2.1 37.6 2445
    15×3×2.5 0.7 1.2 2.2 38.9 2620
    16×3×2.5 0.7 1.2 2.2 40.0 2755
    18×3×2.5 0.7 1.2 2.3 42.0 3010
    19×3×2.5 0.7 1.2 2.3 42.4 3125
    20×3×2.5 0.7 1.2 2.3 43.5 3360
    21×3×2.5 0.7 1.4 2.4 44.9 3555
    23×3×2.5 0.7 1.4 2.5 46.7 3885
    24×3×2.5 0.7 1.4 2.5 47.5 3870
    27×3×2.5 0.7 1.4 2.6 50.0 4280
    30×3×2.5 0.7 1.4 2.7 52.3 4695
    32×3×2.5 0.7 1.4 2.7 53.8 4960
