    RG213 Armoured Coaxial Cable

    Applications

    These 50Ω coaxial cables are suitable for installation on board of ships and other indoor marine environments.

    Standards

    IEC 60092-350

    IEC 60332-3-22

    IEC 60754-1,2

    IEC 61034-1,2

    NEK 606:2016

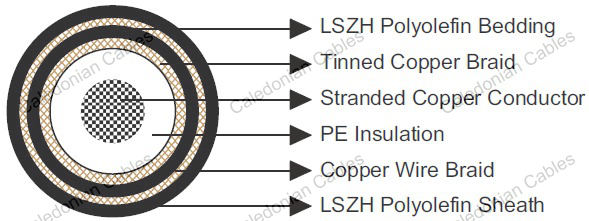

    Construction

    Conductors : 13AWG bare copper.

    Insulation : PE.

    Shielding : Copper braid.

    Bedding : Low smoke and halogen-free polyolefin, coloured black.

    Armour : Tinned copper wire braid.

    Outer Sheath : Low smoke and halogen-free polyolefin.

    Electrical Characteristics

    AWG

    13

    Conductor Construction No./Diameter of Wires -/mm 7/0.75
    Nominal Conductor Diameter mm 2.24
    Impedance Ω 50+/-3
    Nominal Attenuation@100MHz dB/100m 7.5
    Nominal Attenuation@200MHz dB/100m 10.5
    Nominal Attenuation@400MHz dB/100m 15.1
    Nominal Attenuation@1000MHz dB/100m 29.5
    Capacitance pF/m 101
    Velocity of Propagation % 66
    Conductor DCR Ω/km 5.7
    Shield DCR Ω/km 3.9
    Inductance μH/m 0.246
    Time Delay ns/m 5.0

    Mechanical and Thermal Properties

    Bending Radius : 15×OD

    Temperature Range : -30℃ ~ +75℃

    Dimensions and Weight

    Nominal Inner Conductor Diameter Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
    mm mm mm mm kg/km
    2.24 2.2 1.14 13.9 379
