    P119 RX/TX 0.6/1 kV

    Applications

    These cables are flame retardant, low smoke and halogen free, used for earthing and bonding services.

    Standards

    IEC 60092-354

    IEC 60092-360

    IEC 60331-21

    IEC 60332-1

    IEC 60332-3-22

    IEC 60754-1,2

    IEC 61034-1,2

    NEK 606:2016

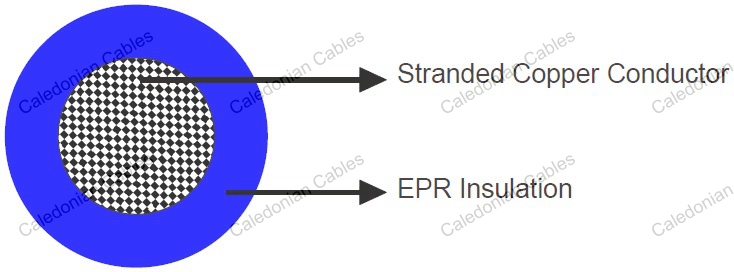

    Construction

    Conductors : Circular tinned annealed stranded copper to IEC 60228 class 2 or class 5.

    Insulation : Halogen-free EPR or XLPE. Blue,brown, black or grey. Blue, brown, black or grey.

    Electrical Characteristics

    Nominal Cross Section Area mm² 10 16 25 35 50 70 95 120 150 185 240 300
    Nominal Conductor Diameter mm 4.0 5.1 6.5 7.4 8.7 10.3 12.2 13.8 15.1 17.0 19.6 21.9
    Maximum DC Resistant@20℃ Ω/km 1.84 1.16 0.734 0.529 0.391 0.27 0.195 0.154 0.126 0.1 0.0762 0.0607
    Continuous Current Rating@45℃ 1 Core A 72 96 127 157 196 242 293 339 389 444 522 601
    Short Circuit Current 1s A 1430 2290 3580 5010 7150 10020 13590 17170 21460 26470 34340 42930
    Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1

    Mechanical and Thermal Properties

    Bending Radius : 8×OD (during installation); 6×OD (fixed installed)

    Temperature Range : -20℃ ~ +90℃

    Dimensions and Weight

    Construction No. of cores × Cross section Nominal Insulation Thickness Nominal Overall Diameter Nominal Weight
    mm² mm mm kg/km
    1×1.5 1.0 3.6 267
    1×2.5 1.0 4.1 317
    1×4 1.0 4.6 385
    1×6 1.0 5.2 460
    1×10 1.0 6.0 591
    1×16 1.0 7.1 752
    1×25 1.2 8.9 1140
    1×35 1.2 9.8 1371
    1×50 1.4 11.5 1874
    1×70 1.4 13.1 2330
    1×95 1.6 15.8 3156
    1×120 1.6 17.4 3656
    1×150 1.8 19.4 4541
    1×185 2.0 21.6 5663
    1×240 2.2 24.7 7226
    1×300 2.4 27.5 8892
