    Mud Resistant Composite Cable

    Applications

    These composite cables consist of cat6 data cable & coaxial cable & power cable, with copper wire braid armoured & flame retardant oil&mud resistant outer sheath.

    Standards

    IEC 60092-360

    IEC 60332-3-22

    IEC 60754-1,2

    IEC 61034-1,2

    NEK 606:2016

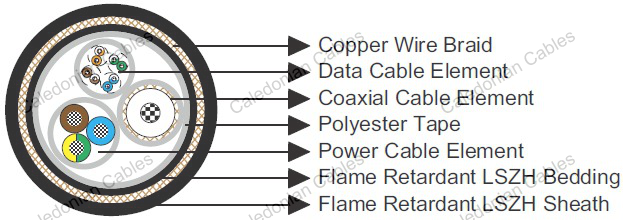

    Construction

    1) 4×2×0.57mm U/UTP Cat6 Data Cable

    Conductors : Solid bare copper wire.

    Insulation : PE.

    Twinning : Two coloured insulated wire twisted to form a pair.

    Sheath : Flame retardant LSZH, coloured grey.

    2) RG59 Coaxial Cable

    Conductors : 0.58mm solid bare copper wire.

    Insulation : PE.

    Shielding : Bare copper wire braid.

    Sheath : Flame retardant LSZH, coloured grey.

    3) 3×1.0mm² Power Cable

    Conductors : 7/0.44mm stranded bare copper wire.

    Insulation : XLPE. Coloured Blue, Brown, Green/Yellow.

    Sheath : Flame retardant LSZH, coloured grey

    4) Element Assembly

    Filler : PP, PVC, PE or LSZH Material.

    Wrapping : Polyester Tape.

    Bedding : Flame retardant LSZH.

    Armour : Tinned copper wire braid.

    Outer Sheath : Oil & mud resistant, flame retardant LSZH, coloured grey.

    Dimensions

    Cable Construction Nominal Data Cable Diameter Nominal Coaxial Cable Diameter Nominal Power Cable Diameter Nominal Overall Diameter
      mm mm mm mm
    4×2×0.57mm + RG59 + 3×1.0mm² 6.0 6.2 6.8 21.0

    Note: Other construction can be offered opon request.
