    TOI/TOU (MTX300) 0.6/1 kV XLPE Insulated, LSOH (SHF1) Sheathed, Armoured Flame Retardant Power & Control Cables (Single Core)

    Application

    These armoured cables are used on board of ships in all locations for fixed installations where cable protection is required. These cables are flame retardant, low smoke & halogen free.

    Standards

    IEC 60092-350/353/360

    IEC 60332-1

    IEC 60332-3-22

    IEC 60754-1/2

    IEC 61034

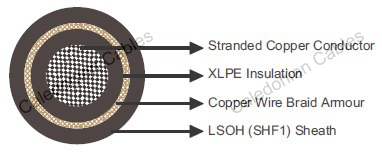

    Construction

    Conductors : Class 2 stranded copper conductor, round or sector shaped. Class 5 stranded conductors can be offered upon request.

    Insulation : XLPE.

    Armour : Copper wire braid.

    Outer Sheath : LSOH (SHF1). SHF2 can be offered upon request.

    Core Identification

    Single core : Black.

    Mechanical and Thermal Properties

    Bending Radius for Fixed Installations : 6×OD

    Temperature Range : -30℃ ~ +80℃

    Dimensions and Weight

    MTX300 1RMZ1-R Single Core Armoured 0.6/1kV (-R stands for class 2 conductor. For class 5 conductor, please change –R to –F)

    Part No. Construction No. of cores × Cross section Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
      mm² mm mm mm kg/km
    MTX300-1RMZ1-R-1C1.5 1×1.5 0.7 1.1 6.3 70
    MTX300-1RMZ1-R-1C2.5 1×2.5 0.7 1.1 6.7 80
    MTX300-1RMZ1-R-1C4 1×4 0.7 1.1 7.0 100
    MTX300-1RMZ1-R-1C6 1×6 0.7 1.1 7.6 120
    MTX300-1RMZ1-R-1C10 1×10 0.7 1.1 8.4 180
    MTX300-1RMZ1-R-1C16 1×16 0.7 1.1 9.8 245
    MTX300-1RMZ1-R-1C25 1×25 0.9 1.2 11.7 355
    MTX300-1RMZ1-R-1C35 1×35 0.9 1.2 13.0 455
    MTX300-1RMZ1-R-1C50 1×50 1.0 1.3 15.0 620
    MTX300-1RMZ1-R-1C70 1×70 1.1 1.4 17.2 850
    MTX300-1RMZ1-R-1C95 1×95 1.1 1.4 19.1 1115
    MTX300-1RMZ1-R-1C120 1×120 1.2 1.5 21.1 1385
    MTX300-1RMZ1-R-1C150 1×150 1.4 1.6 23.2 1690
    MTX300-1RMZ1-R-1C185 1×185 1.6 1.6 25.5 2065
    MTX300-1RMZ1-R-1C240 1×240 1.7 1.7 28.4 2640
    MTX300-1RMZ1-R-1C300 1×300 1.8 1.8 31.3 3260
