    BFOI(c)/BFOU(c) (MRE-M2X(St)CH) 150/250V Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed, Overall Screened & Armoured Fire Resistant Instrumentation & Control Cables (Multipair/Multitriple)

    i

    Application

    These cables are used on board of ships in all locations for fixed installations complying with IEC standards 60092-352 in safety circuit, where fire resistance is required. These cables are fire resistant, flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.

    Standards

    IEC 60092-350/360/376

    IEC 60331-21

    IEC 60332-1

    IEC 60332-3-22

    IEC 60754-1/2

    IEC 61034

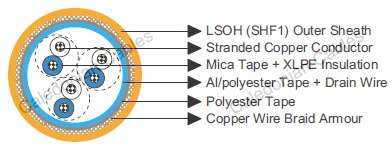

    Construction

    Conductors : Class 2 stranded copper conductor.

    Insulation : Mica tape + XLPE insulation.

    Cabling Element : Pair/Triple.

    Overall Screen : Al/polyester tape.

    Drain Wire : Tinned copper wire.

    Inner Covering : Lapped polyester tape.

    Armour : Copper wire braid.

    Outer Sheath : LSOH (SHF1). SHF2 can be offered upon request.

    Core Identification

    Pair : White/blue with printed pair number and core number.

    Triple : White/blue/red with printed triple number.

    Mechanical and Thermal Properties

    Bending Radius for Fixed Installations : 6×OD

    Temperature Range : -30℃ ~ +80℃

    Dimensions and Weight

    Part No. Construction No. of cores × Cross section Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
      mm² mm mm mm kg/km
    MRE-M2X(St)CH-1P0.75 1×2×0.75 0.5 1.1 9.3 120
    MRE-M2X(St)CH-2P0.75 2×2×0.75* 0.5 1.1 10.5 160
    MRE-M2X(St)CH-3P0.75 3×2×0.75 0.5 1.3 14.8 260
    MRE-M2X(St)CH-4P0.75 4×2×0.75 0.5 1.3 15.6 300
    MRE-M2X(St)CH-7P0.75 7×2×0.75 0.5 1.4 18.6 430
    MRE-M2X(St)CH-8P0.75 8×2×0.75 0.5 1.5 19.9 480
    MRE-M2X(St)CH-10P0.75 10×2×0.75 0.5 1.6 22.4 580
    MRE-M2X(St)CH-12P07.5 12×2×0.75 0.5 1.6 23.2 640
    MRE-M2X(St)CH-14P0.75 14×2×0.75 0.5 1.6 24.0 710
    MRE-M2X(St)CH-16P0.75 16×2×0.75 0.5 1.7 25.9 800
    MRE-M2X(St)CH-19P0.75 19×2×0.75 0.5 1.7 27.0 890
    MRE-M2X(St)CH-24P0.75 24×2×0.75 0.5 1.9 30.8 1110
    MRE-M2X(St)CH-30P0.75 30×2×0.75 0.5 2.0 34.4 1350
    MRE-M2X(St)CH-32P0.75 32×2×0.75 0.5 2.0 34.9 1410
    MRE-M2X(St)CH-37P0.75 37×2×0.75 0.5 2.1 37.3 1680
    MRE-M2X(St)CH-1P1.0 1×2×1.0 0.5 1.1 9.7 130
    MRE-M2X(St)CH-2P1.0 2×2×1.0* 0.5 1.1 10.9 170
    MRE-M2X(St)CH-3P1.0 3×2×1.0 0.5 1.3 15.5 300
    MRE-M2X(St)CH-4P1.0 4×2×1.0 0.5 1.3 16.4 340
    MRE-M2X(St)CH-7P1.0 7×2×1.0 0.5 1.5 19.8 500
    MRE-M2X(St)CH-8P1.0 8×2×1.0 0.5 1.5 21.0 560
    MRE-M2X(St)CH-10P1.0 10×2×1.0 0.5 1.6 23.6 660
    MRE-M2X(St)CH-12P1.0 12×2×1.0 0.5 1.6 24.5 740
    MRE-M2X(St)CH-14P1.0 14×2×1.0 0.5 1.7 25.6 830
    MRE-M2X(St)CH-16P1.0 16×2×1.0 0.5 1.8 27.6 940
    MRE-M2X(St)CH-19P1.0 19×2×1.0 0.5 1.8 28.8 1060
    MRE-M2X(St)CH-24P1.0 24×2×1.0 0.5 1.9 32.6 1300
    MRE-M2X(St)CH-30P1.0 30×2×1.0 0.5 2.1 37.1 1690
    MRE-M2X(St)CH-32P1.0 32×2×1.0 0.5 2.1 37.7 1770
    MRE-M2X(St)CH-37P1.0 37×2×1.0 0.5 2.2 39.7 1990
    MRE-M2X(St)CH-1P1.5 1×2×1.5 0.6 1.1 10.5 150
    MRE-M2X(St)CH-2P1.5 2×2×1.5* 0.6 1.2 12.1 220
    MRE-M2X(St)CH-3P1.5 3×2×1.5 0.6 1.4 17.2 360
    MRE-M2X(St)CH-4P1.5 4×2×1.5 0.6 1.4 18.2 420
    MRE-M2X(St)CH-7P1.5 7×2×1.5 0.6 1.5 21.8 620
    MRE-M2X(St)CH-8P1.5 8×2×1.5 0.6 1.6 23.4 700
    MRE-M2X(St)CH-10P1.5 10×2×1.5 0.6 1.7 26.3 840
    MRE-M2X(St)CH-12P1.5 12×2×1.5 0.6 1.7 27.3 940
    MRE-M2X(St)CH-14P1.5 14×2×1.5 0.6 1.8 28.5 1060
    MRE-M2X(St)CH-16P1.5 16×2×1.5 0.6 1.9 30.8 1200
    MRE-M2X(St)CH-19P1.5 19×2×1.5 0.6 1.9 32.1 1350
    MRE-M2X(St)CH-24P1.5 24×2×1.5 0.6 2.1 37.1 1780
    MRE-M2X(St)CH-30P1.5 30×2×1.5 0.6 2.3 41.6 2180
    MRE-M2X(St)CH-32P1.5 32×2×1.5 0.6 2.3 42.3 2280
    MRE-M2X(St)CH-37P1.5 37×2×1.5 0.6 2.4 44.5 2570
    MRE-M2X(St)CH-1T0.75 1×3×0.75 0.5 1.1 9.7 130
    MRE-M2X(St)CH-2T0.75 2×3×0.75 0.5 1.3 15.0 270
    MRE-M2X(St)CH-3T0.75 3×3×0.75 0.5 1.3 15.8 320
    MRE-M2X(St)CH-4T0.75 4×3×0.75 0.5 1.4 17.4 390
    MRE-M2X(St)CH-7T0.75 7×3×0.75 0.5 1.5 21.5 590
    MRE-M2X(St)CH-8T0.75 8×3×0.75 0.5 1.6 23.1 660
    MRE-M2X(St)CH-10T0.75 10×3×0.75 0.5 1.7 26.1 790
    MRE-M2X(St)CH-12T07.5 12×3×0.75 0.5 1.8 27.7 900
    MRE-M2X(St)CH-14T0.75 14×3×0.75 0.5 1.8 28.8 1000
    MRE-M2X(St)CH-16T0.75 16×3×0.75 0.5 1.9 30.7 1130
    MRE-M2X(St)CH-19T0.75 19×3×0.75 0.5 2.0 33.1 1300
    MRE-M2X(St)CH-24T0.75 24×3×0.75 0.5 2.1 37.1 1680
    MRE-M2X(St)CH-30T0.75 30×3×0.75 0.5 2.3 41.1 2040
    MRE-M2X(St)CH-32T0.75 32×3×0.75 0.5 2.3 42.5 2150
    MRE-M2X(St)CH-37T0.75 37×3×0.75 0.5 2.4 44.7 2420
    MRE-M2X(St)CH-1T1.0 1×3×1.0 0.5 1.1 10.2 150
    MRE-M2X(St)CH-2T1.0 2×3×1.0 0.5 1.3 15.9 310
    MRE-M2X(St)CH-3T1.0 3×3×1.0 0.5 1.4 17.0 380
    MRE-M2X(St)CH-4T1.0 4×3×1.0 0.5 1.4 18.5 450
    MRE-M2X(St)CH-7T1.0 7×3×1.0 0.5 1.6 23.1 690
    MRE-M2X(St)CH-8T1.0 8×3×1.0 0.5 1.6 24.6 770
    MRE-M2X(St)CH-10T1.0 10×3×1.0 0.5 1.8 28.0 930
    MRE-M2X(St)CH-12T1.0 12×3×1.0 0.5 1.8 29.5 1050
    MRE-M2X(St)CH-14T1.0 14×3×1.0 0.5 1.9 30.9 1190
    MRE-M2X(St)CH-16T1.0 16×3×1.0 0.5 1.9 32.7 1320
    MRE-M2X(St)CH-19T1.0 19×3×1.0 0.5 2.0 35.4 1530
    MRE-M2X(St)CH-24T1.0 24×3×1.0 0.5 2.2 39.9 1990
    MRE-M2X(St)CH-30T1.0 30×3×1.0 0.5 2.4 44.2 2420
    MRE-M2X(St)CH-32T1.0 32×3×1.0 0.5 2.4 45.7 2560
    MRE-M2X(St)CH-37T1.0 37×3×1.0 0.5 2.5 48.0 2870
    MRE-M2X(St)CH-1T1.5 1×3×1.5 0.6 1.1 11.0 180
    MRE-M2X(St)CH-2T1.5 2×3×1.5 0.6 1.4 17.5 370
    MRE-M2X(St)CH-3T1.5 3×3×1.5 0.6 1.4 18.5 450
    MRE-M2X(St)CH-4T1.5 4×3×1.5 0.6 1.5 20.4 560
    MRE-M2X(St)CH-7T1.5 7×3×1.5 0.6 1.7 25.5 870
    MRE-M2X(St)CH-8T1.5 8×3×1.5 0.6 1.7 27.2 970
    MRE-M2X(St)CH-10T1.5 10×3×1.5 0.6 1.9 31.0 1170
    MRE-M2X(St)CH-12T1.5 12×3×1.5 0.6 1.9 32.7 1340
    MRE-M2X(St)CH-14T1.5 14×3×1.5 0.6 2.0 34.3 1510
    MRE-M2X(St)CH-16T1.5 16×3×1.5 0.6 2.1 37.0 1800
    MRE-M2X(St)CH-19T1.5 19×3×1.5 0.6 2.2 39.9 2080
    MRE-M2X(St)CH-24T1.5 24×3×1.5 0.6 2.4 44.4 2560
    MRE-M2X(St)CH-30T1.5 30×3×1.5 0.6 2.6 49.2 3110
    MRE-M2X(St)CH-32T1.5 32×3×1.5 0.6 2.6 50.9 3300
    MRE-M2X(St)CH-37T1.5 37×3×1.5 0.6 2.7 53.4 3710

    *: 2 pairs are assembled as a quad.
