    BFOI(c)/BFOU(c) (MFX400) 0.6/1 kV Fire Barriers + HEPR Insulated, LSOH (SHF1) Sheathed, Screened Fire Resistant Power & Control Cables (Multicore)

    Application

    These cables are used for fixed installations fixed installations on ships and offshore units in all locations and on open deck in safety circuits, where fire resistance is required. The good screening qualities of the copper braid also reduce radio interference and electrical influences to electronics installations. These cables are fire resistant, flame retardant, low smoke& halogen free.

    Standards

    DIN 89160/98

    IEC 60092-353

    IEC 60331-21

    IEC 60332-1

    IEC 60332-3-22

    IEC 60754-1/2

    IEC 61034

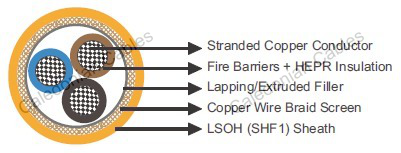

    Construction

    Conductors : Class 2 stranded copper conductor.

    Insulation : Fire barriers + HEPR.

    Inner Covering : Lapping or extruded filler.

    Overall Screen : Copper wire braid.

    Outer Sheath : LSOH (SHF1).

    Core Identification

    Two cores : Black, Blue.

    Three cores : Black, Blue, Brown.

    Four cores : Black, Blue, Brown, Black.

    Five cores : Black, Blue, Brown, Black, Black.

    Multi cores : All cores natural coloured, printed with numbers, starting in center with number 1.

    Cables with 3 cores and more also with green/yellow core (has to be stated in order).

    Mechanical and Thermal Properties

    Bending Radius for Fixed Installations : 6×OD

    Temperature Range : -20℃ ~ +75℃

    Dimensions and Weight

    Part No. Construction No. of cores × Cross section Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
      mm² mm mm mm kg/km
    MFX400-1mG7MZ1-R-2C1.5 2×1.5 0.7 1.2 12.5 210
    MFX400-1mG7MZ1-R-2C2.5 2×2.5 0.7 1.2 13.0 250
    MFX400-1mG7MZ1-R-2C4 2×4 0.7 1.3 14.0 300
    MFX400-1mG7MZ1-R-2C6 2×6 0.7 1.3 16.0 410
    MFX400-1mG7MZ1-R-2C10 2×10 0.7 1.4 18.0 550
    MFX400-1mG7MZ1-R-2C16 2×16 0.7 1.5 20.0 720
    MFX400-1mG7MZ1-R-2C25 2×25 0.9 1.6 23.5 1050
    MFX400-1mG7MZ1-R-3C1.5 3×1.5 0.7 1.2 13.0 230
    MFX400-1mG7MZ1-R-3C2.5 3×2.5 0.7 1.2 14.0 280
    MFX400-1mG7MZ1-R-3C4 3×4 0.7 1.3 15.0 350
    MFX400-1mG7MZ1-R-3C6 3×6 0.7 1.3 16.5 480
    MFX400-1mG7MZ1-R-3C10 3×10 0.7 1.4 19.0 670
    MFX400-1mG7MZ1-R-3C16 3×16 0.7 1.5 21.0 870
    MFX400-1mG7MZ1-R-3C25 3×25 0.9 1.7 24.5 1300
    MFX400-1mG7MZ1-R-3C35 3×35 0.9 1.8 27.0 1680
    MFX400-1mG7MZ1-R-3C50 3×50 1.0 2.1 30.5 2190
    MFX400-1mG7MZ1-R-3C70 3×70 1.1 2.0 35.0 3020
    MFX400-1mG7MZ1-R-3C95 3×95 1.1 2.3 39.5 4050
    MFX400-1mG7MZ1-R-3C120 3×120 1.2 2.5 44.0 5000
    MFX400-1mG7MZ1-R-4C1.5 4×1.5 0.7 1.2 13.5 270
    MFX400-1mG7MZ1-R-4C2.5 4×2.5 0.7 1.3 15.0 330
    MFX400-1mG7MZ1-R-4C4 4×4 0.7 1.3 16.5 460
    MFX400-1mG7MZ1-R-4C6 4×6 0.7 1.4 18.0 560
    MFX400-1mG7MZ1-R-4C10 4×10 0.7 1.5 20.5 790
    MFX400-1mG7MZ1-R-4C16 4×16 0.7 1.6 23.0 1090
    MFX400-1mG7MZ1-R-4C25 4×25 0.9 1.8 27.0 1630
    MFX400-1mG7MZ1-R-5C1.5 5×1.5 0.7 1.3 14.5 320
    MFX400-1mG7MZ1-R-5C2.5 5×2.5 0.7 1.3 16.5 440
    MFX400-1mG7MZ1-R-7C1.5 7×1.5 0.7 1.3 16.5 400
    MFX400-1mG7MZ1-R-10C1.5 10×1.5 0.7 1.3 19.5 450
    MFX400-1mG7MZ1-R-12C1.5 12×1.5 0.7 1.4 20.0 510
    MFX400-1mG7MZ1-R-14C1.5 14×1.5 0.7 1.4 21.0 570
    MFX400-1mG7MZ1-R-16C1.5 16×1.5 0.7 1.4 22.0 640
    MFX400-1mG7MZ1-R-19C1.5 19×1.5 0.7 1.5 23.5 730
    MFX400-1mG7MZ1-R-24C1.5 24×1.5 0.7 1.6 27.0 910
