    UKOOA TYPE JG/TYPE JJ 150/250V Flame retardant Cables

    Application and Description

    These cables are designed for fixed installation for control and lighting in both and safe areas, emergency and critical offshore applications where cable protection is required.



    Standards



    • BS 6883/BS 7917/UKOOA
    • IEC 60332-3-22 CAT. A
    • IEC 60332-1
    • IEC 60754-1 & IEC 60754-2
    • IEC 61034-1 & IEC 61034-2

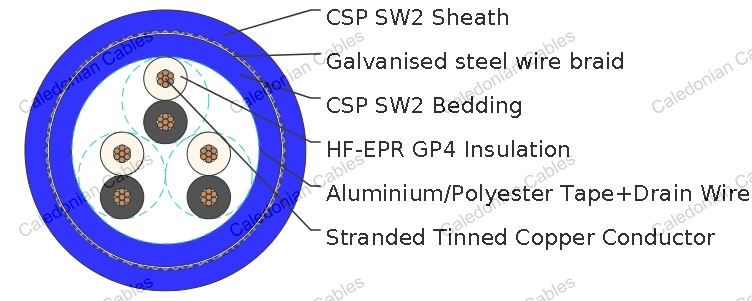

    Construction

    • Conductor: Stranded class 2 or flexible class 5 tinned annealed copper conductors to BS 6360/IEC 60228.
    • Insulation: EPR complying with BS7655 GP4.
    • Drain Wire: Tinned copper drain wire.
    • Collective Screen: Aluminium mylar tape screen.
    • Bedding: CSP – SW2 compound complying with BS 7655.
    • Armour: Galvanised steel wire braid to BS 6883.
    • Outer Sheath: CSP – SW2 compound complying with BS 7655 (TYPE JG: Blue; TYPE JJ: Grey).

    Dimensions and Weight

    Construction No. of cores × Cross section(mm^2) Nominal Insulation Thickness Nominal Thickness of Inner Sheath Nominal Thickness of Outer Sheath Nominal Overall Diameter Approx. Weight
    mm mm mm mm kg/km
    1×2×0.75 0.8 1.2 1.25 12.9 200
    3×2×0.75 0.8 1.2 1.4 17.9 468
    7×2×0.75 0.8 1.4 1.7 22.4 706
    12×2×0.75 0.8 1.6 1.7 28.0 1030
    20×2×0.75 0.8 1.8 2.0 35.2 1662
    1×3×0.75 0.8 1.0 1.25 13.5 285
    3×3×0.75 0.8 1.3 1.2 20.4 680
    7×3×0.75 0.8 1.5 1.4 26.0 1325
    12×3×0.75 0.8 1.7 1.7 34.6 2106
    1×2×1.0 0.8 1.0 1.0 13.4 180
    1×3×1.0 0.8 1.1 1.1 14.0 300
    1×4×1.0 0.8 1.1 1.2 15.0 180
    1×2×1.5 0.8 1.1 1.2 13.5 297
    3×2×1.5 0.8 1.3 1.4 19.8 593
    7×2×1.5 0.8 1.4 1.6 25.0 929
    12×2×1.5 0.8 1.7 1.9 32.6 1510
    20×2×1.5 0.8 1.9 2.1 39.9 2287
    1×3×1.5 0.8 1.1 1.2 14.0 304
    3×3×1.5 0.8 1.3 1.5 23.7 760
    7×3×1.5 0.8 1.5 1.7 30.5 1262
    12×3×1.5 0.8 1.8 2.0 40.7 2148
    1×2×2.5 0.8 1.1 1.2 15.1 320
