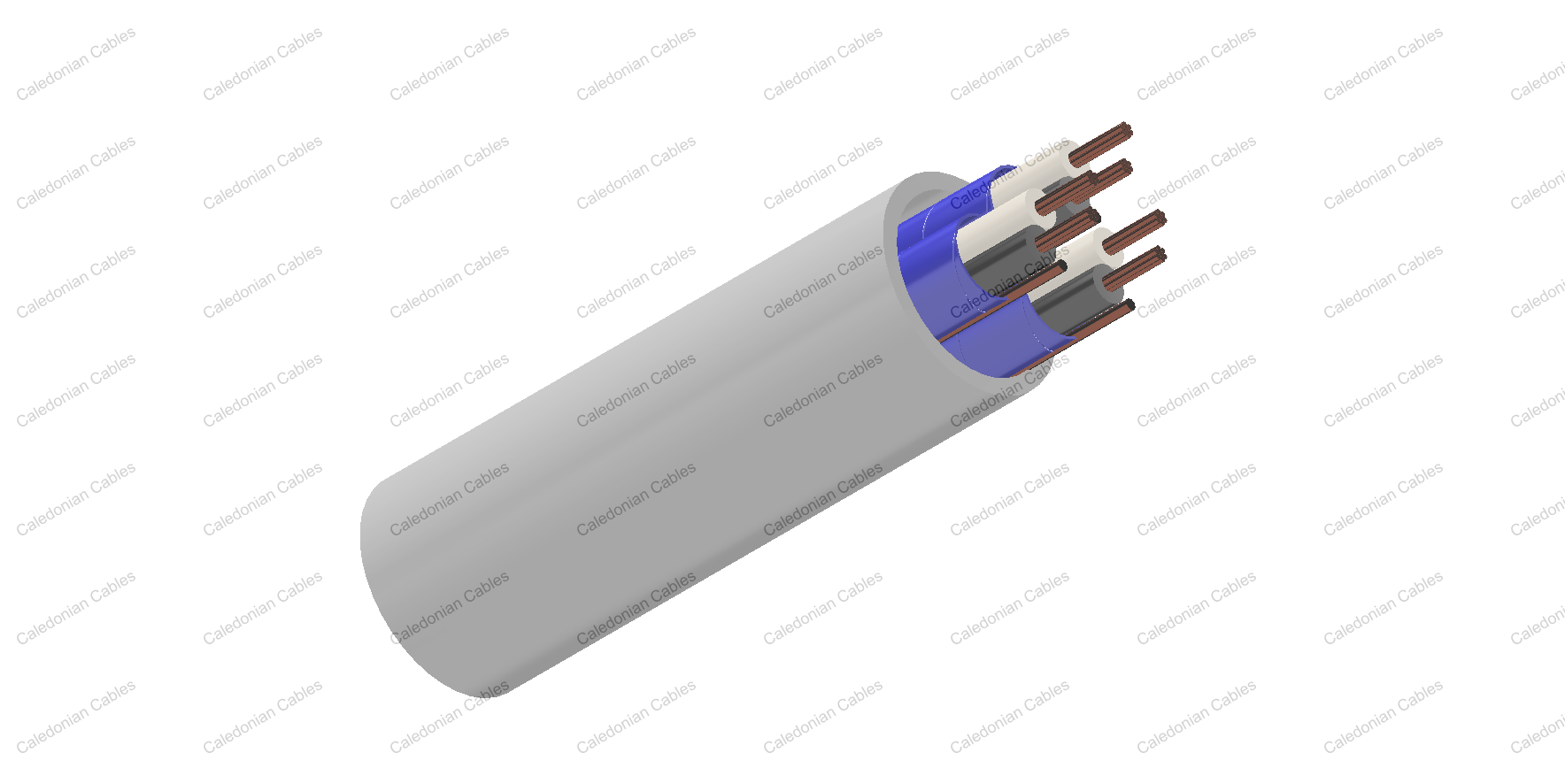

    150/250V HF-EPR Insulated, SW2/SW4 Sheathed, Individually Screened Unarmoured Flame Retardant Instrumentation & Control Cables

    Application and Description

    These elastomeric insulated cables are designed for fixed wiring in ships and on mobile offshore units, suitable for use in instrumentation, lighting and control circuits.

    Standards

    • BS 6883
    • IEC 60332-3A Flame retardant
    • IEC 60754-1; IEC 60754-2 Corrosivity
    • IEC 61034-2 Smoke density
    • Cold bend and impact (-40°C) (on request)
    • CSA C22.2 No. 38-95 (on request)

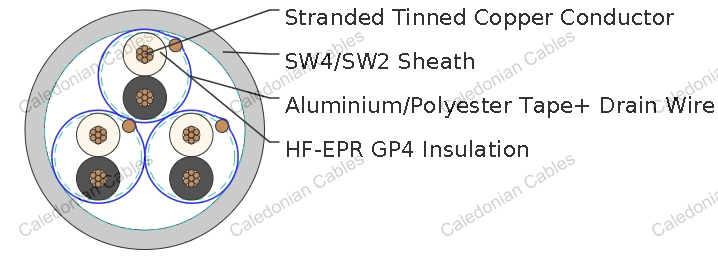

    Construction

    • Conductor: Tinned copper wire stranded circular cl. 2 BS 6360/IEC 60228.
    • Insulation: HF-EPR GP4 according to BS 7655 1.2.
    • Lay-up: Pairs, triples, quads.
    • Individual Screen: Aluminium/polyester tape + drain wire tinned copper.
    • Sheath: Halogen free thermosetting compound SW4 according to BS 7655 2.6 or reduced halogen thermosetting compound SW2 according to BS 7655 2.6.

    Mechanical and Thermal Properties:

    Minimum Internal Bending Radius: 8×OD
    Temperature Range: -40℃ ~ +90℃

    Dimensions and Weight

    Construction No. of cores×Cross section Nominal Insulation Thickness Nominal Sheath Thickness Minimum Overall Diameter Maximum Overall Diameter Approx. Weight
    mm^2 mm mm mm mm kg/km
    Multipair
    1×2×0.75 0.8 1.0 7.3 9.0 90
    3×2×0.75 0.8 1.2 12.6 14.5 200
    7×2×0.75 0.8 1.4 16.9 19.0 390
    12×2×0.75 0.8 1.6 21.2 23.7 630
    20×2×0.75 0.8 1.9 27.0 29.8 1010
    27×2×0.75 0.8 2.0 30.8 33.9 1320
    37×2×0.75 0.8 2.2 35.9 39.3 1560
    1×2×1 0.8 1.0 7.7 9.5 100
    3×2×1 0.8 1.3 13.5 15.5 240
    7×2×1 0.8 1.4 18.0 20.1 470
    12×2×1 0.8 1.7 22.8 25.4 780
    20×2×1 0.8 1.9 28.8 31.6 1230
    27×2×1 0.8 2.1 32.8 36.0 1630
    37×2×1 0.8 2.3 38.5 42.3 2180
    Multitriple
    1×3×0.75 0.8 1.0 7.7 9.4 100
    3×3×0.75 0.8 1.3 14.2 16.2 250
    7×3×0.75 0.8 1.5 19.7 22.1 500
    12×3×0.75 0.8 1.7 24.4 27.1 830
    1×3×1 0.8 1.1 8.4 10.1 120
    3×3×1 0.8 1.3 15.0 17.2 300
    7×3×1 0.8 1.5 21.0 23.5 610
    12×3×1 0.8 1.8 26.2 28.9 1020
    Multiquad
    1×4×0.75 0.8 1.1 8.6 10.4 120
    3×4×0.75 0.8 1.4 16.4 18.5 310
    7×4×0.75 0.8 1.6 22.1 24.7 620
    1×4×1 0.8 1.1 9.1 10.9 140
    3×4×1 0.8 1.4 17.5 19.6 360
    7×4×1 0.8 1.6 23.6 26.2 740
