    150/250V HF-EPR Insulated, SW2/SW4 Sheathed, Collectively Screened Armoured Flame Retardant Instrumentation & Control Cables

    • BS6883 & BS7917 Offshore & Marine Cables

    Application and Description

    These elastomeric insulated cables are designed for fixed wiring in ships and on mobile offshore units, suitable for use in instrumentation, lighting and control circuits.

    Standards

    • BS 6883
    • IEC 60332-3A Flame retardant
    • IEC 60754-1; IEC 60754-2 Corrosivity
    • IEC 61034-2 Smoke density
    • Cold bend and impact (-40°C) (on request)
    • CSA C22.2 No. 38-95 (on request)

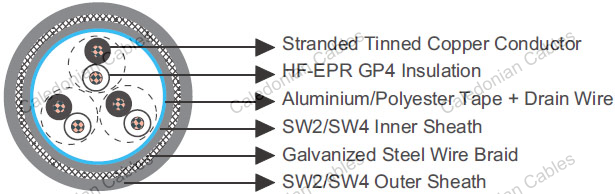

    Construction

    • Conductor: Tinned copper wire stranded circular cl. 2 BS 6360/IEC 60228.
    • Insulation: HF-EPR GP4 according to BS 7655 1.2.
    • Lay-up: Pairs, triples.
    • Collective Screen: Aluminium/polyester tape + drain wire tinned copper.
    • Inner Sheath: Halogen free thermosetting compound SW4 according to BS 7655 2.6 or reduced halogen thermosetting compound SW2 according to BS 7655 2.6.
    • Armour: Galvanized steel wire braid. Tinned bronze wire braid can be offered upon request.
    • Outer Sheath: Halogen free thermosetting compound SW4 according to BS 7655 2.6 or reduced halogen thermosetting compound SW2 according to BS 7655 2.6.

    Mechanical and Thermal Properties:

    Minimum Internal Bending Radius: 8×OD
    Temperature Range: -40℃ ~ +90℃

    Dimensions and Weight

    Construction No. of cores×Cross section Nominal Insulation Thickness Nominal Inner Sheath Thickness Minimum Diameter Over Inner Sheath Maximum Diameter Over Inner Sheath Nominal Armour Wire Diameter Nominal Outer Sheath Thickness Minimum Overall Diameter Maximum Overall Diameter Approx. Weight
    mm^2 mm mm mm mm mm mm mm mm kg/km
    Multipair
    3×2×0.75 0.8 1.2 12.6 14.5 0.3 1.4 16.7 19.0 390
    7×2×0.75 0.8 1.4 16.6 18.7 0.3 1.5 20.9 23.8 620
    12×2×0.75 0.8 1.6 21.7 24.2 0.3 1.7 26.4 29.5 930
    20×2×0.75 0.8 1.8 27.3 30.1 0.45 2.0 33.3 37.1 1460
    27×2×0.75 0.8 1.9 31.1 34.2 0.45 2.2 37.4 41.4 1810
    37×2×0.75 0.8 2.1 34.4 37.7 0.45 2.3 41.0 45.5 2270
    3×2×1 0.8 1.2 13.3 15.3 0.3 1.4 17.4 19.8 410
    7×2×1 0.8 1.4 17.6 19.8 0.3 1.6 22.1 25.1 680
    12×2×1 0.8 1.6 23.1 25.7 0.3 1.8 28.0 31.2 1010
    20×2×1 0.8 1.8 29.0 31.9 0.45 2.1 35.3 39.2 1600
    27×2×1 0.8 2.0 33.3 36.6 0.45 2.2 39.7 44.2 2000
    37×2×1 0.8 2.2 36.9 40.3 0.45 2.4 43.7 48.3 2540
    Multitriple
    3×3×0.75 0.8 1.3 14.2 16.2 0.3 1.4 18.3 20.7 480
    7×3×0.75 0.8 1.4 19.4 21.9 0.3 1.6 24.0 27.0 780
    12×3×0.75 0.8 1.7 24.2 26.8 0.45 1.9 29.3 32.9 1320
    3×3×1 0.8 1.3 15.1 17.1 0.3 1.5 19.4 22.2 530
    7×3×1 0.8 1.5 20.9 23.4 0.3 1.7 25.6 28.7 890
    12×3×1 0.8 1.7 25.8 28.5 0.45 2.0 31.8 35.5 1480
