    Type W Three-Conductor Round Portable Power Cable 2kV

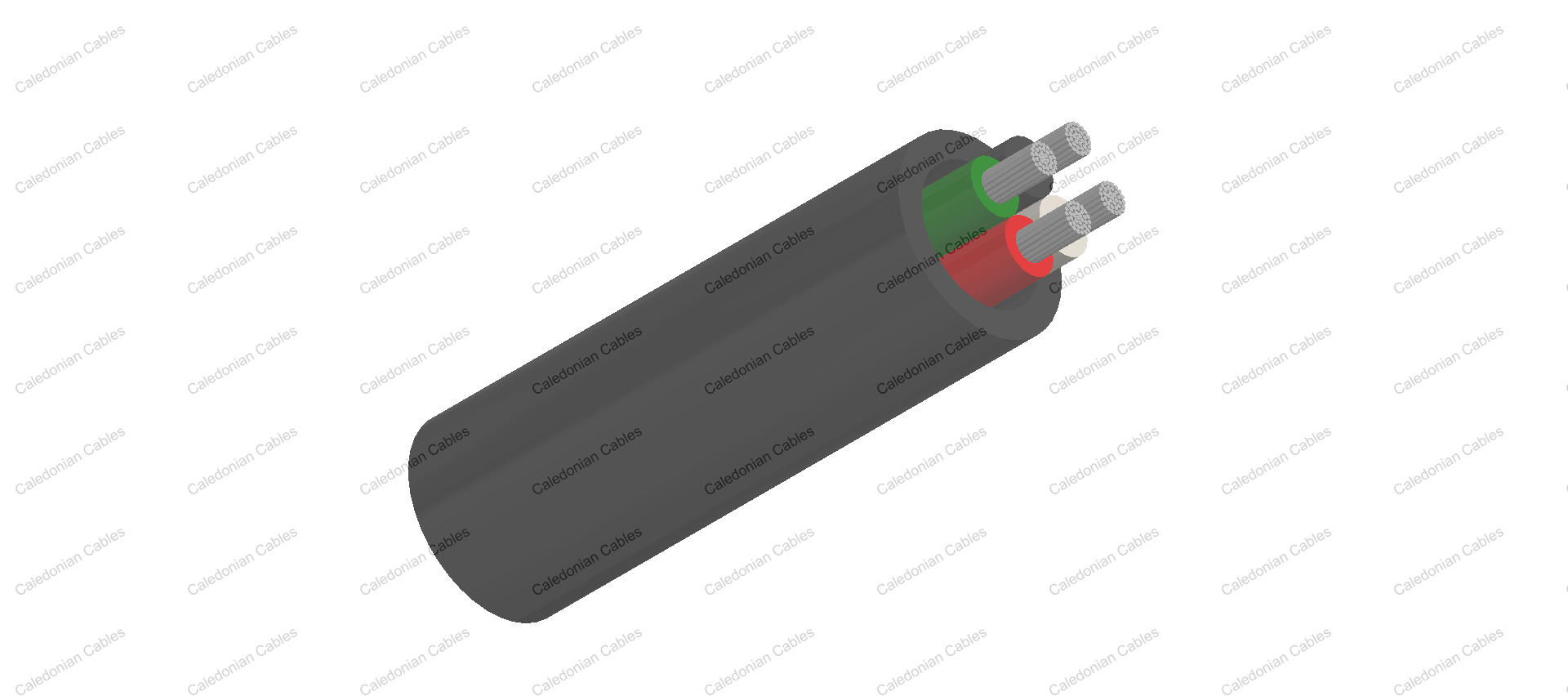

    • Type W Three-Conductor Round Portable Power Cable 2kV

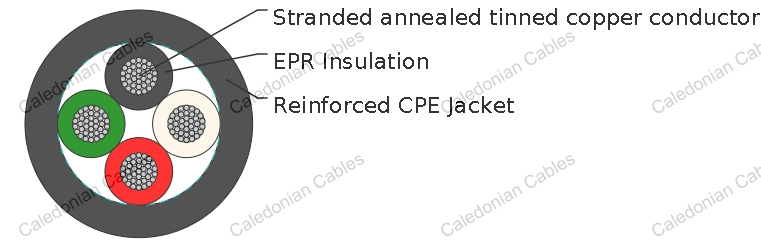

    • Type W Three-Conductor Round Portable Power Cable 2kV

    Application

    These cables are designed for general use where bare grounding conductors are not required or desired.

    Standards

    • ICEA S-75-381/NEMA WC 58
    • ASTM B 172
    • ASTM B 33
    • CAN/CSA C22.2 No. 96

    Construction

    Conductors Stranded annealed tinned copper conductor.
    Insulation Ethylene Propylene Rubber (EPR).
    Jacket Reinforced heavy-duty/extra-heavy-duty Chlorinated Polyethylene (CPE), black. (Cables having a nominal outside diameter of more than 2.0 inches require extra-heavy-duty jackets.)

    Options

    Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
    Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

    Mechanical and Thermal Properties

    Minimum Bending Radius 6×OD
    Maximum Conductor Operating Temperature +90℃

    Dimensions and Weight

    Construction No. of Strands Nominal Insulation Thickness Nominal Jacket Thickness Nominal Overall Diameter Nominal Weight Ampacity
    No. of cores × AWG/kcmil - inch mm inch mm inch mm lbs/kft kg/km A
    3×8 133 0.06 1.5 0.125 3.2 0.91 23.1 550 818 59
    3×6 133 0.06 1.5 0.140 3.6 1.01 25.7 730 1086 79
    3×4 259 0.06 1.5 0.155 3.9 1.17 29.7 1020 1518 104
    3×2 259 0.06 1.5 0.155 3.9 1.34 34.0 1430 2128 138
    3×1 259 0.08 2.0 0.170 4.3 1.51 38.4 1800 2678 161
    3×1/0 266 0.08 2.0 0.170 4.3 1.65 41.9 2140 3184 186
    3×2/0 342 0.08 2.0 0.190 4.8 1.75 44.5 2580 3839 215
    3×3/0 418 0.08 2.0 0.190 4.8 1.89 48.0 2922 4347 249
    3×4/0 532 0.08 2.0 0.205 5.2 2.04 51.8 3800 5654 287
    3×250 741 0.095 2.4 0.220 5.6 2.39 60.7 4368 6500 320
    3×350 888 0.095 2.4 0.235 6.0 2.66 67.5 5895 8772 394
    3×500 1221 0.095 2.4 0.250 6.4 2.98 75.8 7820 11638 487

    Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
