    Type SHD Three-Conductor Flat Portable Power Cable 2kV

    • Type SHD Three-Conductor Flat Portable Power Cable 2kV

    Application

    These flat parallel cables are designed for use on continuous miners requiring grounding conductors and metallic shielding over each conductor.

    Standards

    • ICEA S-75-381/NEMA WC 58
    • ASTM B 172
    • ASTM B 33
    • CAN/CSA C22.2 No. 96

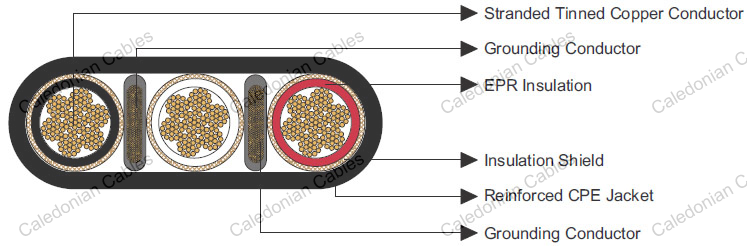

    Construction

    Conductors Stranded annealed tinned copper conductor.
    Insulation Ethylene Propylene Rubber (EPR).
    Insulation Shield Tinned copper/textile braid.
    Grounding Conductor Tinned copper conductorcovered with a conducting extrusion layer.
    Jacket Reinforced extra-heavy-duty Chlorinated Polyethylene (CPE), black.

    Options

    Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
    Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

    Mechanical and Thermal Properties

    Minimum Bending Radius 6×OD
    Maximum Conductor Operating Temperature +90℃

    Dimensions and Weight

    Construction No. of Strands Grounding Conductor Size Nominal Insulation Thickness Nominal Jacket Thickness Nominal Overall Diameter Height×Width Nominal Weight Ampacity
    No. of cores × AWG/kcmil - AWG/kcmil inch mm inch mm inch mm lbs/kft kg/km A
    3×2 259 6 0.07 1.8 0.125 3.2 0.94×2.45 23.9×62.2 2243 3338 159
    3×1 259 5 0.08 2.0 0.140 3.6 1.04×2.64 26.4×67.1 2540 3780 184
    3×1/0 259 4 0.08 2.0 0.140 3.6 1.08×2.82 27.4×71.6 2915 4338 211
    3×2/0 329 3 0.08 2.0 0.155 3.9 1.18×2.99 30.0×76.0 3346 4980 243
    3×3/0 413 2 0.08 2.0 0.155 3.9 1.25×3.29 31.8×83.6 3890 5789 279

    Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
