    Portable Arc-Welding Cable 600V

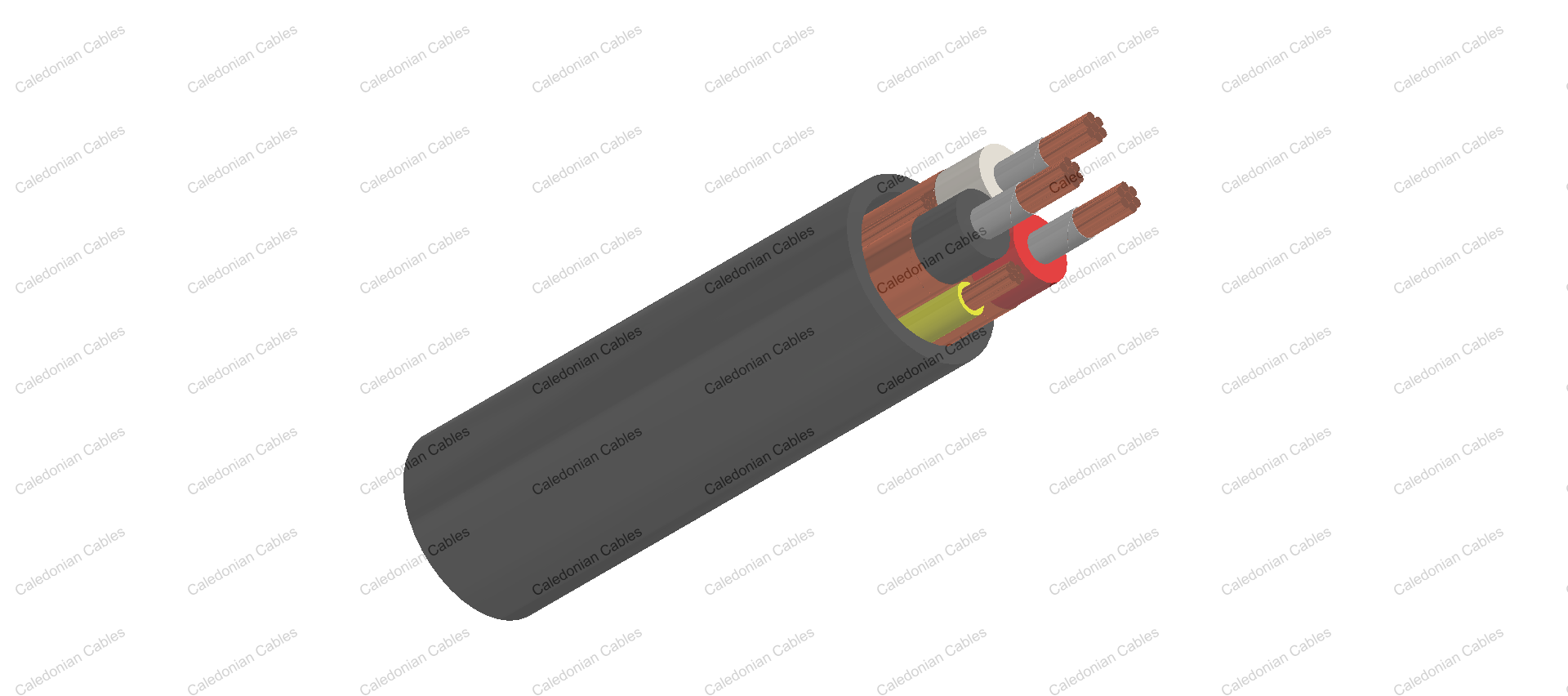

    • Portable Arc-Welding Cable 600V
    • Portable Arc-Welding Cable 600V

    Application

    These cables are designed for use as flexible welding leads connecting the electrode holder to the welding machine in the secondary circuit of electric arc welding systems.

    Standards

    • ICEA S-75-381/NEMA WC 58
    • ASTM B 172
    • ASTM B 33
    • CAN/CSA C22.2 No. 96
    • UL 1581

    Construction

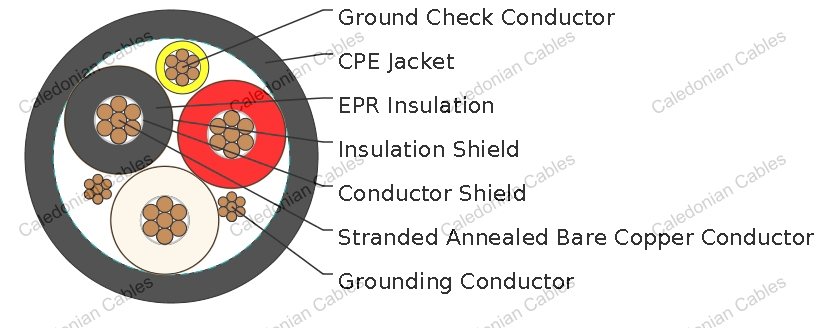

    Conductors Class K/M stranded annealed copper conductor.
    Jacket Heavy-duty/medium-duty Ethylene Propylene Rubber (EPR).

    Options

    Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
    Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

    Mechanical and Thermal Properties

    Minimum Bending Radius 6×OD
    Maximum Conductor Operating Temperature +90℃

    Dimensions and Weight

    Construction No. of Strands Nominal Insulation Thickness Nominal Overall Diameter Nominal Weight Ampacity
    No. of cores×AWG/kcmil - inch mm inch mm lbs/kft kg/km A
    1×6 259 0.060 1.5 0.37 9.4 124 184 125
    1×4 420 0.060 1.5 0.42 10.7 180 268 182
    1×2 665 0.060 1.5 0.49 12.5 268 399 271
    1×1 836 0.080 2.0 0.53 13.3 319 475 360
    1×1/0 1045 0.080 2.0 0.59 14.9 415 617 444
    1×2/0 1330 0.080 2.0 0.64 16.3 508 756 535
    1×3/0 1672 0.080 2.0 0.70 17.8 628 934 667
    1×4/0 2107 0.080 2.0 0.81 20.7 775 1153 809
    1×250 2499 0.095 2.4 0.88 22.4 934 1390 1048
    1×350 3458 0.095 2.4 1.01 25.6 1267 1885 1396
    1×500 5054 0.095 2.4 1.18 30.0 1801 2680 1973

    Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
