    NSHTOEU 0.6/1kV LHD Cables

    Applications

    These cables are used for frequently changing dynamic loads, such as reeling cables for scoops (LHDs) in underground mines, suitable for mono-spiral reels and cylindrical reels.

    Standards

    VDE 0250 Part 814

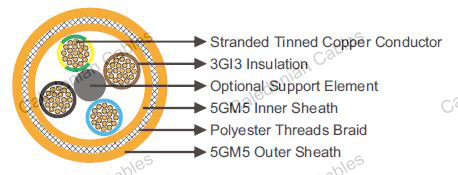

    Construction

    Conductors:

    Flexible stranded tinned copper conductor.
    Insulation:

    EPR type 3GI3.
    Optional Support Element:

    Central support element.
    Inner Sheath:

    PCP type 5GM5.
    Anti-torsion Braid:

    Reinforced braid of polyester threads in a vulcanized bond between inner and outer sheath.
    Outer Sheath:

    PCP type 5GM5.

    Dimensions and Weight

    Number of Cores×Nominal Cross Section Minimum Overall Diameter Maximum Overall Diameter Nominal Weight
    No.×mm² mm mm kg/km
    4x16(6 kN) 27.5 31.5 1500
    4x35(12 kN) 37.5 42.0 2920
    4x50(12 kN) 43.0 48.0 3970
    4x50(30 kN) 42.0 44.0 3660
    4x70 (20kN) 47.0 52.0 5530
    4x95 (50kN) 53.0 58.0 6500
