    Type 450 3.3 to 33KV

    Applications

    These cablesare suitable for supply of power to a wide range of applications, from dragline cable to slow reelingapplications, where copper screened cable is required but light weight and smaller dimensions are also desired.

    Standards

    AS/NZS 2802:2000

    AS/NZS 1125

    AS/NZS 3808

    AS/NZS 5000.1

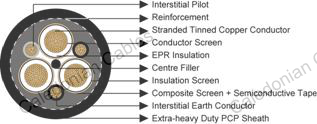

    Construction

    3×Conductors: Flexible stranded tinned annealed copper conductor.

    Conductor Screen:Polyester barrier tape and extruded semiconductive tape.

    Insulation: EPR.

    Insulation Screen:Semiconductive tape.

    Composite Screen:Tinned annealed copper braiding interwove with polyester yarn, covered with semiconductive tape.

    Filler: Elastomer centre filler.

    2×Interstitial Earth Conductor: CSP insulated flexible stranded tinned copper conductor.

    1×Interstitial Pilot:EPR covered flexible stranded tinned copper conductor.

    Textile Reinforcement: Open-weave braid reinforcement.

    Sheath: Extra-heavy duty PCP sheath.

    Dimensions and Weight

    Nominal Conductor Area

    Strand Size

    Insulation Thickness

    Core Screen

    Pilot/Earth Conductor

    Thickness of Sheath

    Nominal Overall Diameter

    Nominal Weight

    Strand Size

    Area of Screen

    Strand Size

    Thickness of Covering

    mm²

    No/mm

    mm

    No/mm

    mm²

    No/mm

    mm

    mm

    mm

    kg/100m

    Type 450.3 Class1

    16

    126/0.40

    2.2

    128/0.25

    6.3

    120/0.30

    1.4

    4.5

    42.8

    266

    25

    209/0.40

    2.2

    118/0.30

    8.3

    120/0.30

    1.4

    4.8

    46.9

    338

    35

    285/0.40

    2.2

    127/0.30

    9.0

    120/0.30

    1.4

    5.1

    50.3

    392

    50

    380/0.40

    2.4

    141/0.30

    10.0

    183/0.30

    1.4

    5.6

    55.5

    487

    70

    203/0.67

    2.4

    117/0.40

    14.7

    54/0.67

    1.4

    6.0

    61.1

    637

    95

    259/0.67

    2.4

    123/0.40

    15.5

    70/0.67

    1.6

    6.3

    64.3

    734

    120

    336/0.67

    2.4

    135/0.40

    17.0

    84/0.67

    1.6

    6.4

    69.0

    867

    150

    427/0.67

    2.4

    144/0.40

    18.1

    112/0.67

    1.6

    6.6

    73.3

    1022

    185

    518/0.67

    2.4

    144/0.40

    18.1

    132/0.67

    1.6

    6.7

    78.1

    1175

    240

    672/0.67

    2.4

    136/0.50

    26.7

    168/0.67

    1.6

    6.9

    84.5

    1440

    300

    854/0.67

    2.4

    144/0.50

    28.3

    228/0.67

    1.6

    7.0

    90.4

    1741

    Type 450.6 Class1

    16

    126/0.40

    3.0

    118/0.30

    8.3

    120/0.30

    1.4

    5.0

    47.6

    317

    25

    209/0.40

    3.0

    129/0.30

    9.1

    120/0.30

    1.6

    5.2

    51.2

    382

    35

    285/0.40

    3.0

    139/0.30

    9.8

    120/0.30

    1.6

    5.5

    54.7

    443

    50

    380/0.40

    3.0

    149/0.30

    10.5

    177/0.30

    1.6

    5.9

    58.8

    534

    70

    203/0.67

    3.0

    123/0.40

    15.5

    54/0.67

    1.6

    6.3

    64.3

    682

    95

    259/0.67

    3.0

    130/0.40

    16.3

    70/0.67

    1.8

    6.4

    67.1

    771

    120

    336/0.67

    3.0

    141/0.40

    17.7

    84/0.67

    1.8

    6.5

    71.9

    912

    150

    427/0.67

    3.0

    144/0.40

    18.1

    112/0.67

    1.8

    6.6

    76.0

    1073

    185

    518/0.67

    3.0

    144/0.40

    18.1

    132/0.67

    1.8

    6.8

    80.9

    1222

    240

    672/0.67

    3.0

    141/0.50

    27.7

    168/0.67

    1.8

    7.0

    87.4

    1502

    300

    854/0.67

    3.0

    144/0.50

    28.3

    228/0.67

    1.8

    7.1

    93.2

    1790

    Type 450.11 Class1

    25

    209/0.40

    5.0

    120/0.40

    15.1

    120/0.30

    2.0

    6.3

    62.8

    542

    35

    285/0.40

    5.0

    127/0.40

    16.0

    120/0.30

    2.0

    6.4

    65.8

    601

    50

    380/0.40

    5.0

    135/0.40

    17.0

    183/0.30

    2.0

    6.5

    69.3

    692

    70

    203/0.67

    5.0

    144/0.40

    18.1

    54/0.67

    2.0

    6.6

    73.8

    826

    95

    259/0.67

    5.0

    144/0.40

    18.1

    70/0.67

    2.2

    6.7

    76.6

    926

    120

    336/0.67

    5.0

    144/0.40

    18.1

    84/0.67

    2.2

    6.9

    81.6

    1082

    150

    427/0.67

    5.0

    139/0.50

    27.3

    112/0.67

    2.2

    7.0

    86.1

    1263

    185

    518/0.67

    5.0

    144/0.50

    28.3

    132/0.67

    2.2

    7.1

    90.8

    1433

    240

    627/0.67

    5.0

    144/0.50

    28.3

    168/0.67

    2.2

    7.3

    96.8

    1690

    300

    854/0.67

    5.0

    144/0.50

    28.3

    228/0.67

    2.2

    7.4

    102.7

    2000

    Type 450.22 Class1

    35

    285/0.40

    7.6

    144/0.40

    18.1

    120/0.30

    2.5

    6.8

    78.4

    805

    50

    380/0.40

    7.6

    144/0.40

    18.1

    183/0.30

    2.5

    6.9

    81.8

    900

    70

    203/0.67

    7.6

    140/0.50

    27.5

    54/0.67

    2.5

    7.0

    86.8

    1070

    95

    259/0.67

    7.6

    144/0.50

    28.3

    70/0.67

    2.5

    7.2

    89.8

    1180

    120

    336/0.67

    7.6

    144/0.50

    28.3

    84/0.67

    2.5

    7.3

    94.5

    1350

    150

    427/0.67

    7.6

    144/0.50

    28.3

    112/0.67

    2.5

    7.4

    98.6

    1520

    185

    518/0.67

    7.6

    144/0.50

    28.3

    132/0.67

    2.5

    7.5

    103.4

    1700

    240

    627/0.67

    7.6

    144/0.50

    28.3

    168/0.67

    2.5

    7.7

    109.4

    1980

    300

    854/0.67

    7.6

    144/0.50

    28.3

    228/0.67

    2.5

    7.9

    115.4

    2310

    Type 450.33 Class1

    50

    380/0.40

    10.5

    144/0.50

    28.3

    183/0.30

    2.5

    7.4

    96.9

    1222

    70

    203/0.67

    10.5

    144/0.50

    28.3

    54/0.67

    2.5

    7.5

    101.4

    1385

    95

    259/0.67

    10.5

    144/0.50

    28.3

    70/0.67

    2.5

    7.7

    104.4

    1505

    120

    336/0.67

    10.5

    144/0.50

    28.3

    84/0.67

    2.5

    7.8

    109.2

    1680

    185

    518/0.67

    10.5

    144/0.50

    28.3

    132/0.67

    2.5

    8.0

    118.0

    2060

    240

    627/0.67

    10.5

    144/0.50

    28.3

    168/0.67

    2.5

    8.2

    124.0

    2360

    300

    854/0.67

    10.5

    144/0.50

    28.3

    228/0.67

    2.5

    8.4

    130.1

    2710
