    Type 441 (class 2) 1.1/1.1KV

    Applications

    These cables are mainly used as flexible feedertrailing cables for power supply to machinery and equipment, include 3 large pilots and a centralsemiconductive cradle for support and protection of power cores

    Standards

    AS/NZS 2802:2000

    AS/NZS 1125

    AS/NZS 3808

    AS/NZS 5000.1

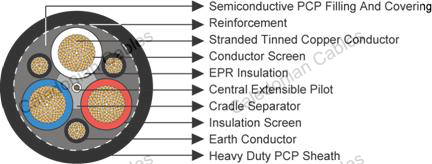

    Construction

    3×Conductors: Flexible stranded tinned annealed copper conductor.

    Conductor Screen: polyester barrier tape.

    Insulation: EPR.

    Insulation Screen:Semiconductive tape.

    Cradle Separator: Semiconductive PCP.

    Overall Core Screen: SemiconductivePCP filling andcovering.

    3×Interstitial Earth Conductor: Semiconductive PCP insulated flexible stranded tinned copper conductor.

    1×Central Extensible Pilot:EPR covered flexible stranded tinned copper conductor.

    TextileReinforcement: Open-weave braid reinforcement.

    Sheath: Heavy duty PCP sheath.

    Dimensions and Weight

    Nominal Conductor Area

    Strand Size

    Insulation Thickness

    Earth Conductor

    Pilot Conductor

    Thickness of Sheath

    Nominal Overall Diameter

    Nominal Weight

    Strand Size

    Thickness of Covering

    Strand Size

    Thickness of Covering

    mm²

    No/mm

    mm

    No/mm

    mm

    No/mm

    mm

    mm

    mm

    kg/100m

    Type 441.1 Class2

    6

    84/0.30

    1.5

    33/0.30

    0.8

    24/0.20

    0.8

    3.8

    28.5

    111

    10

    77/0.40

    1.5

    51/0.30

    0.8

    24/0.20

    0.8

    3.8

    31.1

    136

    16

    126/0.40

    1.6

    81/0.30

    1.0

    24/0.20

    0.8

    3.9

    34.1

    176

    25

    209/0.40

    1.6

    81/0.30

    1.0

    24/0.20

    0.8

    4.2

    37.9

    231

    35

    285/0.40

    1.6

    81/0.30

    1.0

    24/0.20

    0.8

    4.4

    41.2

    274

    50

    380/0.40

    1.7

    120/0.30

    1.0

    40/0.20

    0.8

    4.9

    45.9

    349

    70

    203/0.67

    1.8

    39/0.67

    1.0

    40/0.20

    0.8

    5.3

    52.2

    481

    95

    259/0.67

    2.0

    48/0.67

    1.0

    40/0.20

    0.8

    5.8

    56.7

    579

    120

    336/0.67

    2.1

    60/0.67

    1.0

    40/0.20

    0.8

    6.3

    62.7

    724

    150

    427/0.67

    2.3

    77/0.67

    1.2

    40/0.20

    0.8

    6.7

    68.3

    881

    185

    518/0.67

    2.5

    91/0.67

    1.2

    40/0.20

    0.8

    7.3

    74.9

    1049

    240

    672/0.67

    2.8

    119/0.67

    1.2

    40/0.20

    0.8

    8.0

    83.3

    1329

    300

    854/0.67

    3.0

    156/0.67

    1.4

    40/0.20

    0.8

    8.7

    91.2

    1629
