    Type 2S 1.1/1.1KV Collectively Screened

    Applications

    These collectively copper screened cables are used for wiring of machines or between machines and equipment wherea rubber cable is desired. These cables are also used for longwall lighting circuits, and may contain pilot and controlcores or twisted pair and screened cores.

    Standards

    AS/NZS 1972:2006

    AS/NZS 1125

    AS/NZS 3808

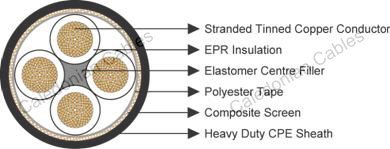

    Construction

    Conductors: Stranded tinned annealed copper conductor.

    Insulation: EPR.

    Filling: Elastomer centre filler.

    Bedding: Polyester tape.

    Composite Screen (earth conductor): Tinned annealed copper braiding interwove with polyester yarn.

    Sheath: Heavy duty CPE sheath

    Dimensions and Weight

    Number of Core

    Nominal Conductor Area

    Strand Size

    Insulation Thickness

    Core screen

    Nominal Sheath Thickness

    Nominal Overall Diameter

    Nominal Weight

    Strand Size

    Area of Screen



    mm²

    No/mm

    mm

    mm

    mm²

    mm

    mm

    kg/100m

    Type 2S 1.1/1kV Collectively Screened

    2

    1.5

    30/0.25

    1.0

    0.20

    5.3

    1.8

    14.7

    17

    4

    1.5

    30/0.25

    1.0

    0.20

    12.1

    1.8

    19.9

    26

    6

    1.5

    30/0.25

    1.0

    0.20

    22.6

    1.8

    25.7

    35

    16

    1.5

    30/0.25

    1.0

    0.25

    113.1

    1.8

    47.1

    71

    20

    1.5

    30/0.25

    1.0

    0.25

    159.0

    1.8

    53.2

    82
