    XLPE Insulated, LSZH Sheathed, Overall Screened & Armoured Instrumentation Cables (Multipair)

    Application

    The armoured LSZH sheathed cables are generally used when the risk of mechanical damage is increased. The galvanized steel wire armour provides excellent protection. Generally, the cables are used within industrial process manufacturing plants for communication, data and voice transmission signals and services. Also used for the interconnection of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke and fume emission.

    Standards

    Basic design to EN 50288-7

    Fire Performance

    Flame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
    Reduced Fire Propagation(Vertically-mounted bundled wires & cable test) EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
    Halogen Free IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
    No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
    Minimum Smoke Emission IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
    No Toxic gases NES 02-713; NF C 20-454
    Sunlight Resistance UL 1581 section 1200
    Oil Resistance ICEA S-73-532**

    Note: Asterisk * denotes superseded standard, ** denotes Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation, *** denotes optional.

    Voltage Rating

    300/500V

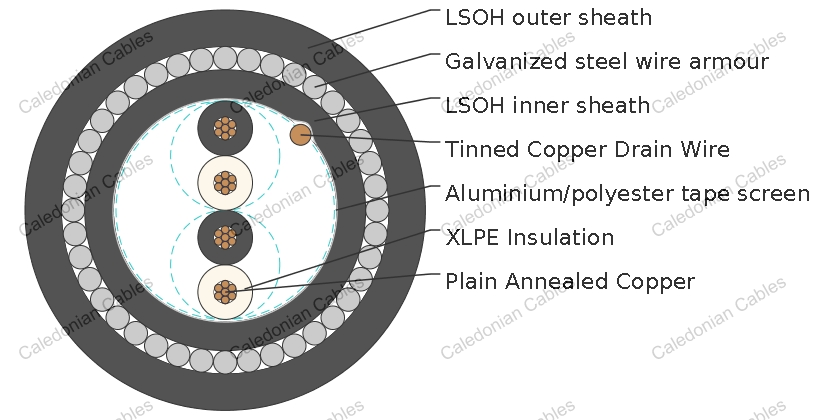

    Cable Construction

    Conductor : Annealed copper solid or plain copper stranded to IEC 60228 Class 2.

    Insulation : Extruded cross-linked XLPE compound, EN 50290. 2-29.

    Pairs : Two insulated conductors uniformly twisted together with a lay not exceeding 100mm.

    Binder tape : PETP transparent tape.

    Overall Screen : Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm².

    Inner Sheath : LSZH compound.

    Amouring : Galvanized steel wire armour.

    Outer Sheath : Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option.

    Colour Code

    Insulation : Black / White, continuously numbered on white core (1, 2..) for multipair.

    Outer Sheath : Black or blue for intrinsically safe systems.

    Physical and Thermal Properties

    Temperature Range During Operation (Fixed State) : -30°C – +90°C

    Temperature Range During Installation (Mobile State) : -5°C – +50°C

    Minimum Bending Radius : 10 × Overall Diameter

    Electrical Roperties

    Conductor Area Size mm² 0.5 0.75 1.0 1.3 1.5
    Insulation thickness (nominal) mm 0.35 0.38 0.4 0.45 0.45
    Conductor resistance (20°C) Ω/km 36.7 25 18.5 14.2 12.3
    Insulation resistance (20°C) MΩ.km(Min.) 5000
    Mutual Capacitance (1 kHz) pF/m(Max.)
      up to 4 pairs 90 90 90 102 102
      above 4 pairs 75 75 75 85 85
    Capacitance unbalance(1 kHz) pF/500 m (Max.) 500
    Inductance mH/km (Max.) 1
    L / R (ratio) (max.) μH/Ω 25 25 25 40 40
    Operating voltage Urms V 300
    Test Voltage Core to Core V 1500
    Core to Screen V 1500

    Construction Parameterst

    Caledonian Cable Code RE-2X(St)HSWAH
    No. of Pairs ×2×Cross Section Nominal Insulation Thickness Nominal Inner Sheath Thickness Nominal Overall Diameter Over InnerSheath Nominal Armour Wire Diameter Nominal Outer Sheath Thickness Nominal Overall Diameter Approx. Weight
      No.×2×mm² mm mm mm mm mm mm kg/km
    0.5mm2, Multipair
    RE-2X(St)HSWAH 2P0.5 2x2x0.5 0.35 0.9 7.6 0.9 1.3 12.0 269
    RE-2X(St)HSWAH 4P0.5 4x2x0.5 0.35 0.9 8.8 0.9 1.4 13.4 325
    RE-2X(St)HSWAH 5P0.5 5x2x0.5 0.35 1.0 9.8 0.9 1.4 14.4 375
    RE-2X(St)HSWAH 6P0.5 6x2x0.5 0.35 1.0 10.6 0.9 1.4 15.2 423
    RE-2X(St)HSWAH 8P0.5 8x2x0.5 0.35 1.0 11.3 0.9 1.4 15.9 473
    RE-2X(St)HSWAH 10P0.5 10x2x0.5 0.35 1.1 12.9 0.9 1.5 17.7 521
    RE-2X(St)HSWAH 12P0.5 12x2x0.5 0.35 1.1 13.5 0.9 1.5 18.3 592
    RE-2X(St)HSWAH 16P0.5 16x2x0.5 0.35 1.1 15.2 0.9 1.5 20.0 823
    RE-2X(St)HSWAH 20P0.5 20x2x0.5 0.35 1.2 16.9 0.9 1.6 21.9 920
    RE-2X(St)HSWAH 24P0.5 24x2x0.5 0.35 1.2 18.3 1.25 1.6 24.0 1028
    0.75mm2, Multipair
    RE-2X(St)HSWAH 2P0.75 2x2x0.75 0.38 0.9 8.5 0.9 1.4 13.1 308
    RE-2X(St)HSWAH 4P0.75 3x2x0.75 0.38 1.0 10.0 0.9 1.4 14.6 371
    RE-2X(St)HSWAH 5P0.75 4x2x0.75 0.38 1.0 10.9 0.9 1.4 15.5 436
    RE-2X(St)HSWAH 6P0.75 5x2x0.75 0.38 1.0 11.8 0.9 1.4 16.4 495
    RE-2X(St)HSWAH 8P0.75 8x2x0.75 0.38 1.1 12.8 0.9 1.5 17.6 533
    RE-2X(St)HSWAH 10P0.75 10x2x0.75 0.38 1.1 14.5 0.9 1.5 19.3 637
    RE-2X(St)HSWAH 12P0.75 12x2x0.75 0.38 1.1 15.1 0.9 1.5 19.9 825
    RE-2X(St)HSWAH 16P0.75 16x2x0.75 0.38 1.2 17.3 0.9 1.6 22.3 965
    RE-2X(St)HSWAH 20P0.75 20x2x0.75 0.38 1.3 19.2 1.25 1.6 24.9 1116
    RE-2X(St)HSWAH 24P0.75 24x2x0.75 0.38 1.3 20.8 1.25 1.6 26.7 1257
    1.0mm2, Multipair
    RE-2X(St)HSWAH 2P1.0 2x2x1.0 0.4 0.9 9.2 0.9 1.4 13.8 336
    RE-2X(St)HSWAH 4P1.0 3x2x1.0 0.4 1.0 10.9 0.9 1.4 15.5 436
    RE-2X(St)HSWAH 5P1.0 4x2x1.0 0.4 1.0 11.9 0.9 1.4 16.5 494
    RE-2X(St)HSWAH 6P1.0 5x2x1.0 0.4 1.0 13.0 0.9 1.4 17.6 550
    RE-2X(St)HSWAH 8P1.0 8x2x1.0 0.4 1.1 14.0 0.9 1.5 18.8 633
    RE-2X(St)HSWAH 10P1.0 10x2x1.0 0.4 1.1 15.9 0.9 1.5 20.7 859
    RE-2X(St)HSWAH 12P1.0 12x2x1.0 0.4 1.2 16.8 0.9 1.5 21.6 972
    RE-2X(St)HSWAH 16P1.0 16x2x1.0 0.4 1.2 19.0 1.25 1.6 24.7 1171
    RE-2X(St)HSWAH 20P1.0 20x2x1.0 0.4 1.3 21.1 1.25 1.7 27.0 1316
    RE-2X(St)HSWAH 24P1.0 24x2x1.0 0.4 1.4 23.1 1.25 1.7 29.0 1520
    1.3mm2, Multipair
    RE-2X(St)HSWAH 2P1.3 2x2x1.3 0.45 1.0 10.4 0.9 1.4 15.0 382
    RE-2X(St)HSWAH 4P1.3 3x2x1.3 0.45 1.0 12.0 0.9 1.4 16.6 510
    RE-2X(St)HSWAH 5P1.3 4x2x1.3 0.45 1.1 13.4 0.9 1.5 18.2 595
    RE-2X(St)HSWAH 6P1.3 5x2x1.3 0.45 1.1 14.6 0.9 1.5 19.4 657
    RE-2X(St)HSWAH 8P1.3 8x2x1.3 0.45 1.2 15.7 0.9 1.5 20.5 869
    RE-2X(St)HSWAH 10P1.3 10x2x1.3 0.45 1.2 17.9 0.9 1.6 23.6 1011
    RE-2X(St)HSWAH 12P1.3 12x2x1.3 0.45 1.3 18.9 1.25 1.6 24.6 1110
    RE-2X(St)HSWAH 16P1.3 16x2x1.3 0.45 1.3 21.4 1.25 1.7 27.3 1361
    RE-2X(St)HSWAH 20P1.3 20x2x1.3 0.45 1.4 23.8 1.25 1.8 29.9 1599
    RE-2X(St)HSWAH 24P1.3 24x2x1.3 0.45 1.5 25.9 1.25 1.8 32.0 1960
    1.5mm2, Multipair
    RE-2X(St)HSWAH 2P1.5 2x2x1.5 0.45 1.0 10.8 0.9 1.4 15.4 419
    RE-2X(St)HSWAH 4P1.5 3x2x1.5 0.45 1.1 12.7 0.9 1.5 17.5 544
    RE-2X(St)HSWAH 5P1.5 4x2x1.5 0.45 1.1 14.0 0.9 1.5 18.8 627
    RE-2X(St)HSWAH 6P1.5 5x2x1.5 0.45 1.2 15.2 0.9 1.5 20.0 833
    RE-2X(St)HSWAH 8P1.5 8x2x1.5 0.45 1.2 16.4 0.9 1.6 21.4 943
    RE-2X(St)HSWAH 10P1.5 10x2x1.5 0.45 1.3 18.8 1.25 1.6 24.5 1095
    RE-2X(St)HSWAH 12P1.5 12x2x1.5 0.45 1.3 19.7 1.25 1.7 25.6 1197
    RE-2X(St)HSWAH 16P1.5 16x2x1.5 0.45 1.4 22.5 1.25 1.7 28.4 1511
    RE-2X(St)HSWAH 20P1.5 20x2x1.5 0.45 1.5 25.0 1.25 1.8 31.1 1968
    RE-2X(St)HSWAH 24P1.5 24x2x1.5 0.45 1.5 27.1 1.25 1.8 33.2 2247
