    PVC Insulated, PVC Sheathed, Overall Screened & Armoured Instrumentation Cables (Multi-triple)

    RE-Y(St)YSWAY 90°C / 300 V

    APPLICATION

    For transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply. Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral. Recommended for use as fire protection messure for people and important material assets.

    STANDARDS

    Basic design to EN 50288-7

    FIRE PERFORMANCE

    Flame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
    Reduced Fire Propagation (Vertically-mounted bundled wires& cable test)*** EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
    Halogen Free IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
    No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
    Minimum Smoke Emission IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
    No Toxic gases NES 02-713; NF C 20-454

    Note: Asterisk * denotes superseded standard, *** denotes optional.

    VOLTAGE RATING

    300V

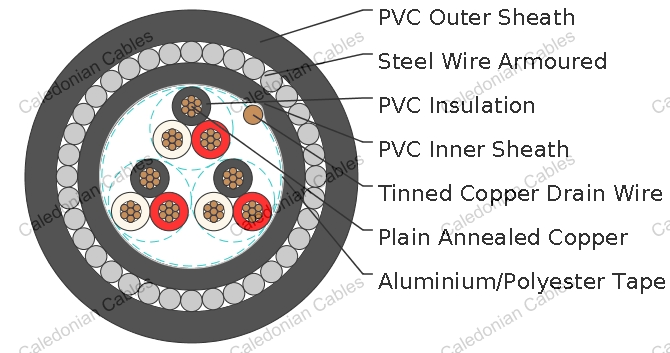

    CABLE CONSTRUCTION

    • Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
    • Insulation: PVC compound as per EN 50290-2-21.
    • Pair:Two conductors twisted to form a pair
    • Lay-up: Pairs laid up in layers of optimum pitch
    • Separator: Polyester tape
    • Overall Screen: Aluminium/polyester tape with tinned copper drain wire, 0.5mm2
    • Inner Sheath: Thermoplastic PVC compound
    • Armour: Galvenized round steel wire, EN 10257-1
    • Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

    COLOUR CODE

    • Insulation: Black / White / Red, continuously numbered on white core(1, 2..)for multitriples.
    • Outer Sheath: Black or blue for intrinsically safe systems

    PHYSICAL and THERMAL PROPERTIES

    • Temperature Range During Operation (Fixed State): -30°C – +90°C
    • Temperature Range During Installation (Mobile State): -5°C – +50°C
    • Minimum Bending Radius: 7.5 X Overall Diameter
    • Sunlight Resistance: UL 1581 section 1200
    • Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation)

    ELECTRICAL ROPERTIES

    CONDUCTOR AREA SIZE MM2 0.5 0.75 1.0 1.3 1.5
    INSULATION THICKNESS (NOMINAL) MM 0.35 0.38 0.4 0.45 0.45
    CONDUCTOR RESISTANCE (20°C) Ω/KM 36.7 25 18.5 14.2 12.3
    INSULATION RESISTANCE (20°C) MΩ.KM (MIN.) 5000
    MUTUAL CAPACITANCE (1KHZ) PF/M (MAX.)
      ≤4 PAIRS 90 90 90 102 102
      ALL OTHER PAIRS 75 75 75 85 85
    CAPACITANCE UNBALANCE (1KHZ) PF/500M (MAX.) 500
    L/R (RATIO) (MAX.) ΜH/Ω 25 25 25 40 40
    INDUCTANCE MH/KM (MAX.) 1
    OPERATING VOLTAGE URMS V 300
    TEST VOLTAGE CORE TO CORE V 1500
    CORE TO SCREEN V 1500

    CONSTRUCTION PARAMETERS

    CALEDONIAN CABLE CODE RE-Y(ST)YSWAY
    NO. OF TRIPLES X3XCROSS SECTION NOMINAL INSULATION THICK- NESS NOMINAL INNER SHEATH THICK-NESS NOMINALOVERALL DIAMETER OVER INNER SHEATH NOMINAL ARMOUR WIRE DIAMETER NOMINAL OUTER SHEATH THICK- NESS NOMINAL OVERALL DIAMETER APPROX. WEIGHT
      NO.X3XMM2 MM MM MM MM MM MM KG/KM
    0.5mm2, Multi-striple
    RE-Y(St)YSWAY 2T0.5 2x3x0.5 0.35 0.9 8.4 0.9 1.4 13.0 326
    RE-Y(St)YSWAY 4T0.5 4x3x0.5 0.35 1.0 9.8 0.9 1.4 14.4 386
    RE-Y(St)YSWAY 5T0.5 5x3x0.5 0.35 1.0 10.8 0.9 1.4 15.4 454
    RE-Y(St)YSWAY 6T0.5 6x3x0.5 0.35 1.0 12.1 0.9 1.4 16.7 513
    RE-Y(St)YSWAY 8T0.5 8x3x0.5 0.35 1.1 13.1 0.9 1.5 17.9 570
    RE-Y(St)YSWAY 10T0.5 10x3x0.5 0.35 1.1 14.7 0.9 1.5 19.5 658
    RE-Y(St)YSWAY 12T0.5 12x3x0.5 0.35 1.1 15.2 0.9 1.5 20.0 844
    RE-Y(St)YSWAY 16T0.5 16x3x0.5 0.35 1.2 17.4 0.9 1.6 22.4 1001
    RE-Y(St)YSWAY 20T0.5 20x3x0.5 0.35 1.2 19.1 1.25 1.6 24.8 1177
    RE-Y(St)YSWAY 24T0.5 24x3x0.5 0.35 1.3 20.9 1.25 1.7 26.8 1327
    0.75mm2, Multi-striple
    RE-Y(St)YSWAY 2T0.75 2x3x0.75 0.38 1.0 10.6 0.9 1.4 13.9 369
    RE-Y(St)YSWAY 4T0.75 4x3x0.75 0.38 1.1 12.4 0.9 1.4 15.5 462
    RE-Y(St)YSWAY 5T0.75 5x3x0.75 0.38 1.1 13.7 0.9 1.4 16.6 526
    RE-Y(St)YSWAY 6T0.75 6x3x0.75 0.38 1.1 15.4 0.9 1.5 18.5 614
    RE-Y(St)YSWAY 8T0.75 8x3x0.75 0.38 1.2 16.7 0.9 1.5 19.5 697
    RE-Y(St)YSWAY 10T0.75 10x3x0.75 0.38 1.3 19.0 0.9 1.5 21.5 918
    RE-Y(St)YSWAY 12T0.75 12x3x0.75 0.38 1.3 19.7 0.9 1.7 22.3 1027
    RE-Y(St)YSWAY 16T0.75 16x3x0.75 0.38 1.4 22.5 1.25 1.6 25.4 1237
    RE-Y(St)YSWAY 20T0.75 20x3x0.75 0.38 1.5 24.9 1.25 1.7 27.6 1443
    RE-Y(St)YSWAY 24T0.75 24x3x0.75 0.38 1.6 27.2 1.25 1.7 29.6 1628
    1.0mm2, Multi-striple
    RE-Y(St)YSWAY 2T1.0 2x3x1 0.4 1.0 11.5 0.9 1.4 15.0 403
    RE-Y(St)YSWAY 4T1.0 4x3x1 0.4 1.1 13.4 0.9 1.4 16.5 528
    RE-Y(St)YSWAY 5T1.0 5x3x1 0.4 1.1 14.8 0.9 1.5 18.0 619
    RE-Y(St)YSWAY 6T1.0 6x3x1 0.4 1.2 16.9 0.9 1.5 19.8 829
    RE-Y(St)YSWAY 8T1.0 8x3x1 0.4 1.2 18.1 0.9 1.5 20.9 945
    RE-Y(St)YSWAY 10T1.0 10x3x1 0.4 1.3 20.7 0.9 1.6 24.1 1074
    RE-Y(St)YSWAY 12T1.0 12x3x1 0.4 1.3 21.4 1.25 1.6 24.7 1212
    RE-Y(St)YSWAY 16T1.0 16x3x1 0.4 1.4 24.4 1.25 1.7 27.6 1478
    RE-Y(St)YSWAY 20T1.0 20x3x1 0.4 1.5 27.1 1.25 1.7 30.0 1736
    RE-Y(St)YSWAY 24T1.0 24x3x1 0.4 1.6 29.6 1.25 1.8 32.2 2197
    1.3mm2, Multi-striple
    RE-Y(St)YSWAY 2T1.3 2x3x1,3 0.45 1.1 12.8 0.9 1.4 16.1 488
    RE-Y(St)YSWAY 4T1.3 4x3x1,3 0.45 1.1 14.7 0.9 1.5 18.2 620
    RE-Y(St)YSWAY 5T1.3 5x3x1,3 0.45 1.2 16.5 0.9 1.5 19.6 720
    RE-Y(St)YSWAY 6T1.3 6x3x1,3 0.45 1.3 18.8 0.9 1.5 21.7 952
    RE-Y(St)YSWAY 8T1.3 8x3x1,3 0.45 1.3 20.1 0.9 1.6 23.8 1076
    RE-Y(St)YSWAY 10T1.3 10x3x1,3 0.45 1.4 23.0 1.25 1.7 26.6 1320
    RE-Y(St)YSWAY 12T1.3 12x3x1,3 0.45 1.5 24.0 1.25 1.7 27.3 1454
    RE-Y(St)YSWAY 16T1.3 16x3x1,3 0.45 1.6 27.4 1.25 1.8 30.5 1785
    RE-Y(St)YSWAY 20T1.3 20x3x1,3 0.45 1.7 30.4 1.25 1.8 33.2 2323
    RE-Y(St)YSWAY 24T1.3 24x3x1,3 0.45 1.8 33.1 1.60 1.9 36.6 2633
    1.5mm2, Multi-striple
    RE-Y(St)YSWAY 2T1.5 2x3x1,5 0.45 1.1 13.2 0.9 1.4 16.5 491
    RE-Y(St)YSWAY 4T1.5 4x3x1,5 0.45 1.2 15.4 0.9 1.5 18.8 673

    Note : Other conductor sizes & core configurations are available upon request.
