    PVC Insulated, PVC Sheathed & CWB Screened Instrumentation Cables (Multipair)

    RE-Y(c)Y 90°c / 300V

    APPLICATION

    For transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply. Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral. Recommended for use as fire protection messure for people and important material assets.

    STANDARDS

    Basic design to EN 50288-7

    FIRE PERFORMANCE

    Flame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
    Reduced Fire Propagation (Vertically-mounted bundled wires& cable test)*** EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
    Halogen Free IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
    No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
    Minimum Smoke Emission IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
    No Toxic gases NES 02-713; NF C 20-454

    Note: Asterisk * denotes superseded standard, *** denotes optional.

    VOLTAGE RATING

    300V

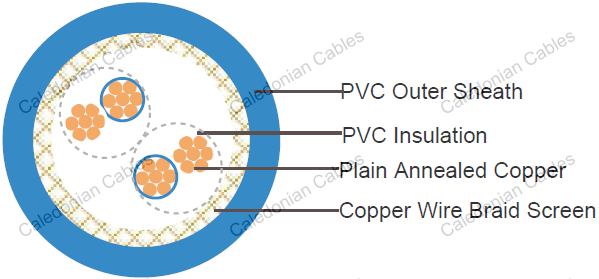

    CABLE CONSTRUCTION

    • Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
    • Insulation: PVC compound as per EN 50290-2-21.
    • Pair:Two conductors twisted to form a pair
    • Lay-up: Pairs laid up in layers of optimum pitch
    • Separator: Polyester tape
    • Overall Screen: Tinned copper wire braid
    • Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

    COLOUR CODE

    • Insulation: Black / White, continuously numbered on white core(1, 2..)for multipair.
    • Outer Sheath: Black or blue for intrinsically safe systems

    PHYSICAL and THERMAL PROPERTIES

    • Temperature Range During Operation (Fixed State): -30°C – +90°C
    • Temperature Range During Installation (Mobile State): -5°C – +50°C
    • Minimum Bending Radius: 7.5 X Overall Diameter
    • Sunlight Resistance: UL 1581 section 1200
    • Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation)

    ELECTRICAL ROPERTIES

    CONDUCTOR AREA SIZE MM2 0.5 0.75 1.0 1.3 1.5
    INSULATION THICKNESS (NOMINAL) MM 0.4 0.4 0.4 0.45 0.45
    CONDUCTOR RESISTANCE (20°C) Ω/KM 36.7 25 18.5 14.2 12.3
    INSULATION RESISTANCE (20°C) MΩ.KM (MIN.) 5000
    MUTUAL CAPACITANCE (1KHZ) PF/M (MAX.)
      ≤4 PAIRS 115 115 115 120 120
      ALL OTHER PAIRS 90 90 90 105 105
    CAPACITANCE UNBALANCE (1KHZ) PF/500M (MAX.) 300
    L/R (RATIO) (MAX.) ΜH/Ω 25 25 25 40 40
    OPERATING VOLTAGE URMS V 300
    TEST VOLTAGE CORE TO CORE V 1500
    CORE TO SCREEN V 1500

    CONSTRUCTION PARAMETERS

    CALEDONIAN CABLE CODE RE-Y(C)Y
    NO. OF PAIRS X2XCROSS SECTION COPPERWEIGHT APPROX. WEIGHT
      NO.X2XMM2 KG/KM KG/KM
    0.5mm2, Multipair
    RE-Y(C)Y 2P0.5 2x2x0.50 10.7 143
    RE-Y(C)Y 4P0.5 4x2x0.50 11.1 159
    RE-Y(C)Y 5P0.5 5x2x0.50 11.9 181
    RE-Y(C)Y 6P0.5 6x2x0.50 13.6 230
    RE-Y(C)Y 8P0.5 8x2x0.50 14.2 264
    RE-Y(C)Y 12P0.5 12x2x0.50 16.4 343
    RE-Y(C)Y 16P0.5 16x2x0.50 18.2 418
    RE-Y(C)Y 20P0.5 20x2x0.50 19.7 487
    RE-Y(C)Y 24P0.5 24x2x0.50 21.1 557
    0.75mm2, Multipair
    RE-Y(C)Y 2P0.75 2x2x0.75 11.4 160
    RE-Y(C)Y 3P0.75 3x2x0.75 11.9 185
    RE-Y(C)Y 4P0.75 4x2x0.75 12.7 214
    RE-Y(C)Y 6P0.75 6x2x0.75 14.6 278
    RE-Y(C)Y 8P0.75 8x2x0.75 15.4 324
    RE-Y(C)Y 12P0.75 12x2x0.75 17.8 427
    RE-Y(C)Y 16P0.75 16x2x0.75 19.8 526
    RE-Y(C)Y 20P0.75 20.x2x0.75 21.5 623
    RE-Y(C)Y 24P0.75 24x2x0.75 23.1 714
    1.0mm2, Multipair
    RE-Y(C)Y 2P1.0 2x2x1.0 12.3 184
    RE-Y(C)Y 3P1.0 3x2x1.0 12.8 214
    RE-Y(C)Y 4P1.0 4x2x1.0 13.7 251
    RE-Y(C)Y 6P1.0 6x2x1.0 15.6 326
    RE-Y(C)Y 8P1.0 8x2x1.0 16.4 382
    RE-Y(C)Y 12P1.0 12x2x1.0 19.0 511
    RE-Y(C)Y 16P1.0 16x2x1.0 21.2 636
    RE-Y(C)Y 20P1.0 20.x2x1.0 23.5 775
    RE-Y(C)Y 24P1.0 24x2x1.0 25.3 892
    1.3mm2, Multipair
    RE-Y(C)Y 2P1.3 2x2x1.3 12.9 204
    RE-Y(C)Y 3P1.3 3x2x1.3 13.5 242
    RE-Y(C)Y 4P1.3 4x2x1.3 14.5 285
    RE-Y(C)Y 6P1.3 6x2x1.3 16.7 375
    RE-Y(C)Y 8P1.3 8x2x1.3 17.4 444
    RE-Y(C)Y 12P1.3 12x2x1.3 20.2 599
    RE-Y(C)Y 16P1.3 16x2x1.3 22.6 750
    RE-Y(C)Y 20P1.3 20x2x1.3 25.1 916
    RE-Y(C)Y 24P1.3 24x2x1.3 27.0 1064

    Note : Other conductor sizes & core configurations are available upon request.
