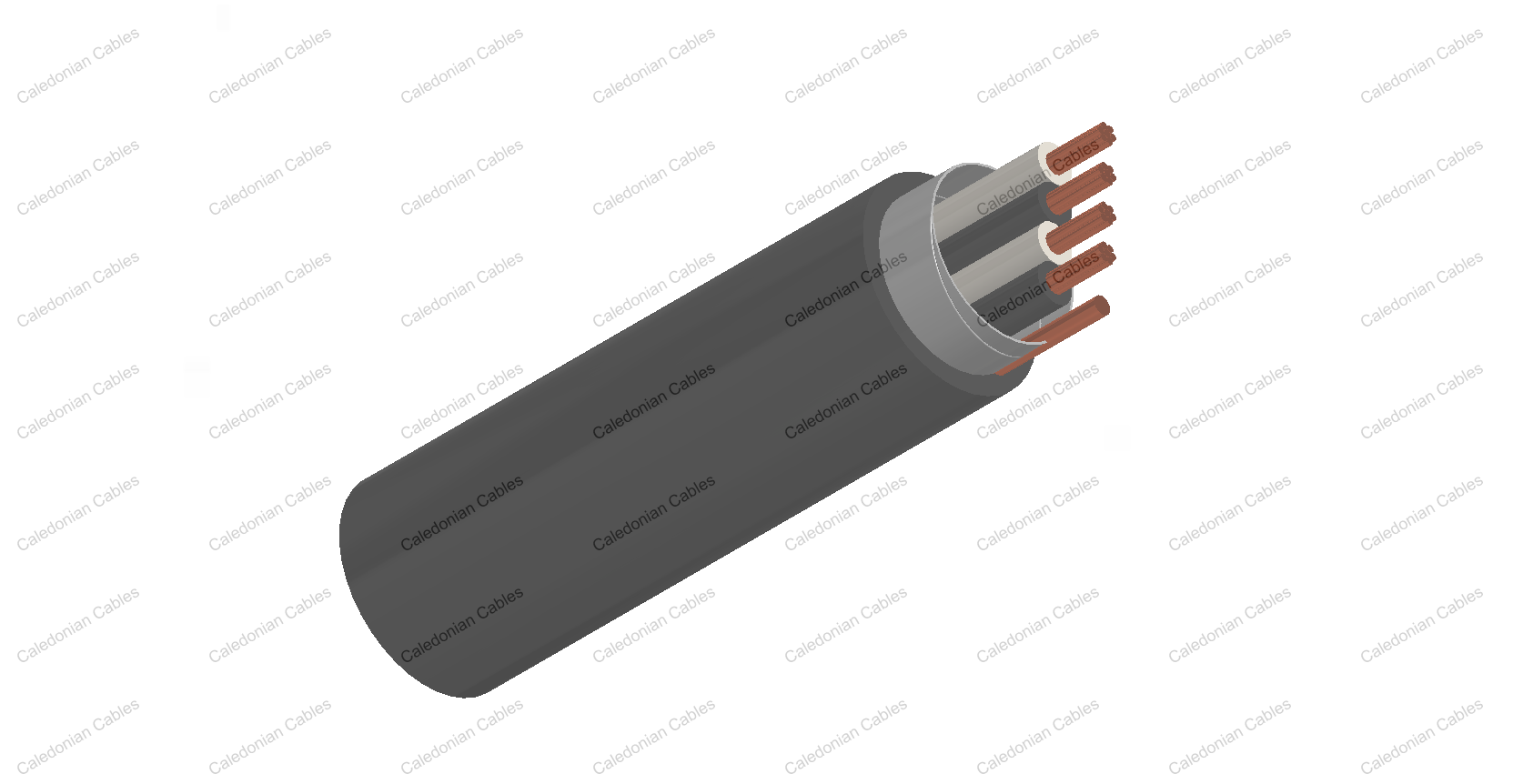

PE Insulated, LSZH Sheathed & Overall Screened Instrumentation Cables (Multipair)

Application

For transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply. Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral. Recommended for use as fire protection messure for people and important material assets.

Standards

Basic design to EN 50288-7

Fire Performance

Flame Retardance (Single Vertical Wire Test)	EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1; DIN VDE 0482-265-2-1
Reduced Fire Propagation(Vertically-mounted bundled wires & cable test)	EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free	IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission	IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission	IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2; BS 7622-1&2
No Toxic gases	NES 02-713; NF C 20-454
Sunlight Resistance	UL 1581 section 1200
Oil Resistance	ICEA S-73-532**

Note: Asterisk * denotes superseded standard, ** denotes Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation, *** denotes optional.

Voltage Rating

300V

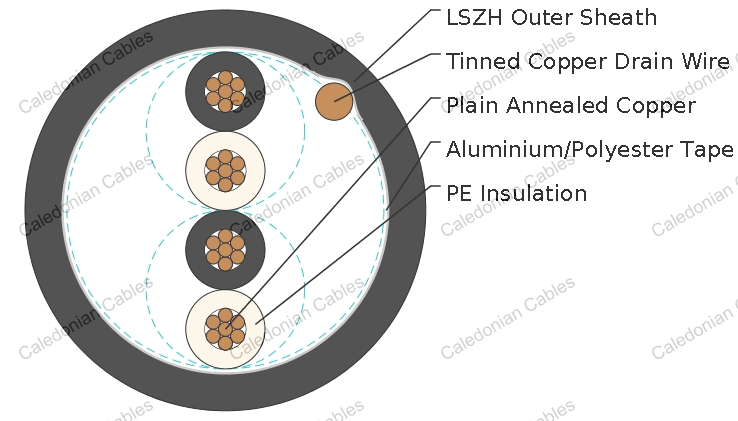

Cable Construction

Conductor: Annealed copper solid or plain copper stranded to IEC60228 Class2.?
Insulation: PE compound,EN50290.2-23.Pairs:Two insulated conductors uiformly twisted together with alaynot exceeding 100mm
Binder tape: PETP transparent tape
Overall Screen:Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire,0.5mm2
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS76552.6 can be offered). UV resistance, hydrocarbon resistance ,oil resistance, anti rodent and anti termite properties canbe offered as option.

Colour Code

Insulation: Black / White, continuously numbered on white core(1, 2..)for multipair.
Outer Sheath: Black or Blue for intrinsically safe systems

Physical and Thermal Properties

Temperature Range During Operation (Fixed State): -30°C – +90°C
Temperature Range During Installation (Mobile State): -5°C – +50°C

Electrical Roperties

ConductorAreaSize		mm	0.5	0.75	1.0	1.3	1.5
Insulationthickness(nominal)		mm	0.35	0.38	0.4	0.45	0.45
Conductorresistance(20°C)		Ω/km	36.7	25	18.5	14.2	12.3
Insulationresistance(20°C)		MΩ.km(Min.)	5000
MutualCapacitance(1kHz)		pF/m(Max.)
		≤4pairs	90	90	90	102	102
		allotherpairs	75	75	75	85	85
Capacitanceunbalance(1kHz)		pF/500m(Max.)	500
Inductance		mH/km(Max.)	1
L/R(ratio)(max.)		μH/Ω	25	25	25	40	40
OperatingvoltageUrms		V	300
TestVoltage	CoretoCore	V	1500
TestVoltage	CoretoScreen	V	1500

Construction Parameterst

Cable Code	RE-2Y(St)H
Cable Code	No.of Pairsx2x CrossSection	Nominal Insulation Thickness	Nominal Outer Sheath Thickness	Nominal Overall Diameter	Approx. Weight
	No.x2xmm2	mm	mm	mm	kg/km
0.5mm2,Multipair
RE-2Y(St)H2P0.5	2x2x0.5	0.35	0.9	7.6	66
RE-2Y(St)H4P0.5	4x2x0.5	0.35	0.9	8.8	98
RE-2Y(St)H5P0.5	5x2x0.5	0.35	1.0	9.8	118
RE-2Y(St)H6P0.5	6x2x0.5	0.35	1.0	10.6	138
RE-2Y(St)H8P0.5	8x2x0.5	0.35	1.0	11.3	160
RE-2Y(St)H10P0.5	10x2x0.5	0.35	1.1	12.9	201
RE-2Y(St)H12P0.5	12x2x0.5	0.35	1.1	13.5	236
RE-2Y(St)H16P0.5	16x2x0.5	0.35	1.1	15.2	300
RE-2Y(St)H20P0.5	20x2x0.5	0.35	1.2	16.9	367
RE-2Y(St)H24P0.5	24x2x0.5	0.35	1.2	18.3	419
0.75mm2,Multipair
RE-2Y(St)H2P0.75	2x2x0.75	0.38	0.9	8.5	87
RE-2Y(St)H4P0.75	3x2x0.75	0.38	1.0	10.0	123
RE-2Y(St)H5P0.75	4x2x0.75	0.38	1.0	10.9	150
RE-2Y(St)H6P0.75	5x2x0.75	0.38	1.0	11.8	175
RE-2Y(St)H8P0.75	8x2x0.75	0.38	1.1	12.8	220
RE-2Y(St)H10P0.75	10x2x0.75	0.38	1.1	14.5	267
RE-2Y(St)H12P0.75	12x2x0.75	0.38	1.1	15.1	298
RE-2Y(St)H16P0.75	16x2x0.75	0.38	1.2	17.3	409
RE-2Y(St)H20P0.75	20x2x0.75	0.38	1.3	19.2	480
RE-2Y(St)H24P0.75	24x2x0.75	0.38	1.3	20.8	561
1.0mm2,Multipair
RE-2Y(St)H2P1.0	2x2x1.0	0.4	0.9	9.2	102
RE-2Y(St)H4P1.0	3x2x1.0	0.4	1.0	10.9	156
RE-2Y(St)H5P1.0	4x2x1.0	0.4	1.0	11.9	183
RE-2Y(St)H6P1.0	5x2x1.0	0.4	1.0	13.0	224
RE-2Y(St)H8P1.0	8x2x1.0	0.4	1.1	14.0	273
RE-2Y(St)H10P1.0	10x2x1.0	0.4	1.1	15.9	324
RE-2Y(St)H12P1.0	12x2x1.0	0.4	1.2	16.8	383
RE-2Y(St)H16P1.0	16x2x1.0	0.4	1.2	19.0	513
RE-2Y(St)H20P1.0	20x2x1.0	0.4	1.3	21.1	619
RE-2Y(St)H24P1.0	24x2x1.0	0.4	1.4	23.1	738
1.3mm2,Multipair
RE-2Y(St)H2P1.3	2x2x1.3	0.45	1.0	10.4	122
RE-2Y(St)H4P1.3	3x2x1.3	0.45	1.0	12.0	190
RE-2Y(St)H5P1.3	4x2x1.3	0.45	1.1	13.4	233
RE-2Y(St)H6P1.3	5x2x1.3	0.45	1.1	14.6	273
RE-2Y(St)H8P1.3	8x2x1.3	0.45	1.2	15.7	330
RE-2Y(St)H10P1.3	10x2x1.3	0.45	1.2	17.9	422
RE-2Y(St)H12P1.3	12x2x1.3	0.45	1.3	18.9	487
RE-2Y(St)H16P1.3	16x2x1.3	0.45	1.3	21.4	678
RE-2Y(St)H20P1.3	20x2x1.3	0.45	1.4	23.8	790
RE-2Y(St)H24P1.3	24x2x1.3	0.45	1.5	25.9	921
1.5mm2,Multipair
RE-2Y(St)H2P1.5	2x2x1.5	0.45	1.0	10.8	139
RE-2Y(St)H4P1.5	3x2x1.5	0.45	1.1	12.7	212
RE-2Y(St)H5P1.5	4x2x1.5	0.45	1.1	14.0	259
RE-2Y(St)H6P1.5	5x2x1.5	0.45	1.2	15.2	312
RE-2Y(St)H8P1.5	8x2x1.5	0.45	1.2	16.4	378
RE-2Y(St)H10P1.5	10x2x1.5	0.45	1.3	18.8	473
RE-2Y(St)H12P1.5	12x2x1.5	0.45	1.3	19.7	548
RE-2Y(St)H16P1.5	16x2x1.5	0.45	1.4	22.5	727
RE-2Y(St)H20P1.5	20x2x1.5	0.45	1.5	25.0	903
RE-2Y(St)H24P1.5	24x2x1.5	0.45	1.5	27.1	1051
