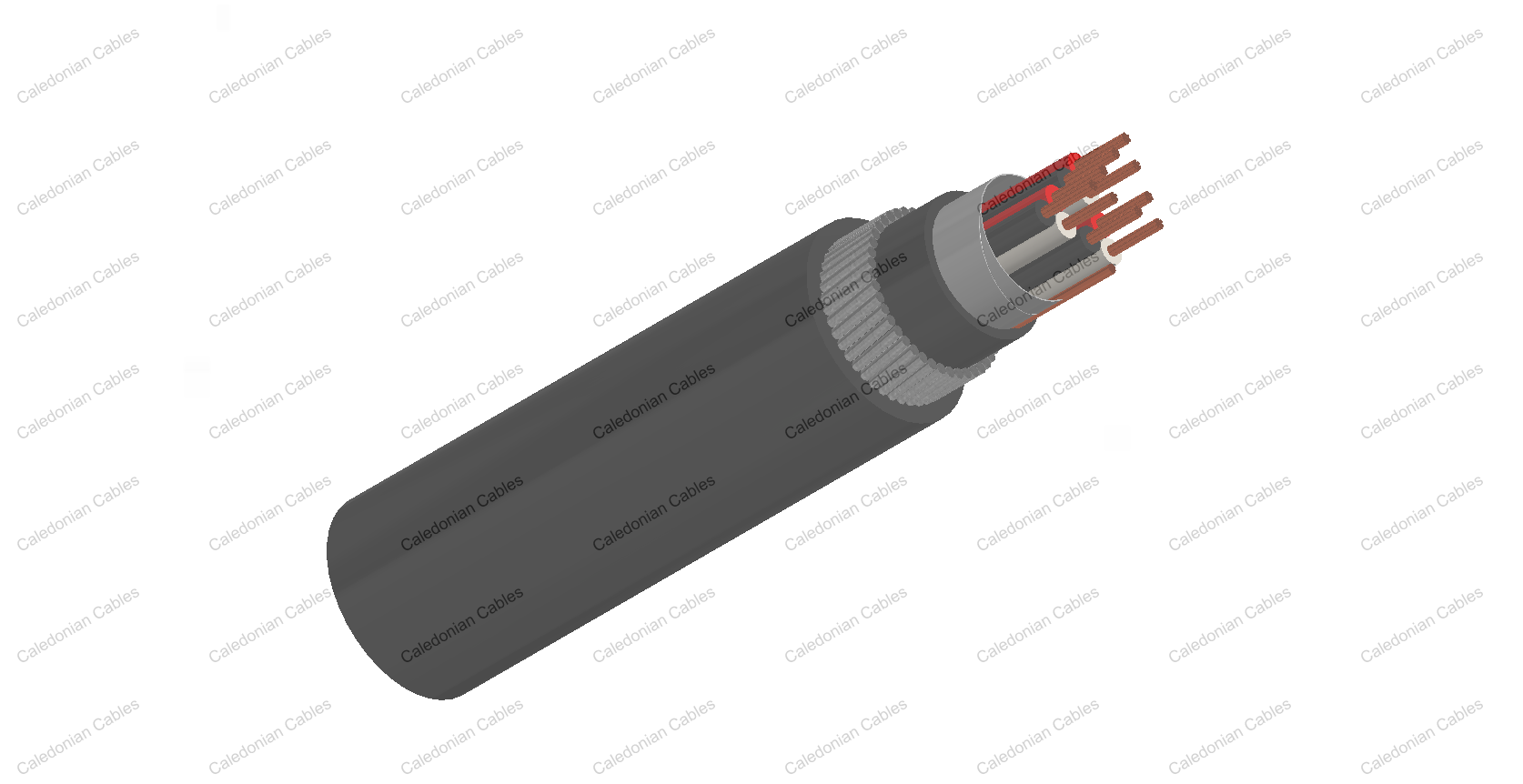

    PE Insulated, LSZH Sheathed, Overall Screened & Armoured Instrumentation Cables (Multi-triple)

    Application

    These cables are used for transmission of analoge and digital signals in instrument and control systems at chemistry and petrochemistry industry plants, power plants, natural gas and petroluem plants, etc. These cables are used in the environments which have no corrosive gases are emitted in the event of fire. In case of fire, these cables inhibit the propagation of the flames whereby the development of smoke is extremely low. Instrumentation cables are not allowed for direct connection to a low impedance sources, e.g. public mains electricity supply. With blue sheath it is suitable for intrinsically safe systems. These cables are not recommended for direct burial. They are for indoorand outdoor installation, in dry and wet l°Cations; on racks, trays, in conduits.

    Standards

    Basic design to EN 50288-7

    Fire Performance

    Flame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
    Reduced Fire Propagation(Vertically-mounted bundled wires & cable test) EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
    Halogen Free IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
    No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
    Minimum Smoke Emission IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
    No Toxic gases NES 02-713; NF C 20-454
    Sunlight Resistance UL 1581 section 1200
    Oil Resistance ICEA S-73-532**

    Note: Asterisk * denotes superseded standard, ** denotes Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation, *** denotes optional.

    Voltage Rating

    300V

    Cable Construction

    • Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
    • Insulation: PE compound, EN 50290. 2-23.
    • Pair:Two conductors twisted to form a pair
    • Lay-up: Pairs laid up in layers of optimum pitch
    • Separator: Polyester tape
    • Overall Screen: Aluminium/polyester tape with tinned copper drain wire, 0.5mm2
    • ?Inner sheath: HFFR compound, EN 50290-2-27
    • Armour: Galvenized round steel wire, EN 10257-1
    • Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound typeSW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option.

    Colour Code

    • Insulation: Black / White / Red, continuously numbered on white core(1, 2..)for multitriples.
    • Outer Sheath:  Black or Blue for intrinsically safe systems

    Physical and Thermal Properties

    • Temperature Range During Operation (Fixed State): -30°C – +70°C
    • Temperature Range During Installation (Mobile State): -5°C – +50°C
    • Minimum Bending Radius: 10X Overall Diameter

    Electrical Roperties

    Conductor Area Size mm2 0.5 0.75 1.0 1.3 1.5
    Insulation thickness (nominal) mm 0.35 0.38 0.4 0.45 0.45
    Conductor resistance (20°C) Ω/km 36.7 25 18.5 14.2 12.3
    Insulation resistance (20°C) MΩ.km(Min.) 5000
    Mutual Capacitance (1 kHz) pF/m(Max.)
      ≤ 4 pairs 90 90 90 102 102
      all other pairs 75 75 75 85 85
    Capacitance unbalance(1 kHz) pF/500 m (Max.) 500
    L / R (ratio) (max.) μH/Ω 25 25 25 40 40
    Inductance mH/km(Max.) 1
    Operating voltage Urms V 300
    Test Voltage Core to Core V 1500
    Core to Screen V 1500

    Construction Parameterst

    Caledonian Cable Code RE-2Y(St)HSWAH
    No. of Triples x3xCross Section Nominal Insulation Thick-ness Nominal Inner Sheath Thick -ness Nominal Overall Diameter Over InnerSheath Nominal Armour Wire Diameter Nominal Outer Sheath Thick-ness Nominal Overall Diameter Approx. Weight
    No.x3xmm2 mm mm mm mm mm mm kg/km
    0.5mm2, Multitriple
    RE-2Y(St)HSWAH 2T0.5 2x3x0.5 0.35 0.9 8.4 0.9 1.4 13.0 326
    RE-2Y(St)HSWAH 4T0.5 4x3x0.5 0.35 1.0 9.8 0.9 1.4 14.4 386
    RE-2Y(St)HSWAH 5T0.5 5x3x0.5 0.35 1.0 10.8 0.9 1.4 15.4 454
    RE-2Y(St)HSWAH 6T0.5 6x3x0.5 0.35 1.0 12.1 0.9 1.4 16.7 513
    RE-2Y(St)HSWAH 8T0.5 8x3x0.5 0.35 1.1 13.1 0.9 1.5 17.9 571
    RE-2Y(St)HSWAH 10T0.5 10x3x0.5 0.35 1.1 14.7 0.9 1.5 19.5 677
    RE-2Y(St)HSWAH 12T0.5 12x3x0.5 0.35 1.1 15.2 0.9 1.5 20.0 845
    RE-2Y(St)HSWAH 16T0.5 16x3x0.5 0.35 1.2 17.4 0.9 1.6 22.4 1031
    RE-2Y(St)HSWAH 20T0.5 20x3x0.5 0.35 1.2 19.1 1.25 1.6 24.8 1179
    RE-2Y(St)HSWAH 24T0.5 24x3x0.5 0.35 1.3 20.9 1.25 1.7 26.8 1330
    0.75mm2, Multitriple
    RE-2Y(St)HSWAH 2T0.75 2x3x0.75 0.38 1.0 10.6 0.9 1.4 13.9 370
    RE-2Y(St)HSWAH 4T0.75 4x3x0.75 0.38 1.1 12.4 0.9 1.4 15.5 462
    RE-2Y(St)HSWAH 5T0.75 5x3x0.75 0.38 1.1 13.7 0.9 1.4 16.6 526
    RE-2Y(St)HSWAH 6T0.75 6x3x0.75 0.38 1.1 15.4 0.9 1.5 18.5 615
    RE-2Y(St)HSWAH 8T0.75 8x3x0.75 0.38 1.2 16.7 0.9 1.5 19.5 698
    RE-2Y(St)HSWAH 10T0.75 10x3x0.75 0.38 1.3 19.0 0.9 1.5 21.5 947
    RE-2Y(St)HSWAH 12T0.75 12x3x0.75 0.38 1.3 19.7 0.9 1.7 22.3 1029
    RE-2Y(St)HSWAH 16T0.75 16x3x0.75 0.38 1.4 22.5 1.25 1.6 25.4 1240
    RE-2Y(St)HSWAH 20T0.75 20x3x0.75 0.38 1.5 24.9 1.25 1.7 27.6 1446
    RE-2Y(St)HSWAH 24T0.75 24x3x0.75 0.38 1.6 27.2 1.25 1.7 29.6 1632
    1.0mm2, Multitriple
    RE-2Y(St)HSWAH 2T1..0 2x3x1 0.4 1.0 11.5 0.9 1.4 15.0 412
    RE-2Y(St)HSWAH 4T1..0 4x3x1 0.4 1.1 13.4 0.9 1.4 16.5 529
    RE-2Y(St)HSWAH 5T1..0 5x3x1 0.4 1.1 14.8 0.9 1.5 18.0 620
    RE-2Y(St)HSWAH 6T1..0 6x3x1 0.4 1.2 16.9 0.9 1.5 19.8 830
    RE-2Y(St)HSWAH 8T1..0 8x3x1 0.4 1.2 18.1 0.9 1.5 20.9 946
    RE-2Y(St)HSWAH 10T1..0 10x3x1 0.4 1.3 20.7 0.9 1.6 24.1 1105
    RE-2Y(St)HSWAH 12T1..0 12x3x1 0.4 1.3 21.4 1.25 1.6 24.7 1215
    RE-2Y(St)HSWAH 16T1..0 16x3x1 0.4 1.4 24.4 1.25 1.7 27.6 1482
    RE-2Y(St)HSWAH 20T1..0 20x3x1 0.4 1.5 27.1 1.25 1.7 30.0 1740
    RE-2Y(St)HSWAH 24T1..0 24x3x1 0.4 1.6 29.6 1.25 1.8 32.2 2202
    1.3mm2, Multitriple
    RE-2Y(St)HSWAH 2T1.3 2x3x1,3 0.45 1.1 12.8 0.9 1.4 16.1 463
    RE-2Y(St)HSWAH 4T1.3 4x3x1,3 0.45 1.1 14.7 0.9 1.5 18.2 621
    RE-2Y(St)HSWAH 5T1.3 5x3x1,3 0.45 1.2 16.5 0.9 1.5 19.6 721
    RE-2Y(St)HSWAH 6T1.3 6x3x1,3 0.45 1.3 18.8 0.9 1.5 21.7 979
    RE-2Y(St)HSWAH 8T1.3 8x3x1,3 0.45 1.3 20.1 0.9 1.6 23.8 1105
    RE-2Y(St)HSWAH 10T1.3 10x3x1,3 0.45 1.4 23.0 1.25 1.7 26.6 1322
    RE-2Y(St)HSWAH 12T1.3 12x3x1,3 0.45 1.5 24.0 1.25 1.7 27.3 1456
    RE-2Y(St)HSWAH 16T1.3 16x3x1,3 0.45 1.6 27.4 1.25 1.8 30.5 1788
    RE-2Y(St)HSWAH 20T1.3 20x3x1,3 0.45 1.7 30.4 1.25 1.8 33.2 2327
    RE-2Y(St)HSWAH 24T1.3 24x3x1,3 0.45 1.8 33.1 1.60 1.9 36.6 2637
    1.5mm2, Multitriple
    RE-2Y(St)HSWAH 2T1.5 2x3x1,5 0.45 1.1 13.2 0.9 1.4 16.5 518
    RE-2Y(St)HSWAH 4T1.5 4x3x1,5 0.45 1.2 15.4 0.9 1.5 18.8 674
    RE-2Y(St)HSWAH 5T1.5 5x3x1,5 0.45 1.2 17.1 0.9 1.5 20.2 869
    RE-2Y(St)HSWAH 6T1.5 6x3x1,5 0.45 1.3 19.5 0.9 1.6 22.6 1049
    RE-2Y(St)HSWAH 8T1.5 8x3x1,5 0.45 1.4 21.1 1.25 1.6 24.8 1210
    RE-2Y(St)HSWAH 10T1.5 10x3x1,5 0.45 1.5 24.1 1.25 1.7 27.5 1435
    RE-2Y(St)HSWAH 12T1.5 12x3x1,5 0.45 1.5 24.9 1.25 1.7 28.4 1569
    RE-2Y(St)HSWAH 16T1.5 16x3x1,5 0.45 1.6 28.4 1.25 1.8 31.8 2162
    RE-2Y(St)HSWAH 20T1.5 20x3x1,5 0.45 1.7 31.6 1.25 1.9 34.9 2515
    RE-2Y(St)HSWAH 24T1.5 24x3x1,5 0.45 1.8 34.4 1.60 2.0 38.3 2879
