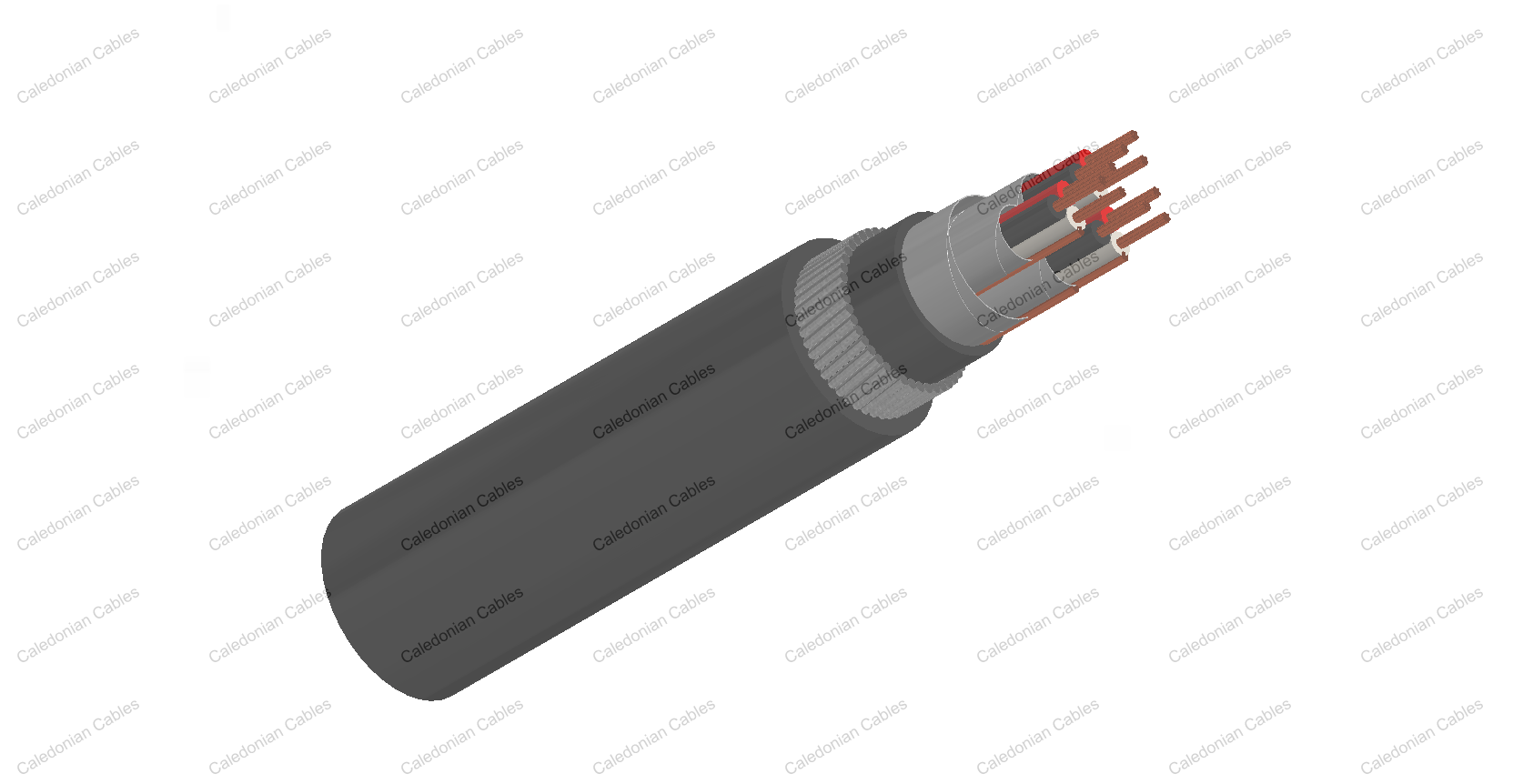

PE Insulated, LSZH Sheathed, Individual and Overall Screened & Armoured Instrumentation Cables (Multi-triple)

Application

These cables are used for transmission of analoge and digital signals in instrument and control systems at chemistry and petrochemistry industry plants, power plants, natural gas and petroluem plants, etc. These cables are used in the environments which have no corrosive gases are emitted in the event of fire. In case of fire, these cables inhibit the propagation of the flames whereby the development of smoke is extremely low. Instrumentation cables are not allowed for direct connection to a low impedance sources, e.g. public mains electricity supply. With blue sheath it is suitable for intrinsically safe systems. These cables are not recommended for direct burial. They are for indoor and outdoor installation, in dry and wet l°Cations; on racks, trays, in conduits.

Standards

Basic design to EN 50288-7

Fire Performance

Flame Retardance (Single Vertical Wire Test)	EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1; DIN VDE 0482-265-2-1
Reduced Fire Propagation(Vertically-mounted bundled wires & cable test)	EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free	IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission	IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission	IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2; BS 7622-1&2
No Toxic gases	NES 02-713; NF C 20-454
Sunlight Resistance	UL 1581 section 1200
Oil Resistance	ICEA S-73-532**

Note: Asterisk * denotes superseded standard, ** denotes Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation, *** denotes optional.

Voltage Rating

300V

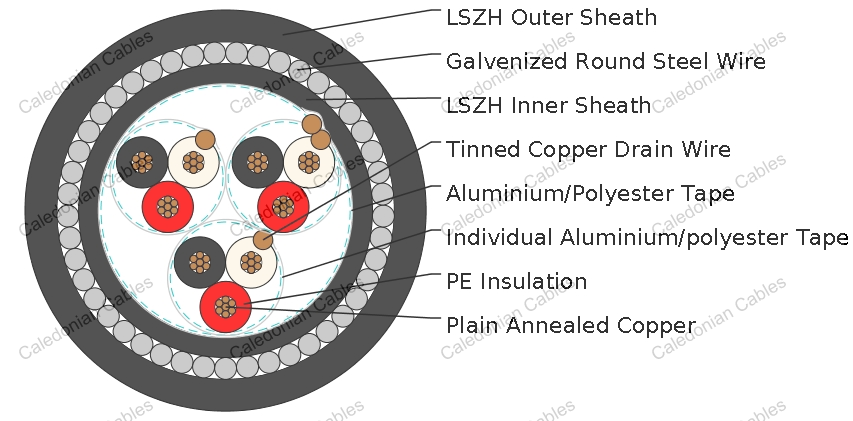

Cable Construction

Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
Insulation: PE compound, EN 50290. 2-23.
Individual Screen: Aluminium/polyester tape is applied over each pair metallic side down in contact with tinned copper drain wire, 0.5mm2
Pair:Two conductors twisted to form a pair
Lay-up: Pairs laid up in layers of optimum pitch Separator: Polyester tape
Overall Screen: Aluminium/polyester tape with tinned copper drain wire, 0.5mm2
Inner sheath: HFFR compound, EN 50290-2-27
Armour: Galvenized round steel wire, EN 10257-1
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent andanti termite properties can be offered as option.

Colour Code

Insulation: Black / White / Red, continuously numbered on white core(1, 2..)for multitriples.
Outer Sheath: Black or Blue for intrinsically safe systems

Physical and Thermal Properties

Temperature Range During Operation (Fixed State): -30°C – +70°C
Temperature Range During Installation (Mobile State): -5°C – +50°C
Minimum Bending Radius: 10X Overall Diameter

Electrical Roperties

Conductor Area Size		mm2	0.5	0.75	1.0	1.3	1.5
Insulation thickness (nominal)		mm	0.4	0.4	0.4	0.45	0.45
Conductor resistance (20°C)		Ω/km	36.7	25	18.5	14.2	12.3
Insulation resistance (20°C)		MΩ.km(Min.)	5000
Mutual Capacitance (1 kHz)		pF/m(Max.)	115
Inductance		mH/km(Max.)	1
Capacitance unbalance(1 kHz)		pF/500 m (Max.)	500
L / R (ratio) (max.)		μH/Ω	25	25	25	40	40
Operating voltage Urms		V	300
Test Voltage	Core to Core	V	1500
	Core to Screen	V	1500

Construction Parameterst

Caledonian Cable Code?	RE-2Y(St)HSWAH-TiMF
	No. of Triples x3xCross Section	Nominal Insulation Thick -ness	Nominal Inner Sheath Thick -ness	Nominal Overall Diameter Over InnerSheath	Nominal Armour Wire Diameter	Nominal Outer Sheath Thick -ness	Nominal Overall Diameter	Approx. Weight
	No.x3xmm2	mm	mm	mm	mm	mm	mm	kg/km
0.5mm2, Multitriple
RE-2Y(St)HSWAH-TiMF 2T0.5	2x3x0.5	0.35	1.0	9.7	0.9	1.4	14.3	363
RE-2Y(St)HSWAH-TiMF 4T0.5	4x3x0.5	0.35	1.0	11.1	0.9	1.4	15.7	456
RE-2Y(St)HSWAH-TiMF 5T0.5	5x3x0.5	0.35	1.1	12.4	0.9	1.5	17.2	517
RE-2Y(St)HSWAH-TiMF 6T0.5	6x3x0.5	0.35	1.1	14.0	0.9	1.5	18.8	612
RE-2Y(St)HSWAH-TiMF 8T0.5	8x3x0.5	0.35	1.1	14.9	0.9	1.5	19.7	800
RE-2Y(St)HSWAH-TiMF 10T0.5	10x3x0.5	0.35	1.2	17.0	1.25	1.6	22.7	951
RE-2Y(St)HSWAH-TiMF 12T0.5	12x3x0.5	0.35	1.2	17.6	1.25	1.6	23.3	978
RE-2Y(St)HSWAH-TiMF 16T0.5	16x3x0.5	0.35	1.3	20.1	1.25	1.7	26.0	1201
RE-2Y(St)HSWAH-TiMF 20T0.5	20x3x0.5	0.35	1.4	22.3	1.25	1.7	28.2	1394
RE-2Y(St)HSWAH-TiMF 24T0.5	24x3x0.5	0.35	1.5	24.4	1.25	1.8	30.5	1607
0.75mm2, Multitriple
RE-2Y(St)HSWAH-TiMF 2T0.75	2x3x0.75	0.38	1.0	10.6	0.9	1.4	15.2	418
RE-2Y(St)HSWAH-TiMF 4T0.75	4x3x0.75	0.38	1.1	12.4	0.9	1.5	17.2	521
RE-2Y(St)HSWAH-TiMF 5T0.75	5x3x0.75	0.38	1.1	13.7	0.9	1.5	18.5	608
RE-2Y(St)HSWAH-TiMF 6T0.75	6x3x0.75	0.38	1.1	15.4	0.9	1.5	20.2	820
RE-2Y(St)HSWAH-TiMF 8T0.75	8x3x0.75	0.38	1.2	16.7	0.9	1.6	21.7	942
RE-2Y(St)HSWAH-TiMF 10T0.75	10x3x0.75	0.38	1.3	19.0	1.25	1.6	24.7	1104
RE-2Y(St)HSWAH-TiMF 12T0.75	12x3x0.75	0.38	1.3	19.7	1.25	1.7	25.6	1178
RE-2Y(St)HSWAH-TiMF 16T0.75	16x3x0.75	0.38	1.4	22.5	1.25	1.7	28.4	1441
RE-2Y(St)HSWAH-TiMF 20T0.75	20x3x0.75	0.38	1.5	24.9	1.25	1.8	31.0	1888
RE-2Y(St)HSWAH-TiMF 24T0.75	24x3x0.75	0.38	1.6	27.2	1.25	1.9	33.5	2168
1.0mm2, Multitriple
RE-2Y(St)HSWAH-TiMF 2T1.0	2x3x1	0.4	1.0	11.5	0.9	1.4	16.1	472
RE-2Y(St)HSWAH-TiMF 4T1.0	4x3x1	0.4	1.1	13.4	0.9	1.5	18.2	597
RE-2Y(St)HSWAH-TiMF 5T1.0	5x3x1	0.4	1.1	14.8	0.9	1.5	19.6	689
RE-2Y(St)HSWAH-TiMF 6T1.0	6x3x1	0.4	1.2	16.9	0.9	1.5	21.7	940
RE-2Y(St)HSWAH-TiMF 8T1.0	8x3x1	0.4	1.2	18.1	1.25	1.6	23.8	1035
RE-2Y(St)HSWAH-TiMF 10T1.0	10x3x1	0.4	1.3	20.7	1.25	1.7	26.6	1279
RE-2Y(St)HSWAH-TiMF 12T1.0	12x3x1	0.4	1.3	21.4	1.25	1.7	27.3	1383
RE-2Y(St)HSWAH-TiMF 16T1.0	16x3x1	0.4	1.4	24.4	1.25	1.7	30.3	1689
RE-2Y(St)HSWAH-TiMF 20T1.0	20x3x1	0.4	1.5	27.1	1.25	1.8	33.2	2204
RE-2Y(St)HSWAH-TiMF 24T1.0	24x3x1	0.4	1.6	29.6	1.6	1.9	36.6	2509
1.3mm2, Multitriple
RE-2Y(St)HSWAH-TiMF 2T1.3	2x3x1,3	0.45	1.1	12.8	0.9	1.5	17.6	532
RE-2Y(St)HSWAH-TiMF 4T1.3	4x3x1,3	0.45	1.1	14.7	0.9	1.5	19.5	685
RE-2Y(St)HSWAH-TiMF 5T1.3	5x3x1,3	0.45	1.2	16.5	0.9	1.6	21.5	925
RE-2Y(St)HSWAH-TiMF 6T1.3	6x3x1,3	0.45	1.3	18.8	1.25	1.6	24.5	1090
RE-2Y(St)HSWAH-TiMF 8T1.3	8x3x1,3	0.45	1.3	20.1	1.25	1.7	26.0	1250
RE-2Y(St)HSWAH-TiMF 10T1.3	10x3x1,3	0.45	1.4	23.0	1.25	1.8	29.1	1484
RE-2Y(St)HSWAH-TiMF 12T1.3	12x3x1,3	0.45	1.5	24.0	1.25	1.8	30.1	1595
RE-2Y(St)HSWAH-TiMF 16T1.3	16x3x1,3	0.45	1.6	27.4	1.25	1.9	33.7	2225
RE-2Y(St)HSWAH-TiMF 20T1.3	20x3x1,3	0.45	1.7	30.4	1.6	2.0	37.6	2596
RE-2Y(St)HSWAH-TiMF 24T1.3	24x3x1,3	0.45	1.8	33.1	1.6	2.0	40.3	2962
?
RE-2Y(St)HSWAH-TiMF 2T1.5	2x3x1,5	0.45	1.1	13.2	0.9	1.5	18.0	561
RE-2Y(St)HSWAH-TiMF 4T1.5	4x3x1,5	0.45	1.2	15.4	0.9	1.5	20.2	818
RE-2Y(St)HSWAH-TiMF 5T1.5	5x3x1,5	0.45	1.2	17.1	1.25	1.6	22.8	999
RE-2Y(St)HSWAH-TiMF 6T1.5	6x3x1,5	0.45	1.3	19.5	1.25	1.6	25.2	1164
RE-2Y(St)HSWAH-TiMF 8T1.5	8x3x1,5	0.45	1.4	21.1	1.25	1.7	27.0	1354
RE-2Y(St)HSWAH-TiMF 10T1.5	10x3x1,5	0.45	1.5	24.1	1.25	1.8	30.2	1596
RE-2Y(St)HSWAH-TiMF 12T1.5	12x3x1,5	0.45	1.5	24.9	1.25	1.8	31.0	1953
RE-2Y(St)HSWAH-TiMF 16T1.5	16x3x1,5	0.45	1.6	28.4	1.6	1.9	35.4	2388
RE-2Y(St)HSWAH-TiMF 20T1.5	20x3x1,5	0.45	1.7	31.6	1.6	2.0	38.8	2800
RE-2Y(St)HSWAH-TiMF 24T1.5	24x3x1,5	0.45	1.8	34.4	1.6	2.1	41.8	3100
