PE Insulated, LSZH Sheathed, Individual and Overall Screened Instrumentation Cables (Multipair)

Application

The unarmoured LSZH sheathed cables are generally use for indoor installation and suitable for wet and damp areas. Generally, the cables are used within industrial process manufacturing plants for communication, data andvoice transmission signals and services. Also used for theinterconnection of electrical equipment andinstruments, the LSZH sheath can reduce toxic smoke and fume emission.

Standards

Basic design to EN 50288-7

Fire Performance

Flame Retardance (Single Vertical Wire Test)	EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1; DIN VDE 0482-265-2-1
Reduced Fire Propagation(Vertically-mounted bundled wires & cable test)	EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free	IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission	IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission	IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2; BS 7622-1&2
No Toxic gases	NES 02-713; NF C 20-454
Sunlight Resistance	UL 1581 section 1200
Oil Resistance	ICEA S-73-532**

Note: Asterisk * denotes superseded standard, ** denotes Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation, *** denotes optional.

Voltage Rating

300/500V

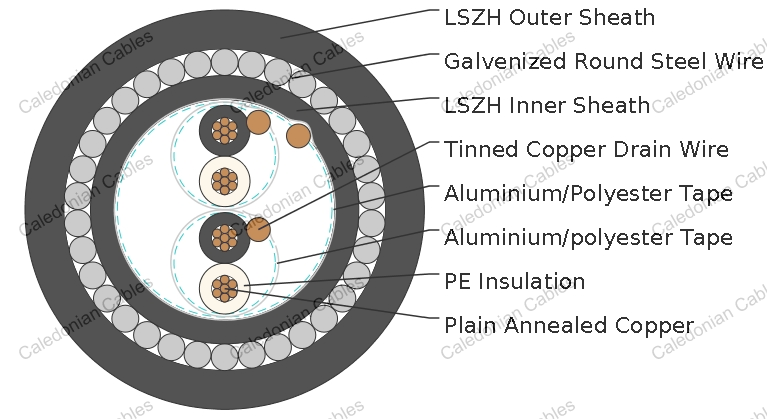

Cable Construction

Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
Insulation: PE compound, EN 50290. 2-23.
Pairs: Two insulated conductors uniformly twisted together with a lay not exceeding 100mm
Individual Screen: Aluminium/polyester tape is applied over each pair metallic side down in contact with tinned copper drain wire, 0.5mm2
Binder tape: PETP transparent tape
Overall Screen: Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm2
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance,oil resistance, anti rodent and anti termite properties can be offered as option.

Colour Code

Insulation: Black / White, continuously numbered on white core(1, 2..)for multipair.
Outer Sheath: Black or Blue for intrinsically safe systems

Physical and Thermal Properties

Temperature Range During Operation (Fixed State): -30°C – +90°C
Temperature Range During Installation (Mobile State): -20°C – +50°C
Minimum Bending Radius:7.5 X Overall Diameter

Electrical Roperties

Conductor Area Size		mm2	0.5	0.75	1.0	1.3	1.5
Insulation thickness (nominal)		mm	0.4	0.4	0.4	0.45	0.45
Conductor resistance (20°C)		Ω/km	36.7	25	18.5	14.2	12.3
Insulation resistance (20°C)		MΩ.km(Min.)	5000
Mutual Capacitance (1 kHz)		pF/m(Max.)	115
Inductance		mH/km (Max.)	1
L / R (ratio) (max.)		μH/Ω	25	25	25	40	40
Operating voltage Urms		V	300
Test Voltage	Core to Core	V	1500
	Core to Screen	V	1500

Construction Parameterst

Caledonian Cable Code	RE-2Y(St)H PiMF
	No. of Pairsx2 xCross Section	Nominal Insulation Thickness	Nominal Outer Sheath Thickness	Nominal Overall Diameter	Approx. Weight
	No.x2xmm2	mm	mm	mm	kg/km
0.5mm2, Multipair
RE-2Y(St)H PiMF 2P0.5	2x2x0.5	0.35	0.9	8.7	84
RE-2Y(St)H PiMF 4P0.5	4x2x0.5	0.35	1.0	10.2	120
RE-2Y(St)H PiMF 5P0.5	5x2x0.5	0.35	1.0	11.2	145
RE-2Y(St)H PiMF 6P0.5	6x2x0.5	0.35	1.0	12.1	171
RE-2Y(St)H PiMF 8P0.5	8x2x0.5	0.35	1.1	13.1	212
RE-2Y(St)H PiMF 10P0.5	10x2x0.5	0.35	1.2	15.1	266
RE-2Y(St)H PiMF 12P0.5	12x2x0.5	0.35	1.2	15.7	287
RE-2Y(St)H PiMF 16P0.5	16x2x0.5	0.35	1.2	17.8	387
RE-2Y(St)H PiMF 20P0.5	20x2x0.5	0.35	1.3	19.7	463
RE-2Y(St)H PiMF 24P0.5	24x2x0.5	0.35	1.4	21.5	554
0.75mm2, Multipair
RE-2Y(St)H PiMF 2P0.75	2x2x0.75	0.38	1.0	9.7	101
RE-2Y(St)H PiMF 4P0.75	3x2x0.75	0.38	1.0	11.2	152
RE-2Y(St)H PiMF 5P0.75	4x2x0.75	0.38	1.1	12.5	177
RE-2Y(St)H PiMF 6P0.75	5x2x0.75	0.38	1.1	13.6	224
RE-2Y(St)H PiMF 8P0.75	8x2x0.75	0.38	1.1	14.4	269
RE-2Y(St)H PiMF 10P0.75	10x2x0.75	0.38	1.2	16.6	335
RE-2Y(St)H PiMF 12P0.75	12x2x0.75	0.38	1.2	17.4	376
RE-2Y(St)H PiMF 16P0.75	16x2x0.75	0.38	1.3	19.8	485
RE-2Y(St)H PiMF 20P0.75	20x2x0.75	0.38	1.4	22.0	589
RE-2Y(St)H PiMF 24P0.75	24x2x0.75	0.38	1.5	24.0	713
1.0mm2, Multipair
RE-2Y(St)H PiMF 2P1.0	2x2x1.0	0.4	1.0	10.4	117
RE-2Y(St)H PiMF 4P1.0	3x2x1.0	0.4	1.0	12.1	174
RE-2Y(St)H PiMF 5P1.0	4x2x1.0	0.4	1.1	13.5	220
RE-2Y(St)H PiMF 6P1.0	5x2x1.0	0.4	1.1	14.7	257
RE-2Y(St)H PiMF 8P1.0	8x2x1.0	0.4	1.2	15.8	324
RE-2Y(St)H PiMF 10P1.0	10x2x1.0	0.4	1.2	18.0	403
RE-2Y(St)H PiMF 12P1.0	12x2x1.0	0.4	1.3	19.0	456
RE-2Y(St)H PiMF 16P1.0	16x2x1.0	0.4	1.3	21.5	603
RE-2Y(St)H PiMF 20P1.0	20x2x1.0	0.4	1.4	23.9	721
RE-2Y(St)H PiMF 24P1.0	24x2x1.0	0.4	1.5	26.1	866
1.3mm2, Multipair
RE-2Y(St)H PiMF 2P1.3	2x2x1.3	0.45	1.0	11.4	143
RE-2Y(St)H PiMF 4P1.3	3x2x1.3	0.45	1.1	13.4	208
RE-2Y(St)H PiMF 5P1.3	4x2x1.3	0.45	1.1	14.8	271
RE-2Y(St)H PiMF 6P1.3	5x2x1.3	0.45	1.2	16.3	319
RE-2Y(St)H PiMF 8P1.3	8x2x1.3	0.45	1.3	17.6	407
RE-2Y(St)H PiMF 10P1.3	10x2x1.3	0.45	1.3	20.0	502
RE-2Y(St)H PiMF 12P1.3	12x2x1.3	0.45	1.4	21.1	554
RE-2Y(St)H PiMF 16P1.3	16x2x1.3	0.45	1.5	24.1	730
RE-2Y(St)H PiMF 20P1.3	20x2x1.3	0.45	1.6	26.8	912
RE-2Y(St)H PiMF 24P1.3	24x2x1.3	0.45	1.7	29.2	1090
1.5mm2, Multipair
RE-2Y(St)H PiMF 2P1.5	2x2x1.5	0.45	1.0	11.8	158
RE-2Y(St)H PiMF 4P1.5	3x2x1.5	0.45	1.1	13.9	243
RE-2Y(St)H PiMF 5P1.5	4x2x1.5	0.45	1.2	15.5	290
RE-2Y(St)H PiMF 6P1.5	5x2x1.5	0.45	1.2	16.9	358
RE-2Y(St)H PiMF 8P1.5	8x2x1.5	0.45	1.3	18.2	447
RE-2Y(St)H PiMF 10P1.5	10x2x1.5	0.45	1.4	21.0	550
RE-2Y(St)H PiMF 12P1.5	12x2x1.5	0.45	1.4	21.9	625
RE-2Y(St)H PiMF 16P1.5	16x2x1.5	0.45	1.5	25.1	831
RE-2Y(St)H PiMF 20P1.5	20x2x1.5	0.45	1.6	27.8	1007
RE-2Y(St)H PiMF 24P1.5	24x2x1.5	0.45	1.7	30.4	1223
