    BS5308 Cable Part 1 Type 2 MG-XLPE-IS-OS-SWA-LSOH

    Applications

    60331 mica armoured fire resistant lszh versions (Part 1Type 2) are typically used in chemical and process industries where there is danger of fire. The galvanised steel wire armour provides excellent protection.

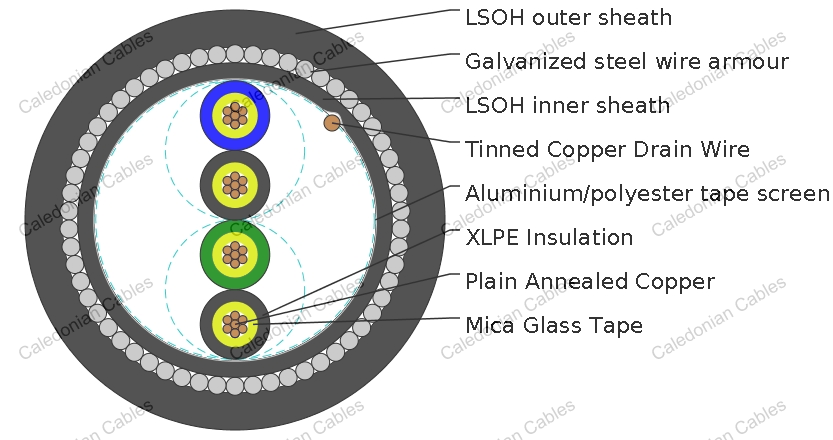

    Construction

    Conductor Annealed or tinned copper, Class 2
    Insulation Mica glass tape, XLPE (Cross Linked Polyethylene),or PE (optional)
    Pairing Two insulated conductors uniformly twisted together with a lay not exceeding 100mm
    Colour code See technical information
    Binder tape PETP transparent tape
    Collective screen Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm^2
    Inner Sheath LSOH(Low Smoke Zero Halogen) sheath
    Amour Galvanized steel wire armour
    Outer sheath LSOH(Low Smoke Zero Halogen) sheath Flame retardant to IEC60332-3-22 Fire resistant to IEC60331 Halogen free to IEC60754-1 Low smoke emission to IEC61034-1-2
    Sheath colour Black or blue

    Mechanical and Electrical Properties

    Operating temperature -20C up to + 90C( fixed installation)
      0C to +50C(during operation )
    Minimum bending radius 6 x overall diameter



    Conductor Area Size mm^2 0.5 0.75 1.0 1.5
    Conductor Stranding No. x mm 7 x 0.3 7 x 0.37 7 x 0.44 7 x 0.53
    Conductor resistance max ohm/km 36 24.5 18.1 12.1
    Insulation resistance min Gohm/km 5 5 5 5
    Capacitance unbalance at 1 kHz(pair to pair screen) pF/250m 250
    Max. Mutual Capacitance @ 1 kHz forNon OS or OS cables (except one-pair and two-pairs) pF/m 115 115 115 115
    Max. Mutual Capacitance @ 1 kHz IS/OS cables (include 1 pair and 2 pair) pF/m 75 75 75 75
    Max. L/R Ratio for adjacent cores(Inductance/ Resistance) μH/ohm 25 25 25 40
    Test voltage Core to core V 1000 1000 1000 1000
      Core to screen V 1000 1000 1000 1000
    Rated voltage max V 300/500 300/500 300/500 300/500

    Parameter

    No.of Pairs No.and Dia. of Wires Nominal Conductor Cross-Sectional Area Nominal Thickness of Insulation Nominal Thickness of bedding Nominal Dia. over Bedding Nominal Thickness of Armour Nominal Thickness of Sheath Nominal Dia. of Cable Approx. Weight
    no./mm mm^2 mm mm mm mm mm mm kg/km
    5 7/0.37 0.75 0.6 0.8 15.0 0.9 1.4 20.3 870
    10 7/0.37 0.75 0.6 0.8 19.8 0.9 1.4 25.9 1480
    15 7/0.44 1 0.6 0.8 14.8 0.9 1.4 20.0 890
