    RZ1-K(AS) 0.6/1kV

    Application and Description

    These cables with zero Halogen are high security cables. In case of fire, they do not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use is recommended in public places such as: hospitals, schools, museums, airports, bus terminals, shops in general, tunnels, the underground, etc., as well as in calculation centres, offices, production plants, laboratories, etc.

    Standard and Approval

    UNE 21123

    EN 60332

    EN 60332-1

    EN 50266

    EN 50267-1

    EN 50267-2

    EN 61034

    IEC 60332-1

    IEC 60332-3

    IEC 60754-1

    IEC 60754-2

    IEC 61034

    IEC 60331

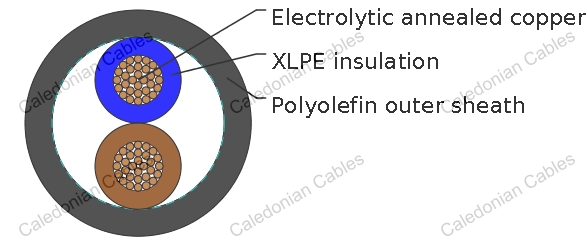

    Cable Construction

    Flexible electrolytic annealed copper conductor

    Class 5 in accordance with IEC 60228

    XLPE insulation type DIX 3 according to HD603.

    Color coded to HD 308

    LOSH polyolephine outer sheath according to UNE 21123

    Technical Characteristics

    Working voltage 600/1000 volts
    Test voltage 2000 volts
    Minimum bending radius 10 x Ø
    Working temperature -15°C to +90°C
    Short circuit temperature +250°C
    Insulation resistance 20 MΩ x km
    Halogen free IEC 60754-1, EN 50267-2-1
    No corrosive gases IEC 60754-2, EN 50267-2-2
    No toxic gases NES 02-713, NF X 70-100
    Low smoke density IEC 61034, EN 50268-2
    Flame retardant IEC 60332-1, EN 50265-2-1
    Non-flame propagating IEC 60332-3, EN 50266-2

    Cable Parameter

    AWG No. of Cores × Nominal Cross Sectional Area Nominal Overall Diameter Nominal Weight
    # × mm² mm kg/km
    16(30/30) 1×1.5 5.7 45
    14(50/30) 1×2.5 6.1 57
    12(56/28) 1×4 6.7 73
    10(84/28) 1×6 7.2 94
    8(80/26) 1×10 8.1 136
    6(128/26) 1×16 9.0 192
    4(200/26) 1×25 11.0 286
    2 (280/26) 1×35 12.1 380
    1(400/26) 1×50 13.8 520
    2/0 (356/24) 1×70 15.9 716
    3/0 (485/24) 1×95 17.6 924
    4/0(614/24) 1×120 19.4 1167
    300 MCM (765/24) 1×150 21.5 1456
    350 MCM (944/24) 1×185 24.1 1762
    500MCM (1225/24) 1×240 26.9 2283
    - 1×300 29.6 2832
    - 1×400 33.8 3735
    - 1×500 38.0 4845
    - 1×630 43.1 6311
    16(30/30) 2×1.5 8.3 97
    14(50/30) 2×2.5 9.2 127
    12(56/28) 2×4 10.1 167
    10(84/28) 2×6 11.2 219
    8(80/26) 2×10 13.0 323
    6(128/26) 2×16 15.8 490
    16(30/30) 3G1.5 8.8 114
    14(50/30) 3G2.5 9.8 151
    12(56/28) 3G4 11 206
    10(84/28) 3G6 12 271
    8(80/26) 3G10 14.1 412
    6(128/26) 3×16 16.9 624
    4(200/26) 3×25 20.6 947
    2 (280/26) 3×35 23.4 1276
    1(400/26) 3×50 26.8 1752
    2/0(356/24) 3×70 31.5 2436
    8(80/26) 3×10/6 16.1 493
    6(128/26) 3×16/10 18.0 724
    4(200/26) 3×25/16 21.8 1091
    2 (280/26) 3×35/16 24.1 1405
    1(400/26) 3×50/25 28.1 1968
    2/0(356/24) 3×70/35 32.6 2722
    3/0(485/24) 3×95/50 37.0 3598
    4/0(614/24) 3×120/70 41.5 4609
    300 MCM (765/24) 3×150/70 44.9 5579
    350 MCM (944/24) 3×185/95 51.5 6926
    500MCM (1225/24) 3×240/120 58.8 9030
    16(30/30) 4G 1.5 9.7 136
    14(50/30) 4G 2.5 10.6 182
    12(56/28) 4G 4 12.0 252
    10(84/28) 4G 6 13.3 336
    8(80/26) 4G 10 15.4 513
    6(128/26) 4×16 18.7 783
    4(200/26) 4×25 23.1 1196
    2 (280/26) 4×35 25.5 1616
    1(400/26) 4×50 30.3 2242
    2/0(356/24) 4×70 35.3 3119
    3/0(485/24) 4×95 39.4 4037
    4/0(614/24) 4×120 43.6 5104
    300 MCM (765/24) 4×150 49.8 6569
    350 MCM (944/24) 4×185 56.5 8063
    500MCM (1225/24) 4×240 63.1 10421
    16(30/30) 5G 1.5 10.3 159
    14(50/30) 5G 2.5 11.6 217
    12(56/28) 5G 4 13.0 302
    10(84/28) 5G 6 14.6 406
    8(80/26) 5G 10 16.8 625
    6(128/26) 5G 16 20.4 956
    4(200/26) 5G 25 25.1 1459
    2 (280/26) 5G 35 28.1 1968
    1(400/26) 5G 50 33.7 2779
