    RC4Z1-K(AS) 0.6/1kV

    Application and Description

    The screened and halogen free cable is a high security cable. In case of fire, it does not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use is recommended for public places and for all installations where it is necessary avoid electric interference of nearby circuits.

    Standard and Approval

    UNE 21123-4

    IEC 60502

    EN 60332-1

    EN 50266

    EN 50267-1

    EN 50267-2

    EN 61034

    IEC 60332-1

    IEC 60332-3

    IEC 60754-1

    IEC 60754-2

    IEC 61034

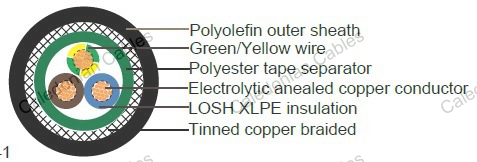

    Cable Construction

    Rigid electrolytic annealed copper conductor

    Class 5 in accordance with IEC 60228.

    XLPE insulation, low smoke and halogen free, type DIX 3 according to HD 603

    Color coded to HD 308

    Polyester tape separator

    High coverage tinned copper braided screen

    Polyolefin outer sheath according to UNE 21123

    Technical Characteristics

    Working voltage 600/1000 volts
    Test voltage 2000 volts
    Minimum bending radius 10 x Ø
    Working temperature -15°C to +90°C
    Short circuit temperature +250°C
    Flame retardant IEC 60332.1
    Insulation resistance 20 MΩ x km
    Halogen free IEC 60754-1, EN 50267-2-1
    No corrosive gases IEC 60754-2, EN 50267-2-2
    No toxic gases NES 02-713, NF X 70-100
    Low smoke density IEC 61034, EN 50268-2
    Flame retardant IEC 60332-1, EN 50265-2-1
    Non-flame propagating IEC 60332-3, EN 50266-2

    Cable Parameter

    AWG No. of Cores × Nominal Cross Sectional Area Nominal Overall Diameter Nominal Weight
    # × mm² mm kg/km
    8(80/26) 1×10 11.9 231
    6(128/26) 1×16 13.1 300
    4(200/26) 1×25 14.2 389
    2(280/26) 1×35 15.3 489
    1(400/26) 1×50 16.8 637
    2/0(356/24) 1×70 18.7 835
    3/0(485/24) 1×95 21.1 1098
    4/0(614/24) 1×120 22.6 1331
    300 MCM (765/24) 1×150 24.7 1628
    350 MCM (944/24) 1×185 26.9 1975
    500MCM (1225/24) 1×240 30.0 2514
    - 1×300 33.2 3114
    16(30/30) 2×1.5 9.0 96
    14(50/30) 2×2.5 9.9 122
    12(56/28) 2×4 10.7 156
    10(84/28) 2×6 11.8 202
    8(80/26) 2×10 13.8 296
    6(128/26) 2×16 16.3 436
    4(200/26) 2×25 19.5 646
    2 (280/26) 2×35 22.5 880
    16(30/30) 3G1.5 9.6 117
    14(50/30) 3G2.5 11.2 172
    12(56/28) 3G4 12.0 216
    10(84/28) 3G6 13.4 286
    8(80/26) 3G10 15.7 422
    6(128/26) 3×16 17.6 594
    4(200/26) 3×25 21.2 872
    2(280/26) 3×35 24.4 1195
    1(400/26) 3×50 28.6 1669
    2/0(356/24) 3×70 33.3 2301
    16(30/30) 4G1.5 10.3 141
    14(50/30) 4G2.5 11.2 183
    12(56/28) 4G4 13.1 275
    10(84/28) 4G6 14.8 355
    8(80/26) 4G10 17.1 529
    6(128/26) 4×16 19.5 755
    4(200/26) 4×25 22.5 1079
    2 (280/26) 4×35 25.7 1506
    1(400/26) 4×50 30.1 2037
    2/0(356/24) 4×70 35.0 2804
    3/0(485/24) 4×95 40.2 3741
    16(30/30) 5G1.5 11.2 167
    14(50/30) 5G2.5 12.7 233
    12(56/28) 5G4 14.0 310
    10(84/28) 5G6 16.0 431
    8(80/26) 5G10 18.1 619
    6(128/26) 5G16 21.5 928
    4(200/26) 5G25 25.7 1387
    2 (280/26) 5G35 29.8 1905
