    XV

    Application and Description

    These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, underground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage

    Standard and Approval

    IEC 60502-1 NP2363

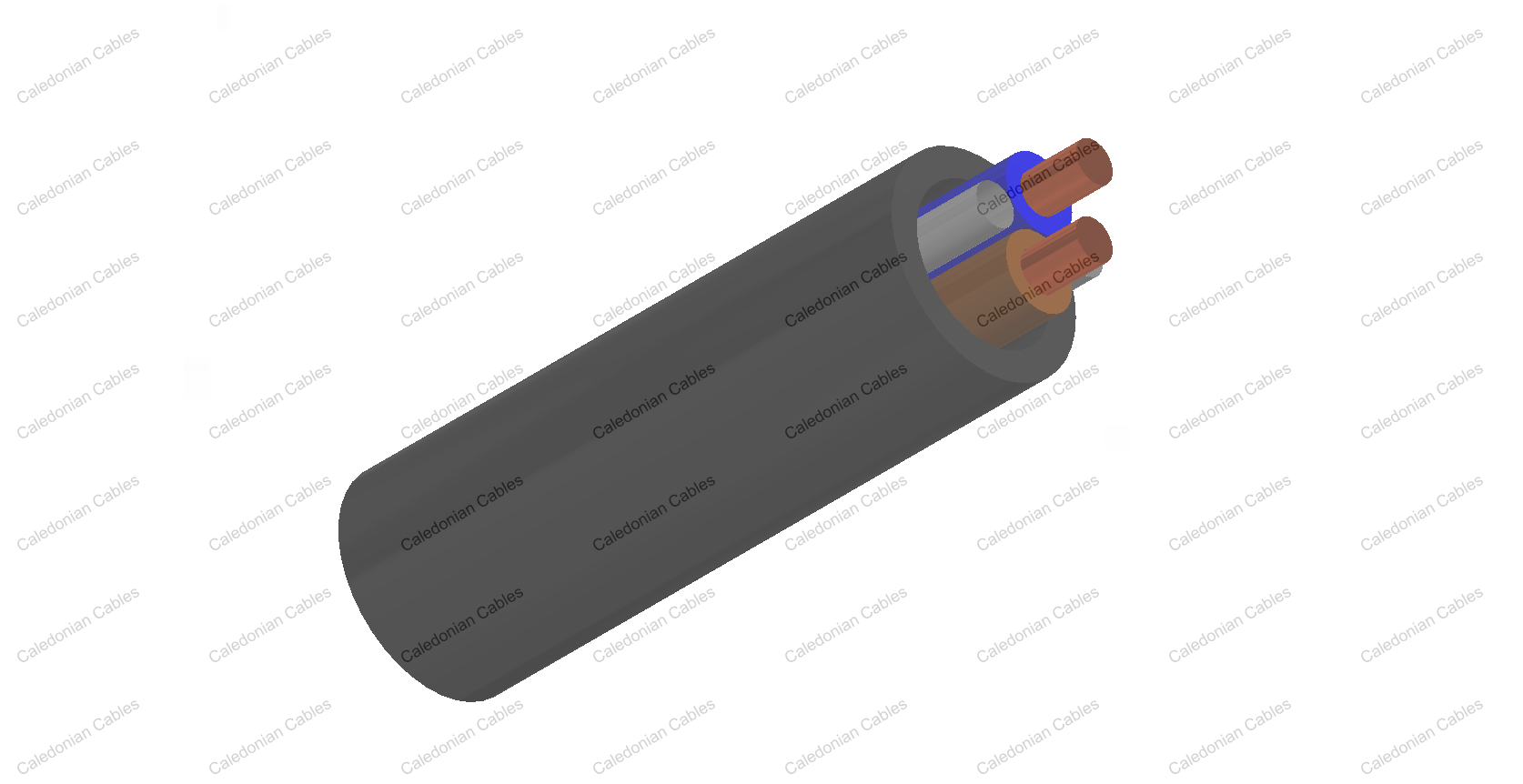

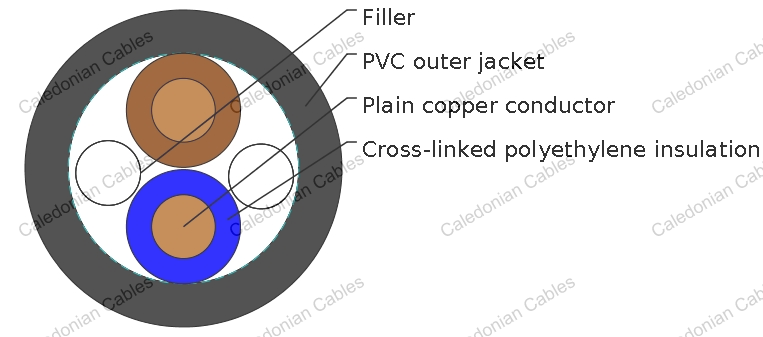

    Cable Construction

    Plain copper conductor, class 1(<6mmsq)/class2(>6mmsq) to NP 2363

    XLPE insulation

    Colour coded to HD 308

    Not fibrous and not hygroscopic filler(optional)

    Flexible PVC, type ST2 outer jacket

    Technical Characteristics

    Voltage Rating 600/1000V
    Test voltage 3500 volts
    Minimum bending radius 12 x Ø
    Operation temperature range -15°C to 90°C
    Short-circuit temperature 250°C
    Flame retardant IEC 60332.1
    Insulation resistance 1000 MΩ x km

    Cable Parameter

    No. of Cores x Nominal Cross Sectional Area Nominal Overall Diameter Nominal Weight
    # x mm² mm kg/km
    1 x 35 12.0 390
    1 x 50 13.5 515
    1 x 70 15.5 720
    1 x 95 17.5 975
    1 x 120 19.5 1225
    1 x 150 21.0 1490
    1 x 185 23.5 1855
    1 x 240 26.5 2385
    1 x 300 28.5 2995
    1 x 400 32.0 3905
    1 x 500 36.0 4835
    2 x 1.5 9.5 115
    2 x 2.5 10.0 140
    2 x 4 11.0 185
    2 x 6 12.0 255
    2 x 10 14.5 365
    2 x 16 18.5 610
    2 x 25 21.5 890
    2 x 35 23.5 1135
    2 x 50 26.5 1475
    3 x 1.5 10.0 130
    3 x 2.5 10.5 170
    3 x 4 11.5 225
    3 x 6 12.5 295
    3 x 10 15.0 455
    3 x 16 19.5 745
    3 x 25 23.0 1110
    3 x 35 25.0 1440
    3 x 50 28.0 1880
    4 x 1.5 10.5 155
    4 x 2.5 11.5 200
    4 x 4 12.5 275
    4 x 6 14.0 365
    4 x 10 16.5 560
    4 x 16 19.5 830
    3 x 25 + 1 x 16 24.0 1280
    3 x 35 + 1 x 16 26.0 1610
    3 x 50 + 1 x 25 29.5 2150
    3 x 70 + 1 x 35 33.5 3000
    3 x 95 + 1 x 50 38.0 4015
    3 x 120 + 1 x 70 43.5 5210
    3 x 150 + 1 x 70 47.0 6180
    3 x 185 + 1 x 95 52.5 7810
    3 x 240 + 1 x120 59.0 10000
    5 x 1.5 11.5 180
    5 x 2.5 12.5 240
    5 x 4 13.5 330
    5 x 6 15.0 465
    5 x 10 18.0 685
    5 x 16 21.0 1020
    3 x 25 + 2G16 25.5 1440
    3 x 35 + 2G16 27.5 1785
    3 x 50 + 2G25 31.5 2415
    3 x 70 + 2G35 36.0 3345
    3 x 95 + 2G50 40.5 4480
    3 x 120 + 2G70 46.5 5875
    3 x 150 + 2G70 49.5 6835
    3 x 185 + 2G95 55.5 8700
    3 x 240 + 2G120 62.5 11125
    6 x 1.5 11.5 215
    7 x 1.5 11.5 220
    8 x 1.5 13.2 265
    10 x 1.5 14.3 280
    12 x 1.5 14.7 320
    14 x 1.5 15.5 360
    16 x 1.5 16.2 405
    19 x 1.5 17.1 460
    24 x 1.5 19.8 570
    30 x 1.5 21.0 685
    37 x 1.5 22.6 820
    6 x 2.5 12.6 285
    7 x 2.5 12.6 295
    8 x 2.5 14.5 355
    10 x 2.5 15.8 385
    12 x 2.5 16.3 440
    14 x 2.5 17.1 500
    16 x 2.5 18.0 565
    19 x 2.5 18.9 650
    24 x 2.5 22.0 805
    30 x 2.5 23.3 975
    37 x 2.5 25.2 1180
