    XG (frs)/XZ1(frs)

    Application and Description

    These cables are specially designed to transmit electric power in the extrem conditions that there are in a large fire. assuring electric supply to emergency circuits. like signaling lights. fume extractors. acustic alarms. water pumps. etc. In case of fire. it does not emit toxic or corrosive gases. thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason. its use is recommended in public places such as: hospitals. schools. museums. airports. bus terminals. shops in general. tunnels. the underground. etc.. as well as in calculation centres. offices. production plants. laboratories. etc.

    Standard and Approval

    IEC60502-1

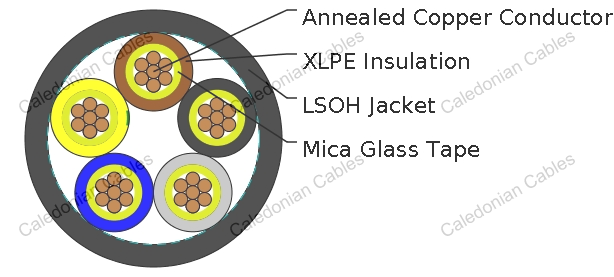

    Cable Construction

    Plain copper conductor, class 1(<6mm²) / class2(>6mm²) to NP 2363

    Mica tape+XLPE insulation

    Colour coded to HD 308

    Not fibrous and not hygroscopic filler(optional)

    Flexible LSOH outer jacket

    Technical Characteristics

    Voltage Rating 600/1000V
    Test voltage 3500 volts
    Minimum bending radius 12 x Ø
    Operation temperature range -15ºC to +90ºC
    Short-circuit temperature +250ºC
    Halogen free IEC 60754-1. EN 50267-2-1
    No corrosive gases IEC 60754-2. EN 50267-2-2
    No toxic gases NES 02-713. NFx70-100
    Low smoke density IEC 61034, EN 50268-2
    Flame retardant IEC 60332-1, EN 50265-2-1
    Non-flame propagating IEC 60332-3, EN 50266-2
    Insulation resistance 1000 MΩ x km

    Cable Parameter

    No. of Cores x Nominal Cross Sectional Area Nominal Overall Diameter mm Nominal Weight
    # ×mm² mm kg/km
    1 x10 9.5 150
    1 x16 10.5 210
    1 x25 12.0 310
    1 x35 13.0 405
    1 x50 14.5 530
    1 x70 16.5 805
    1 x95 18.0 995
    1 x120 20.0 1235
    1 x150 21.5 1500
    1 x185 24.0 1865
    1 x240 27.0 2400
    1 x300 29.5 3010
    2 x1.5 11.0 140
    2 x2.5 12.0 175
    2 x4 13.0 225
    2 x6 14.0 280
    2 x10 15.5 385
    2 x16 18.0 545
    2 x25 21.0 810
    3 x1.5 11.5 160
    3 x2.5 12.0 175
    3 x4 14.0 270
    3 x6 14.5 335
    3 x10 16.5 480
    4 x1.5 12.5 190
    4 x2.5 13.5 240
    4 x4 15.0 325
    4 x6 16.0 410
    4 x10 18.0 595
    4 x16 2.1 850
    3 x16+1 G 10 20.0 800
    3 x25+1x16 23.5 1205
    3 x35+1x16 25.5 1525
    3 x50+1x25 29.0 2050
    3 x70+1x35 35.5 2870
    3 x95+1x50 37.5 3875
    3 x120+1x70 42.5 4965
    5 x1.5 13.5 225
    5 x2.5 14.5 295
    5 x4 16.5 390
    5 x6 17.5 500
    5 x10 19.5 730
    5 x16 23.0 1055
    3 x25+2G16 25.5 1390
    3 x35+2G16 31.0 2320
    3 x50+2G25 27.0 3190
    3 x70+2G35 35.5 4525
    3 x95+2G50 41.5 5989
