    H07V-K

    Application and Description

    These are not suitable to be installed for laying in tubes, under and surface mounting of plaster and also in closed installation conduits. These are not allowed to install for direct laying on cable trays, channel or tanks. These types are permitted for the inner wiring of equipment, distributor and switchboards and also for protective laying to the lightings with a nominal voltage up to 1000 V alternating current or up to 750 V direct current against earth.

    Standard and Approval

    NP2356/3

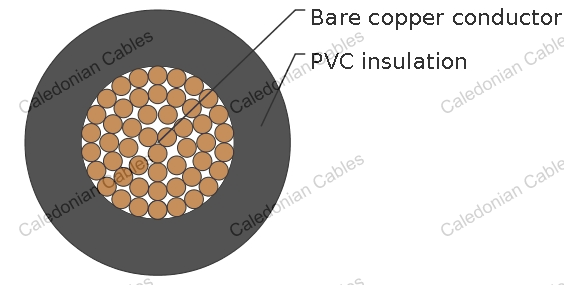

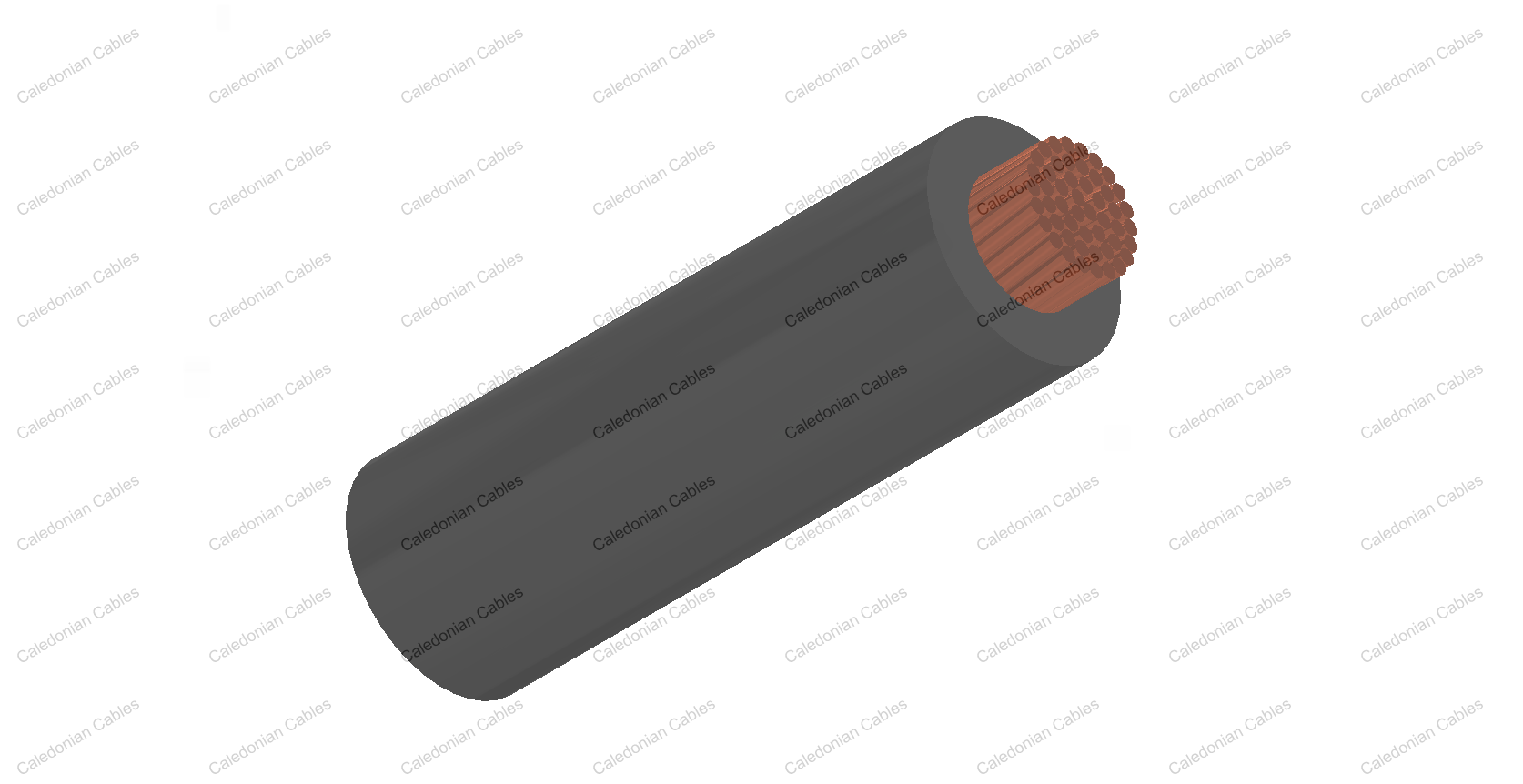

    Cable Construction

    Fine bare copper strands

    Strands to VDE-0295 Class-5, NP 2363 Class-5

    Special PVC TI1 core insulation

    Color coded to HD 308

    Technical Characteristics

    Working voltage 450/750V
    Test voltage 2500 volts
    Flexing bending radius 12.5 x Ø
    Static bending radius 12.5 x Ø
    Flexing Temperature -5ºC to +70ºC
    Static temperature -30ºC to +80ºC
    Flame retardant IEC 60332.1
    Insulation resistance 100 MΩ x km

    Cable Parameter

    No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Overall Diameter Nominal Copper Weight Nominal Weight
    # x mm² mm mm kg/km kg/km
    1x 1.5 0,7 3.1 14.4 20
    1x 2.5 0,8 3.6 24.0 31
    1x 4 0,8 4.3 38.0 48
    1x 6 0,8 4.9 58.0 69
    1x 10 1,0 6.4 96.0 121
    1x 16 1,0 8.1 154.0 211
    1x 25 1,2 9.8 240 303
    1x 35 1,2 11.1 336 417
    1x 50 1,4 13.1 480 539
    1x 70 1,4 15.5 672 730
    1x 95 1,6 17.2 912 900
    1x 120 1,6 19.7 1152 1135
    1x 150 1,8 21.3 1440 1410
    1x 185 2,0 23.4 1776 1845
    1x 240 2,2 27.1 2304 2270
